• Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A
1 1

Blue Sea Systems

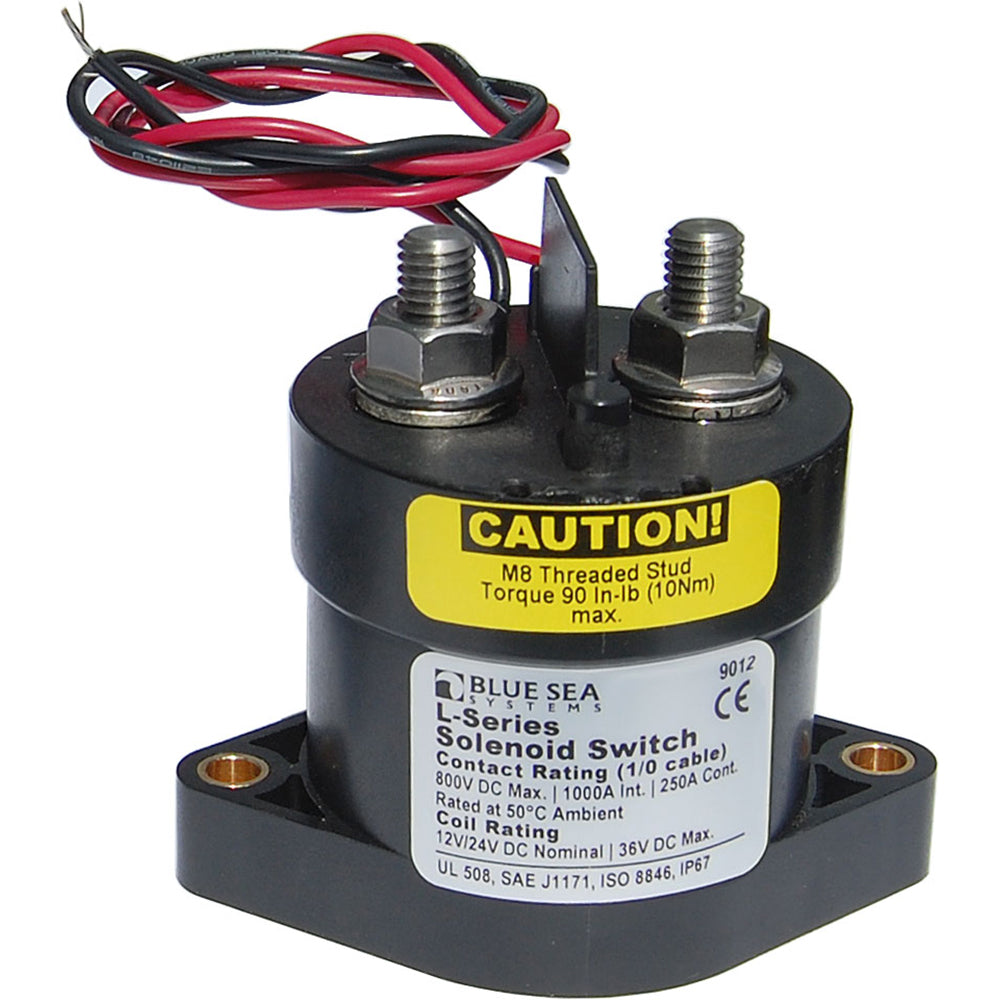

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A

OM-BLUESEA-9012LSOLENOID-9012

$212.72
$333.99 $212.72
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

450aContinuous Amperage

Control an onboard electrical circuit from a remotely mounted ON-OFF switch with the Blue Sea Systems 9012 L Solenoid Switch. Built for 12 or 24 VDC systems, it has ignition protection for installation aboard gasoline-powered boats.

Key features

  • A low-amperage ON-OFF control switch can be mounted wherever operation is needed.
  • Hermetically sealed, vaporproof contacts provide an enclosed switching connection.
  • Ignition protection allows installation on gasoline-powered boats.
  • Integrated coil control limits heat and current draw during operation.
  • Supports either 12 or 24 VDC onboard systems.

Specifications

  • Brand: Blue Sea Systems
  • Model: 9012 L Solenoid Switch
  • Nominal voltage: 12 / 24 VDC
  • Input voltage: 9–36 VDC
  • Coil function: Normally open
  • Contact form: SPST-NO
  • Control circuit connection: 20 AWG tinned wire
  • Mounting: #10
  • Current while changing state: 3.6A
  • Operating current: 0.13A at 12V / 0.07A at 24V
  • Continuous rating: 250A with 1/0 wire; 300A with 2/0 wire; 400A with 4/0 wire; 450A with 2 x 2/0 wire
  • Intermittent rating, 5 minutes: 275A with 1/0 wire; 400A with 2/0 wire; 500A with 4/0 wire; 600A with 2 x 2/0 wire
  • Cranking rating, 30 seconds: 1,000A DC
  • Inrush rating: 2,000A for 0.25 second, 10 repeats
  • Switching cycles: 1,000,000
  • Terminal stud hardware: Serrated flange nut
  • Terminal stud length: 0.66 in. / 16.76mm
  • Terminal stud size: 5/16 in. / M8
  • Terminal stud torque: 90 in-lb / 10.17 Nm
  • Weight: 1.00 lb. / 0.45kg

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Continuous Amperage450a
BrandBlue Sea Systems
Manufacturer part #9012
UPC632085090128
Boxed dimensions7 x 4 x 3 in
Shipping weight1.0 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
