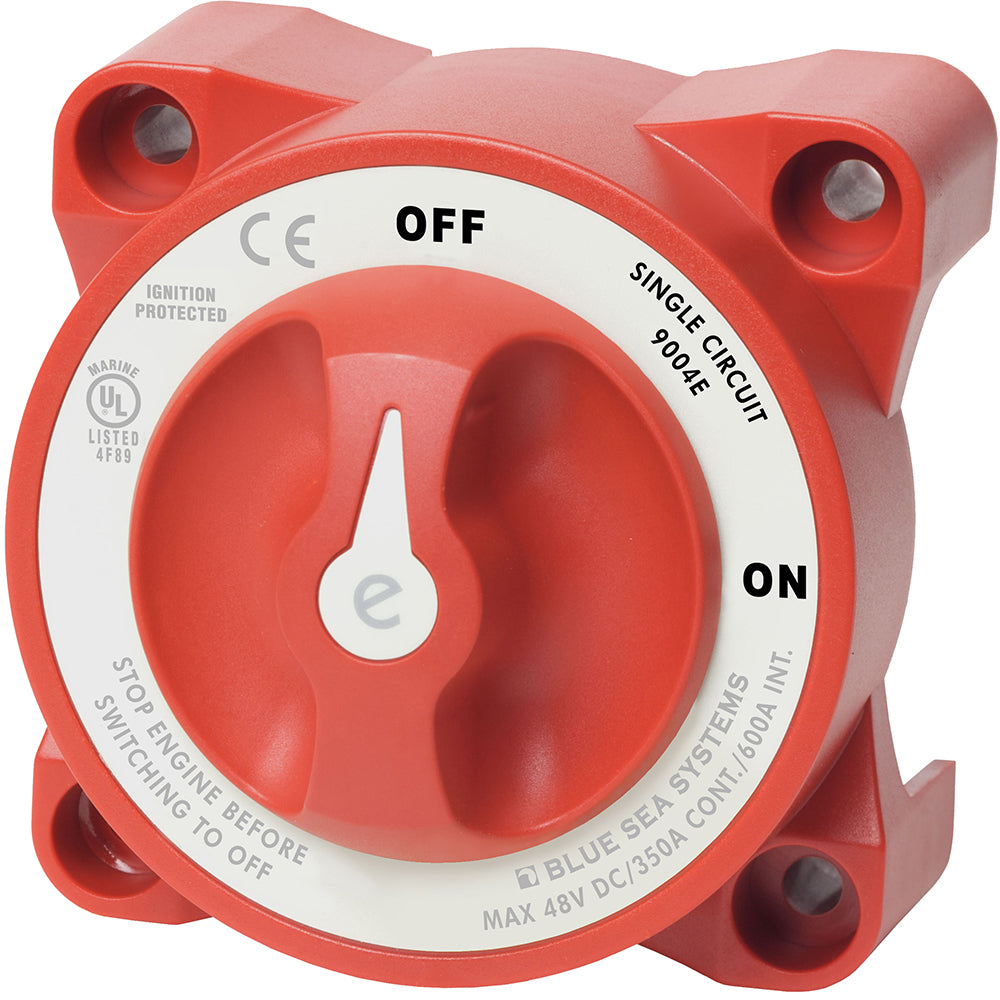

Blue Sea 9004e e-Series Battery Switch Single Circuit ON/OFF w/Alternator Field Disconnect
Blue Sea 9004e e-Series Battery Switch Single Circuit ON/OFF w/Alternator Field Disconnect
SKU:OM-BLUESEA-9004EESERIES-9004E
Low stock: 1 left
Couldn't load pickup availability
Overview
The Blue Sea Systems 9004e is an e-Series single-circuit ON/OFF battery switch with alternator field disconnect. It is built for marine electrical installations where a dedicated battery switch is needed with surface or rear panel mounting.
The switch uses tin-plated copper studs and is ignition protected for installation aboard gasoline powered boats. Its tactile knob position helps identify the setting by feel.
- Model: 9004e e-Series battery switch
- Switch type: single circuit ON/OFF
- Alternator field disconnect: included
- Certifications and standards: CE marked and meets ABYC requirements for battery switches
- Ignition protection: safe for installation aboard gasoline powered boats
- Mounting: case design allows surface or rear panel mounting

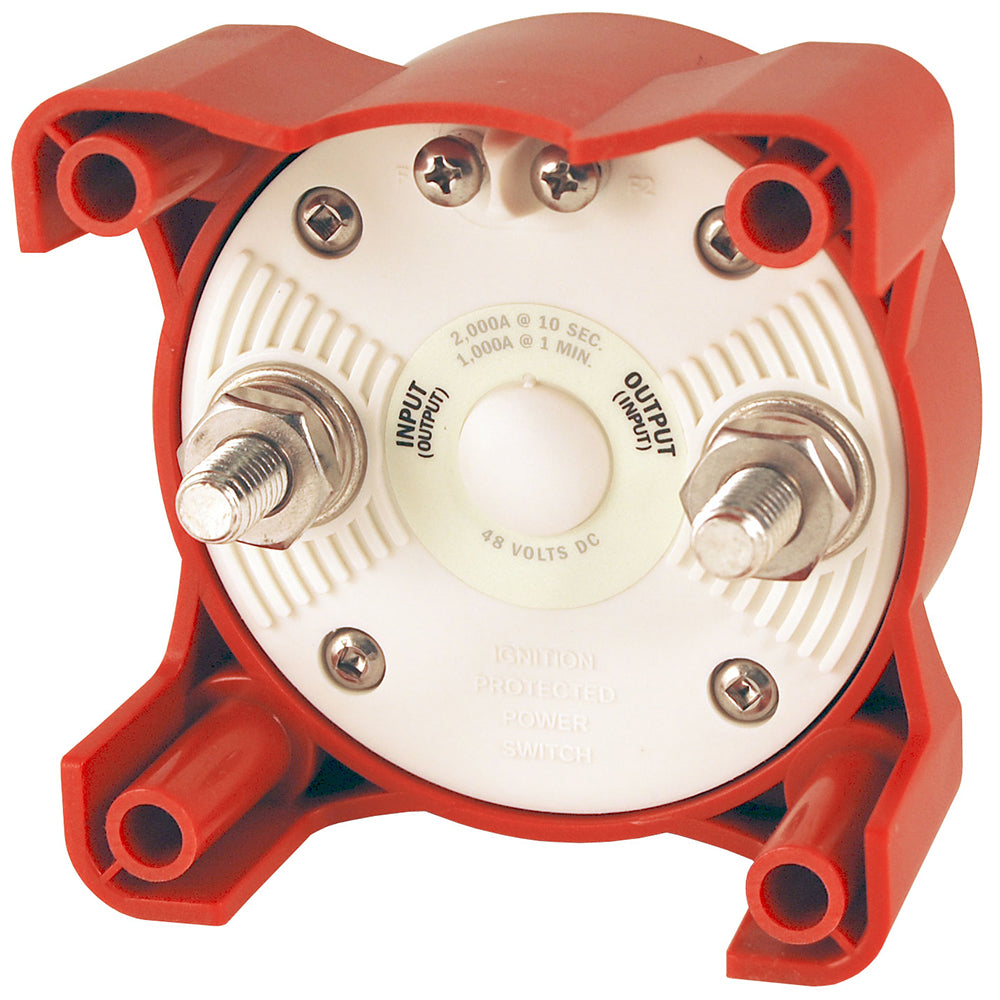

- Studs: 3/8"-16 tin-plated copper
- Terminal compatibility: accepts 3/8" and M10 ring terminals
- Stud length: 7/8" (22.22mm) to accept multiple cable terminals
- Control feel: tactile textures indicate knob position by touch
- Warning: this product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
Specifications
| Positions | 1 |
|---|---|
| AFD | Yes |
| Lockable | No |
| Brand | Blue Sea Systems |
| Manufacturer part # | 9004E |
| UPC | 632085900458 |
| Boxed dimensions | 10 x 7 x 5 in |
| Shipping weight | 0.92 lb |
| Country of origin | UNITED STATES |
