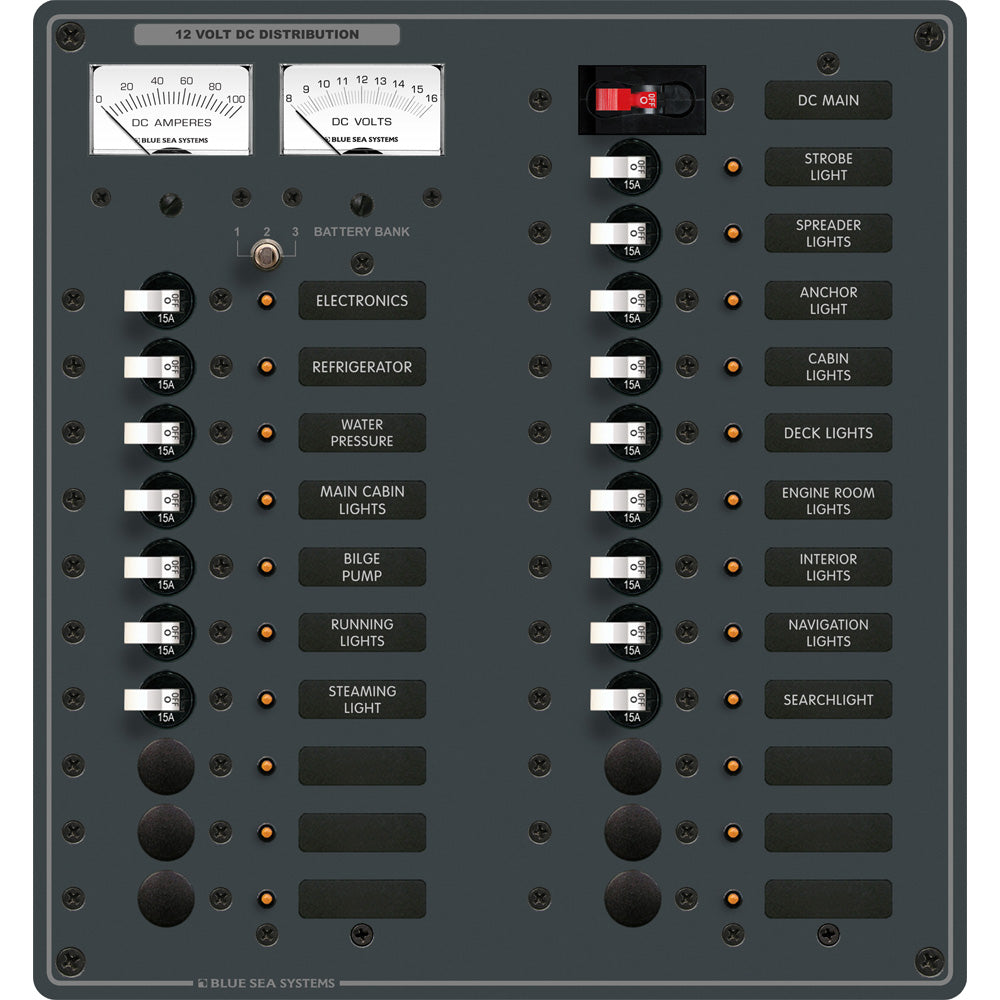

Blue Sea 8380 DC Main + 22 Position

The Blue Sea Systems 8380 is a DC main distribution panel with 22 circuit positions for marine electrical control. It arrives pre-wired with installed positive, negative, and grounding buses, plus included meters and breakers for a complete panel setup.

• Configuration: DC main panel with 22 positions
• Included breakers: (16) 15A single pole circuit breakers and (1) 100A C-Series main circuit breaker
• Included meters: (1) 8028 DC Micro Voltmeter and (1) 8250 DC Analog Micro Ammeter
• Switches: White switches with ON indicating LEDs in all circuit positions
• Meter panels: Include a toggle switch for mounting up to 3 battery banks
• Voltage upgrade: Analog meter panels are owner upgradable to 24 volts with 8240 or 8243 18-32V DC meters
• Labeling: Backlit circuit label positions on standard panels; includes 30 common Large Format Panel Labels
• Construction: Heavy 1/8 inch aluminum 5052 alloy with two-part polyurethane slate gray finish
• Corrosion protection: MIL-C-5541C or equivalent immersion undercoating
• Mounting: Industry standard height and width with countersunk mounting holes throughout
• Documentation: Detailed installation instructions and cutout template included
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects or other reproductive harm.
