• Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey
1 1

Blue Sea Systems

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey

OM-BLUESEA-8261WATERPROOF-8261

$216.24
$339.99 $216.24
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

ResistantWaterproof
DCAC/DC
8Max Breaker Quantity
12/24vVoltage

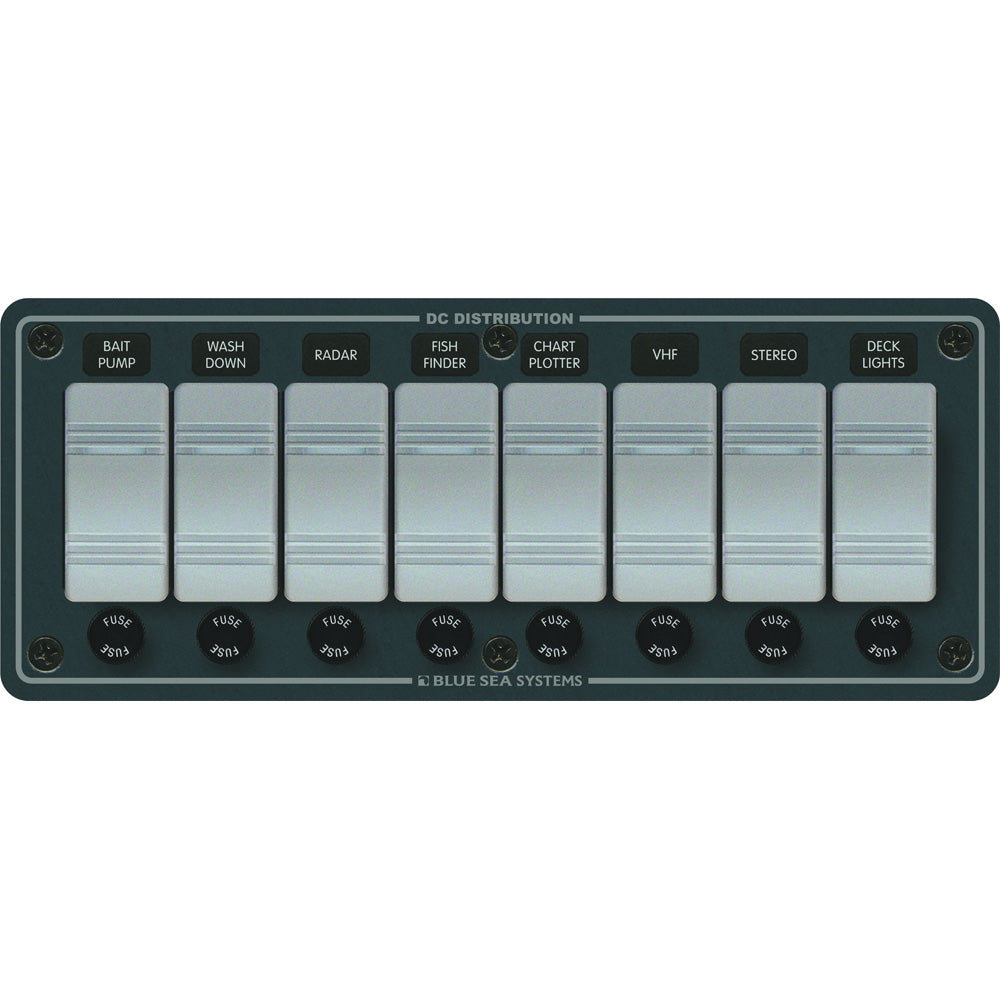

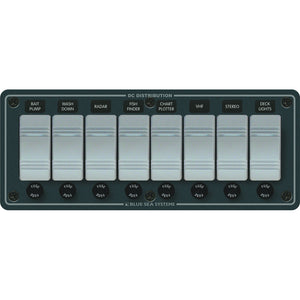

The Blue Sea Systems 8261 is an 8-position waterproof electrical panel for above-deck locations such as flybridges and open cockpits. It arrives wired for installation and uses gray Contura off-on switches with built-in ON indicator LEDs.

  • Positions: 8
  • Nominal voltage: 12V / 24V
  • Panel cumulative rating: 90A
  • Switch rating: 20A @ 12V DC / 15A @ 24V DC
  • Dimensions: 3.75" H x 9.37" W x 3" D
  • Weather resistance: water resistant for salt spray, rain, hose washdowns, and momentary immersion normally encountered above deck
  • Finish: two-part polyurethane slate gray finish
  • Construction details: countersunk mounting holes, watertight mounting gasket, and Mil-Spec immersion chemical treatment for corrosion protection
  • Included: eight 5021 panel mount AGC/MDL fuse holders, one 8214 black 60-label set, and eight 8230 Contura SPST gray off-on switches
  • Warning: can expose users to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

WaterproofResistant
AC/DCDC
Max Breaker Quantity8
Voltage12/24v
BrandBlue Sea Systems
Manufacturer part #8261
UPC632085082611
Boxed dimensions10 x 10 x 7 in
Shipping weight5.6 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
