• Blue Sea 8101 ELCI GFCI Panel AC 5 Position
1 1

Blue Sea Systems

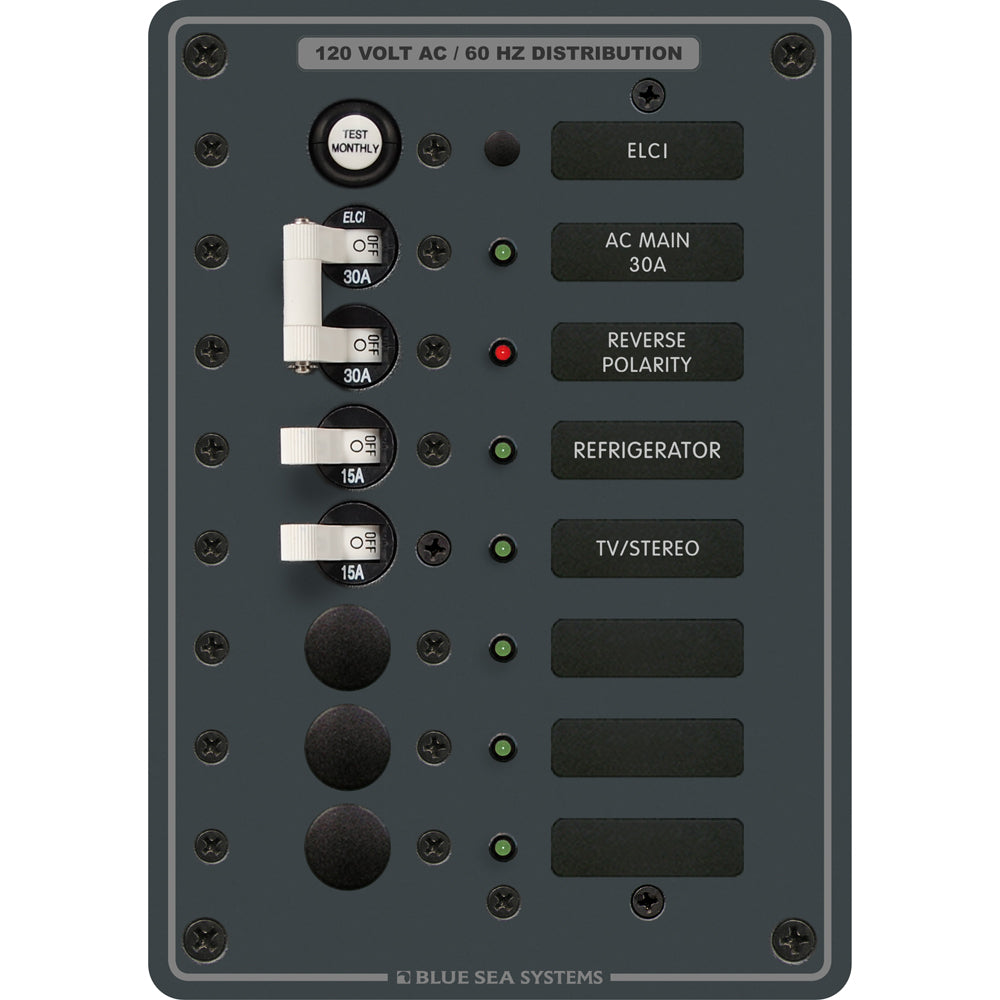

Blue Sea 8101 ELCI GFCI Panel AC 5 Position

Blue Sea 8101 ELCI GFCI Panel AC 5 Position

OM-BLUESEA-8101ELCIGFCI-8101

$575.42
$946.99 $575.42
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ACAC/DC
5Max Breaker Quantity
120vVoltage

Bring shore power protection and circuit status indication together with the Blue Sea Systems 8101 AC panel. For boats using 120V AC, its ELCI main breaker protects against overcurrent and leakage across the boat's shore power system in accordance with ABYC E-11.

Key features

  • A 30A double-pole ELCI main breaker combines overcurrent protection with a 30mA leakage trip.
  • A red reverse-polarity LED gives a visible indication of reversed polarity.
  • Backlighting at every circuit label position helps you read circuit names.
  • ON indicator LEDs let you check circuit status at the panel.

Specifications

  • Model: 8101
  • Positions: 5
  • Nominal voltage: 120V AC
  • Main breaker: 30A AC ELCI, double pole
  • Leakage trip current: 30mA
  • Protection standard: ABYC E-11
  • Height: 5.25 inches (133.35mm)
  • Width: 7.50 inches (190.5mm)
  • Depth: 3.50 inches (88.9mm)
  • Weight: 2.25lb (1.02kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

AC/DCAC
Max Breaker Quantity5
Voltage120v
BrandBlue Sea Systems
Manufacturer part #8101
UPC632085081010
Boxed dimensions12 x 9 x 5 in
Shipping weight2.55 lb
Country of originUNITED STATES
