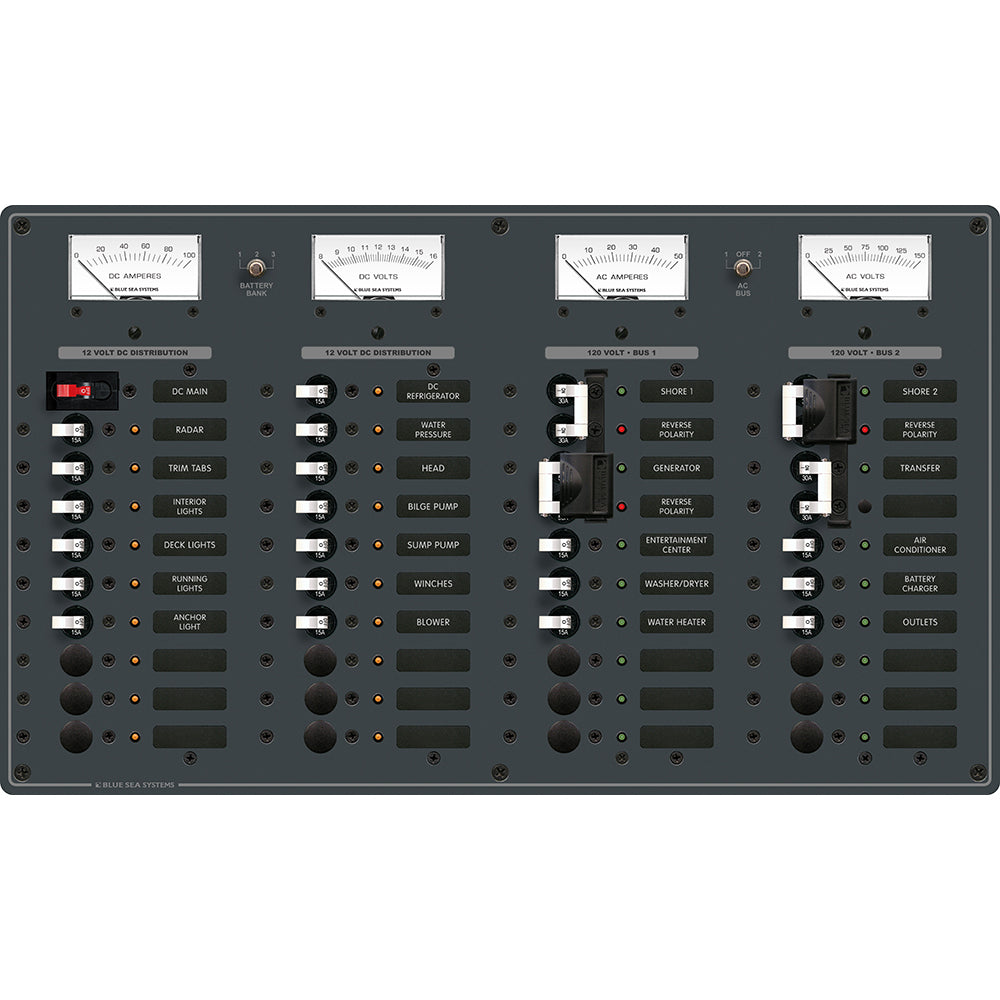

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

The Blue Sea Systems 8086 is a combined AC/DC toggle circuit breaker panel with white switches for marine electrical distribution. It is pre-wired with installed buses, LEDs and label backlighting, giving installers a panel configured for 3 AC sources plus 12 AC positions and a DC main plus 19 DC positions.

• Model: 8086
• Panel type: AC 3 sources plus 12 positions / DC main plus 19 positions
• Switch color: White
• Labels: Includes 30 common AC labels and 30 common DC labels
• Wiring: AC and DC buses are installed and fully pre-wired
• Lighting: Label backlighting and LEDs are pre-installed
• Maximum amperage: 100 amperes DC and 50 amperes AC
• AC voltage: 120 volts AC
• DC voltage: 12 volts DC
• AC features: Two separate AC load groups with a transfer switch to combine into one load group
• Meter selection: Switch allows the ammeter and voltmeter to read either AC load group
• AC indicators: Reverse polarity indicators on both AC load groups
• AC options: Ready for optional 4031 AC Isolation Cover, 9353 0-150 volt AC voltmeter and 9630 0-50 amp AC ammeter
• DC main protection: 100 amp C-Series circuit breaker provides DC branch circuit protection and switching
• DC meters: 8003 8-16 volt DC voltmeter and 8017 0-100 amp DC ammeter
• AC circuit breakers: Three 30A, one 50A and six 15A
• DC circuit breakers: One 100A and thirteen 15A
• ABYC note: Combined AC/DC panels require an AC insulating cover to meet ABYC Standards
