Overview

2Max Breaker Quantity
ACAC/DC
120vVoltage

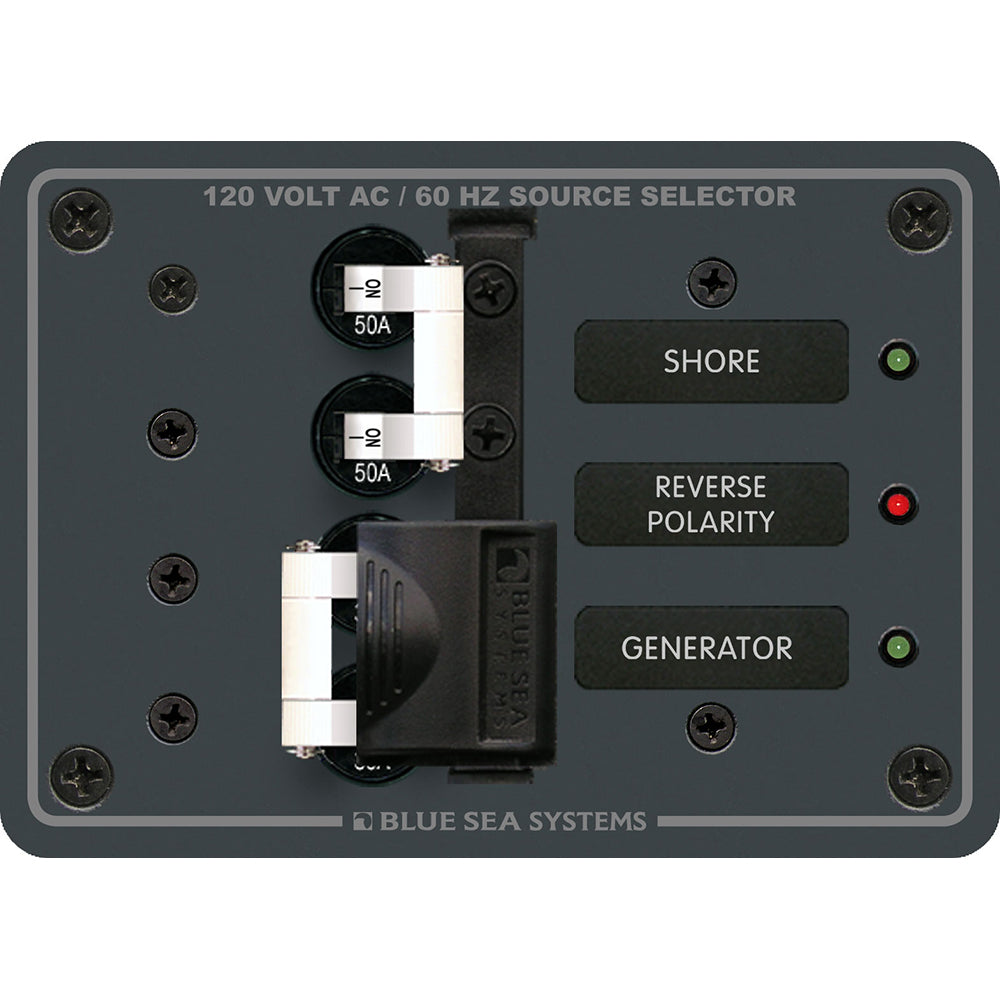

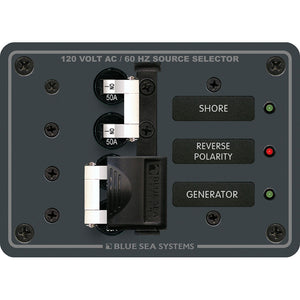

The Blue Sea Systems 8061 is an AC toggle source selector panel for 120V AC systems rated up to 50 amperes. It is built to select between two AC sources while preventing both sources from being connected at the same time.

  • Part number: 8061
  • Source selection: 2 sources
  • Voltage: 120V AC nominal
  • Maximum panel amperage: 50 amperes
  • Breakers: double-pole AC main circuit breakers with installed lockout slide
  • Indication: red reverse-polarity LED and on LEDs in all circuit positions
  • Wiring: hot, neutral, and safety ground buses installed and fully pre-wired
  • Labels: backlit circuit label positions on standard panels; 8031 basic AC panel label set included
  • Size: 3.75 inches high x 5.25 inches wide
  • Weight: 1.84 lb
  • Includes: two 7242 A-Series white toggle double-pole 50A circuit breakers, 8031 label set, 8034 green 120V AC LED, and 8066 red 120V AC LED
  • Warning listed: can expose users to di(2-ethylhexyl)phthalate (DEHP), a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Max Breaker Quantity2
AC/DCAC
Voltage120v
BrandBlue Sea Systems
Manufacturer part #8061
UPC632085080617
Boxed dimensions9 x 7 x 5 in
Shipping weight1.4 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
