• Blue Sea 8053 Slate Grey - 6 Position - Vertical
1 1

Blue Sea Systems

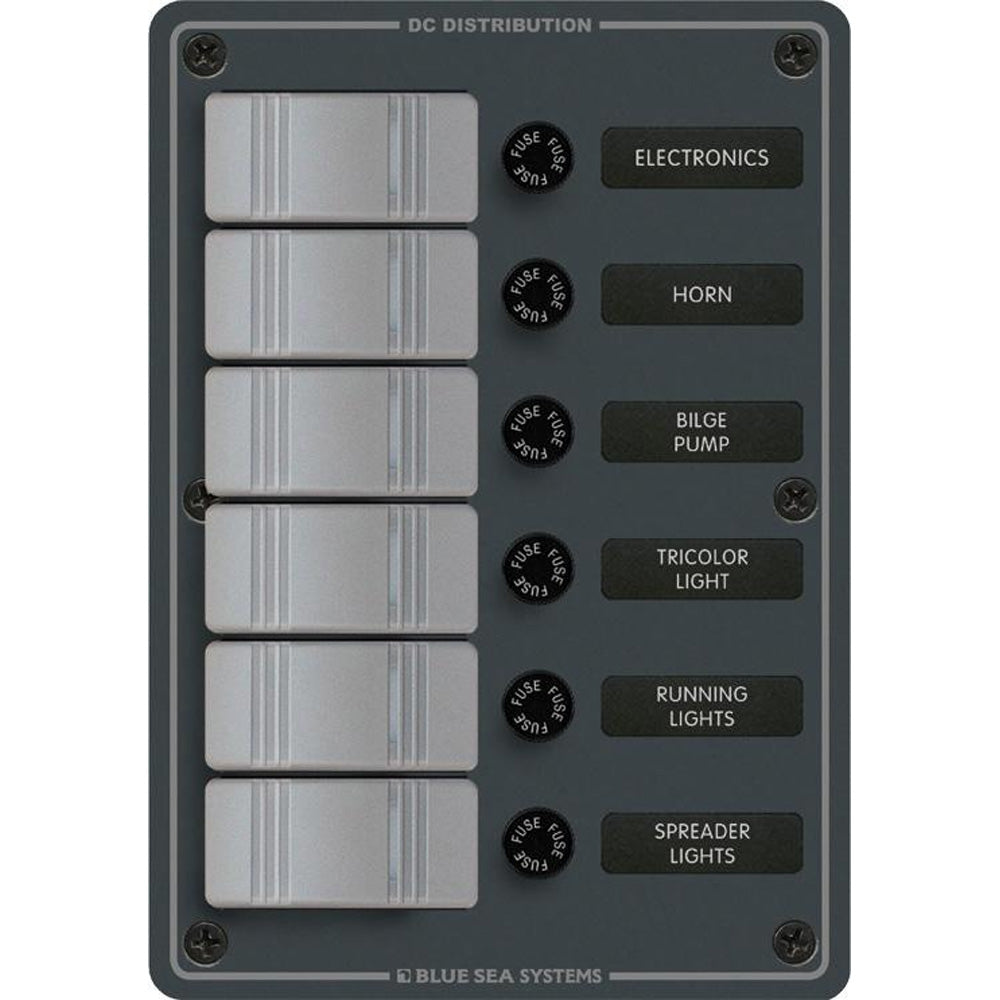

Blue Sea 8053 Slate Grey - 6 Position - Vertical

Blue Sea 8053 Slate Grey - 6 Position - Vertical

OM-BLUESEA-8053SLATEGREY-8053

$147.87
$220.99 $147.87
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ResistantWaterproof
DCAC/DC
6Max Breaker Quantity
12/24vVoltage

The Blue Sea Systems 8053 is a vertical 6-position slate grey DC switch panel for flybridge and open cockpit installations. It is wired for 12V or 24V DC systems and built for above-deck exposure such as rain, salt spray, hose washdowns, and momentary immersion.

  • Positions: 6
  • Orientation: Vertical
  • Color: Slate grey two-part polyurethane finish
  • Nominal voltage: 12V / 24V DC
  • Panel cumulative rating: 45A
  • Switch rating: 20A at 12V DC / 15A at 24V DC
  • Dimensions: 7.5" H x 5.25" W x 3" D
  • Switches: ON-OFF Contura switches with ON indicating LEDs embedded in the switches
  • Mounting: Watertight mounting gasket and countersunk mounting holes included
  • Corrosion protection: Mil-Spec chemical treatment by immersion
  • Included: Six 5021 panel mount AGC/MDL fuse holders, one 8030 basic DC panel label set with 30 labels, and six 8230 grey SPST OFF-ON Contura switches
  • Note: Waterproof panel labels are not backlit
  • Warning: This product can expose you to chemicals including DEHP, known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

WaterproofResistant
AC/DCDC
Max Breaker Quantity6
Voltage12/24v
BrandBlue Sea Systems
Manufacturer part #8053
UPC632085080532
Boxed dimensions10 x 10 x 7 in
Shipping weight5.6 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
