Overview

6Max Breaker Quantity
ACAC/DC
120vVoltage

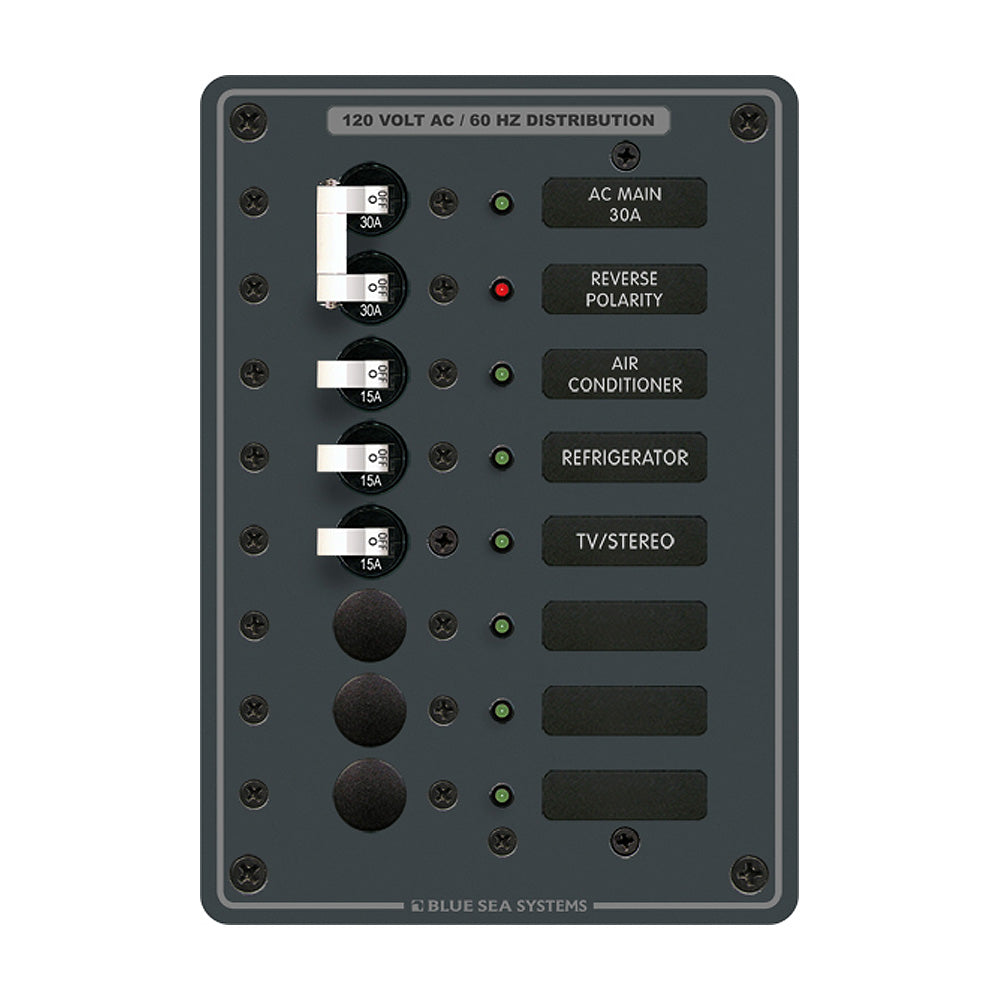

The Blue Sea Systems 8027 is an AC main plus 6-position breaker panel with white switches for 120V AC marine electrical systems. It comes pre-wired with hot, neutral, and safety ground buses installed.

The panel includes illuminated circuit positions, ON indicator LEDs, and a red reverse-polarity warning LED. Breakers, LEDs, and an AC label set are included.

  • Model: 8027
  • Product type: AC main plus 6-position breaker panel
  • Switch color: White
  • Positions: 6
  • Nominal voltage: 120V AC
  • Dimensions: 7.5" high x 5.25" wide
  • Wiring: Hot, neutral, and safety ground buses installed and fully pre-wired
  • Indicators: Red reverse-polarity LED and ON LEDs in all circuit positions
  • Backlighting: Circuit label positions are backlit on standard panels with no kit required
  • Included: 8031 Basic AC Panel Label Set with 30 labels
  • Included LEDs: Seven 8034 green 120V AC LEDs and one 8066 red 120V AC LED
  • Included breakers: Three 7210 A-Series white toggle single pole 15A branch circuit breakers and one 7238 A-Series white toggle double pole 30A main circuit breaker
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Max Breaker Quantity6
AC/DCAC
Voltage120v
BrandBlue Sea Systems
Manufacturer part #8027
UPC632085080273
Boxed dimensions12 x 7 x 5 in
Shipping weight2.0 lb
Country of originUNITED STATES
