Overview

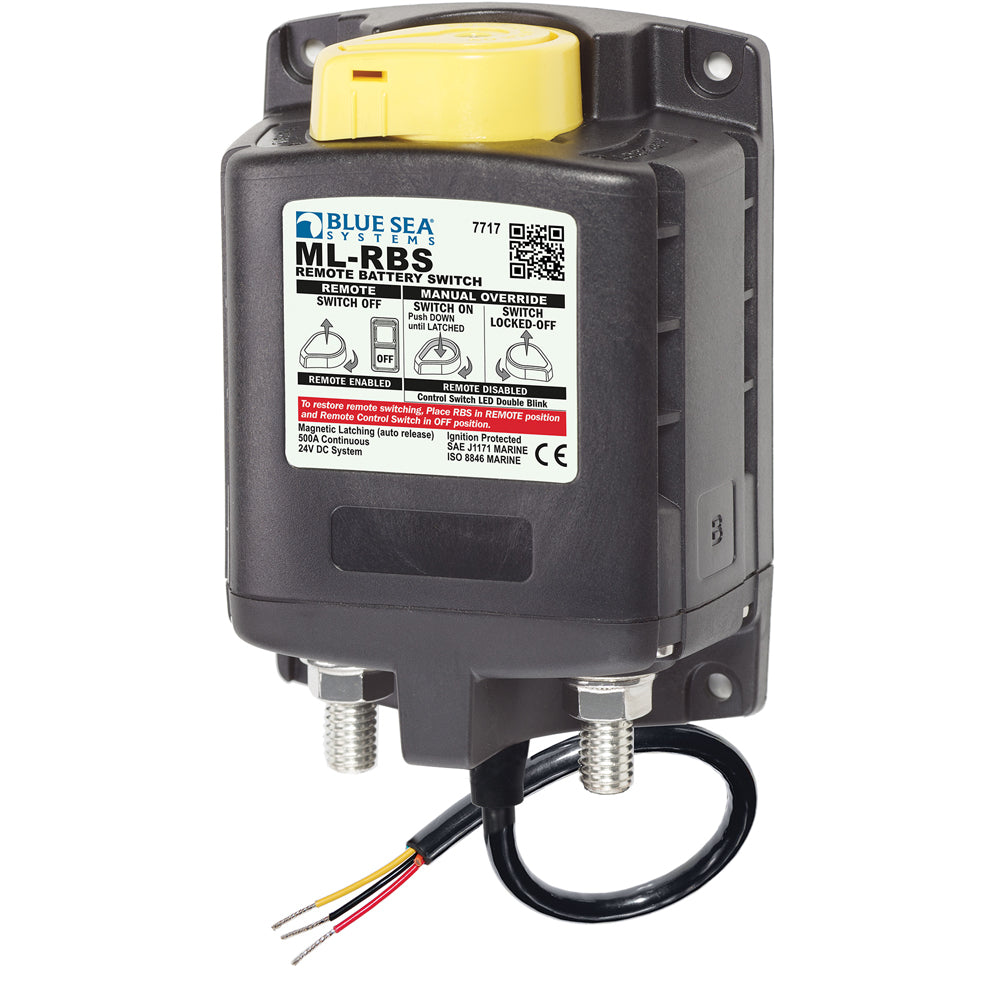

For boat owners managing a 24V battery circuit, the Blue Sea Systems 7717 ML-RBS combines remote switching with hands-on control. The auto-releasing coil serves normally open relay applications, and a manual override remains available with or without electrical power.
Key features

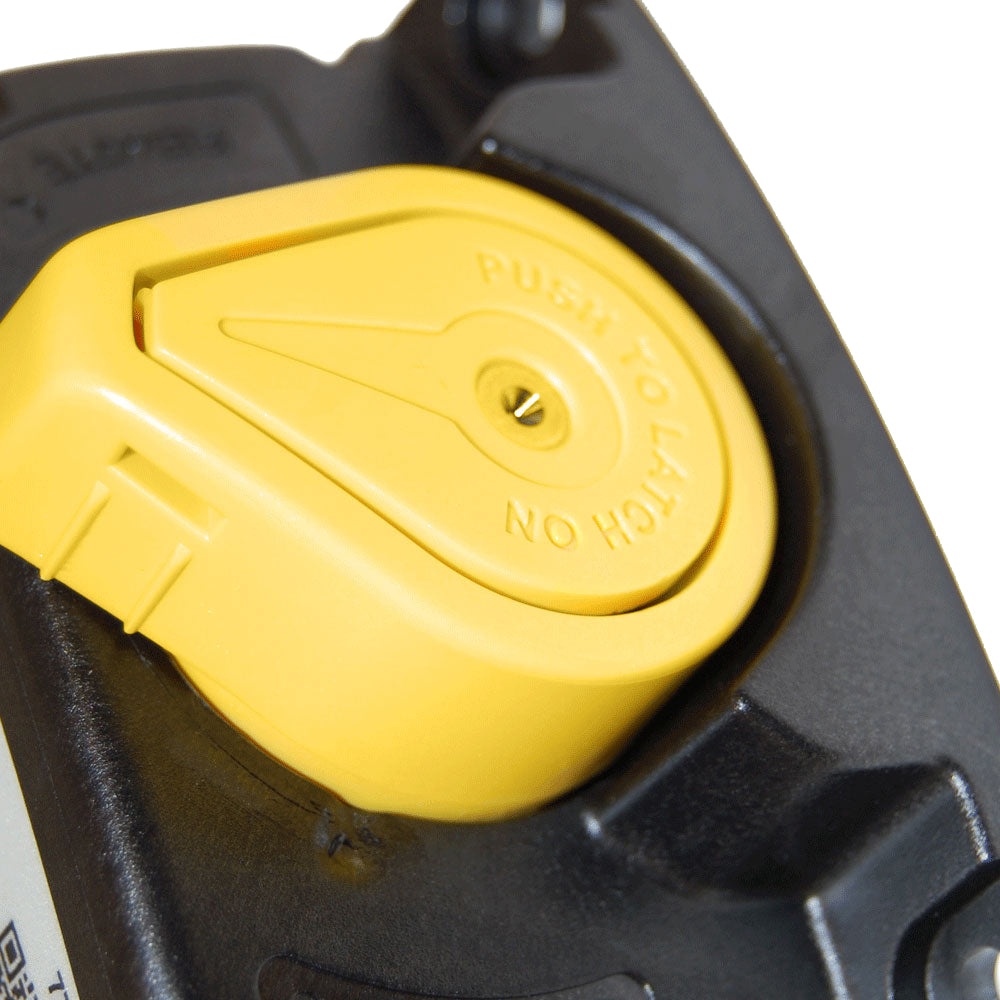

- A manual control knob lets you operate the switch locally and lock it OFF during servicing.
- Support for SPST and SPDT control switches accommodates either remote control type.
- Connect an optional LED to the status output to see the switch state remotely.
- Corrosion-resistant, tin-plated copper studs conduct current and accommodate multiple cable terminals.
- Silver alloy contacts provide dependable contact performance when switching live loads.
- Circuit label recesses provide a place to identify the switch's purpose.
Specifications
- Model: 7717 ML-RBS
- Nominal voltage: 24V DC
- Manual control: Yes
- Coil function: Auto releasing
- Switching configuration: SPST
- Control circuit connection: Tinned wire
- Control circuit voltage: 20.2–32.9V DC
- Operating current: 8mA OFF; 13mA ON
- Current when changing state: <4A for 40ms
- Continuous rating: 500A
- Intermittent rating: 700A for 5 minutes
- Cranking rating: 2,500A for 10 seconds; 1,100A for 1 minute
- Live current switching: 300A at 12V DC, 10,000 cycles
- Operating temperature: -10°C to 50°C
- Cable size to meet ratings: 2x (4/0)
- Mounting: #10
- Master control switch capability: Yes
- Mechanical endurance: 100,000 cycles
- Switching cycles: 100,000
- Contact material: Silver alloy
- Terminal stud material: Tin-plated copper
- Terminal stud size: 3/8-16 (M10)
- Terminal stud length: 0.875 inches (22.23mm)
- Terminal ring diameter clearance: 1.18 inches (29.97mm)
- Terminal stud torque: 140 in-lb (15.82Nm)
- Weight: 1.75lb (0.79kg)
Good to know
An optional LED is required to use the output for remote switch-state indication.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
Specifications
| Lockable | Yes |
|---|---|
| Continuous Amperage | 500a |
| Brand | Blue Sea Systems |
| Manufacturer part # | 7717 |
| UPC | 632085077143 |
| Boxed dimensions | 12 x 7 x 3 in |
| Shipping weight | 2.2 lb |
| Country of origin | MEXICO |
