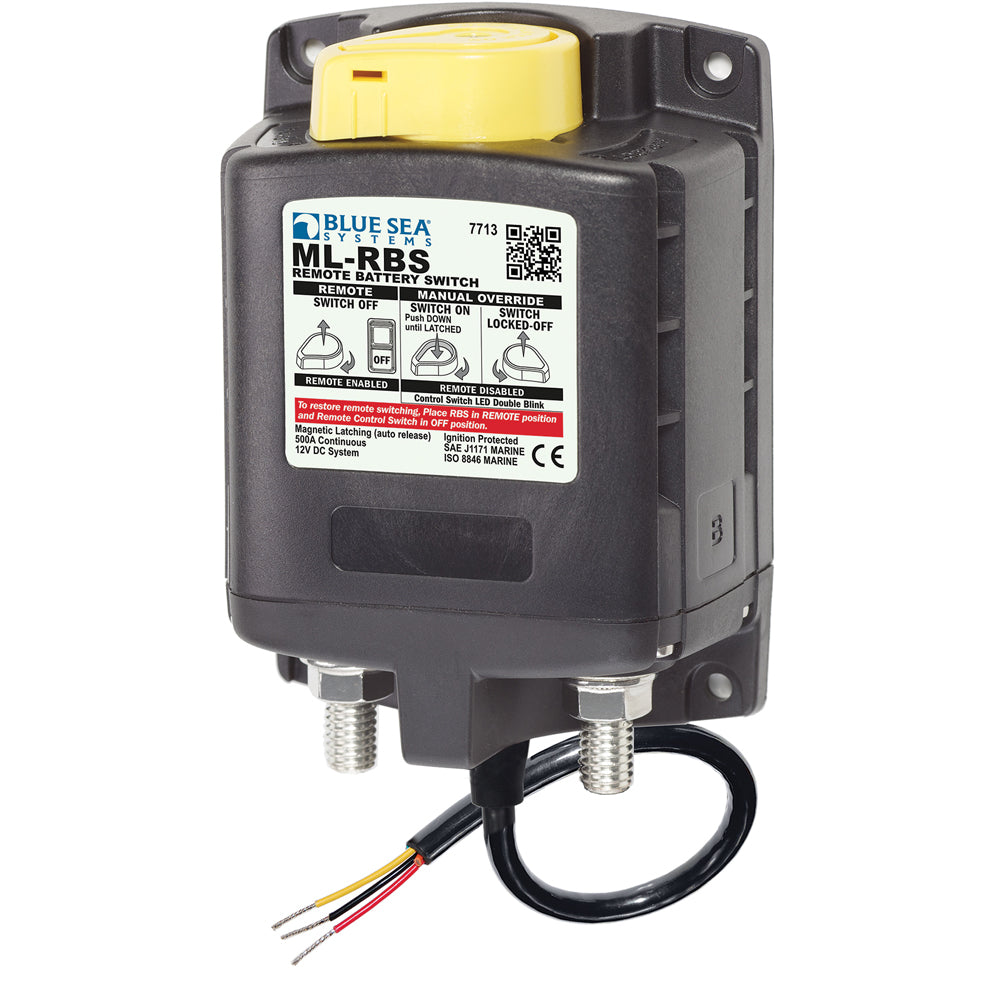

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V
Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V
SKU:OM-BLUESEA-7713MLRBS-7713
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
Control a boat's 12V battery circuit remotely with the Blue Sea Systems 7713 ML-RBS switch. Its auto-releasing operation suits applications requiring a normally open relay, while the manual knob lets you operate it even without power.
Key features

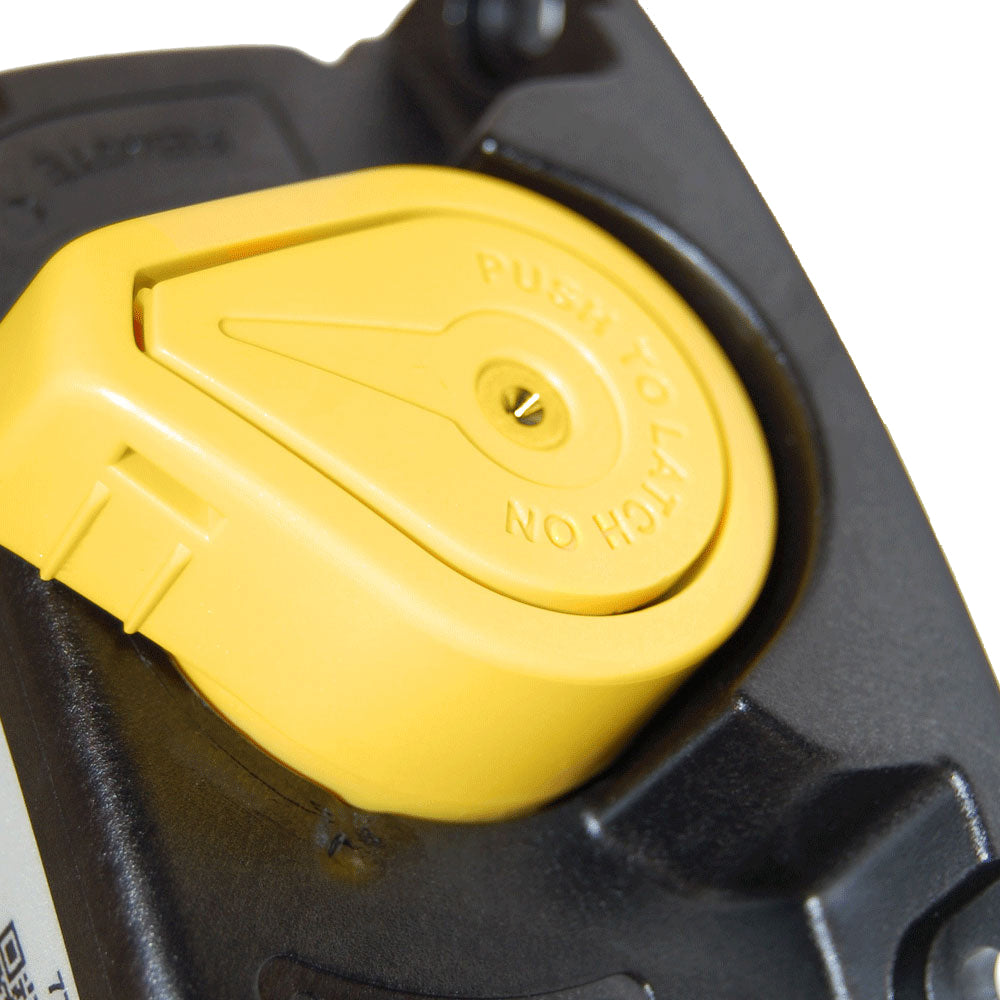

- Manual override includes a LOCKED OFF setting for servicing.
- SPST or SPDT control switch compatibility gives you a choice of remote control arrangements.
- An LED output supports remote switch-state indication when an optional LED is fitted.
- Tin-plated copper studs provide conductivity and corrosion resistance, with length to accommodate multiple cable terminals.
- Silver alloy contacts support reliable switching of live loads.
- Recessed label areas let you identify the connected circuit.
Specifications
- Model: 7713 ML-RBS
- Nominal voltage: 12V DC
- Coil function: Auto releasing
- Switching configuration: SPST
- Control circuit connection: Tinned wire
- Control circuit voltage: 10.1–16.5V DC
- Operating current: 8mA OFF; 13mA ON
- Current when changing state: <7A for 40ms
- Continuous rating: 500A
- Intermittent rating: 700A for 5 minutes
- Cranking rating: 2,500A for 10 seconds; 1,100A for 1 minute
- Live current switching: 300A at 12V DC, 10,000 cycles
- Operating temperature: -10°C to 50°C
- Cable size to meet ratings: 2x (4/0)
- Mounting: #10
- Master control switch capability: Yes
- Mechanical endurance: 100,000 cycles
- Switching cycles: 100,000
- Contact material: Silver alloy
- Terminal stud material: Tin-plated copper
- Terminal stud size: 3/8-16 (M10)
- Terminal stud length: 0.875 inches (22.23mm)
- Terminal ring diameter clearance: 1.18 inches (29.97mm)
- Terminal stud torque: 140 in-lb (15.82Nm)
- Weight: 1.75lb (0.79kg)
Good to know
Remote visual status indication requires an optional LED connected to the switch's LED output.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
Specifications
| Lockable | Yes |
|---|---|
| Continuous Amperage | 500a |
| Brand | Blue Sea Systems |
| Manufacturer part # | 7713 |
| UPC | 632085077129 |
| Boxed dimensions | 12 x 7 x 3 in |
| Shipping weight | 2.1 lb |
| Country of origin | MEXICO |
