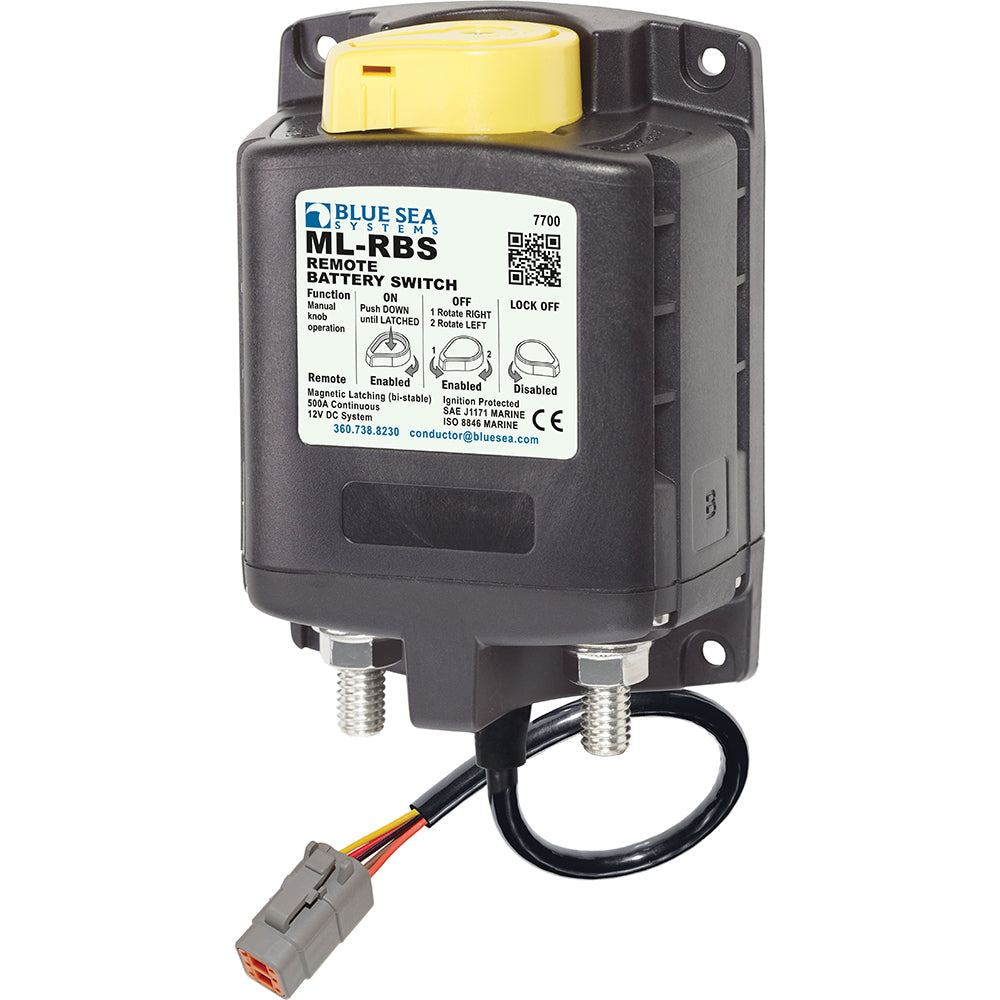

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector

OM-BLUESEA-7700100MLSOLEN-7700100

$171.22
$264.99 $171.22
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

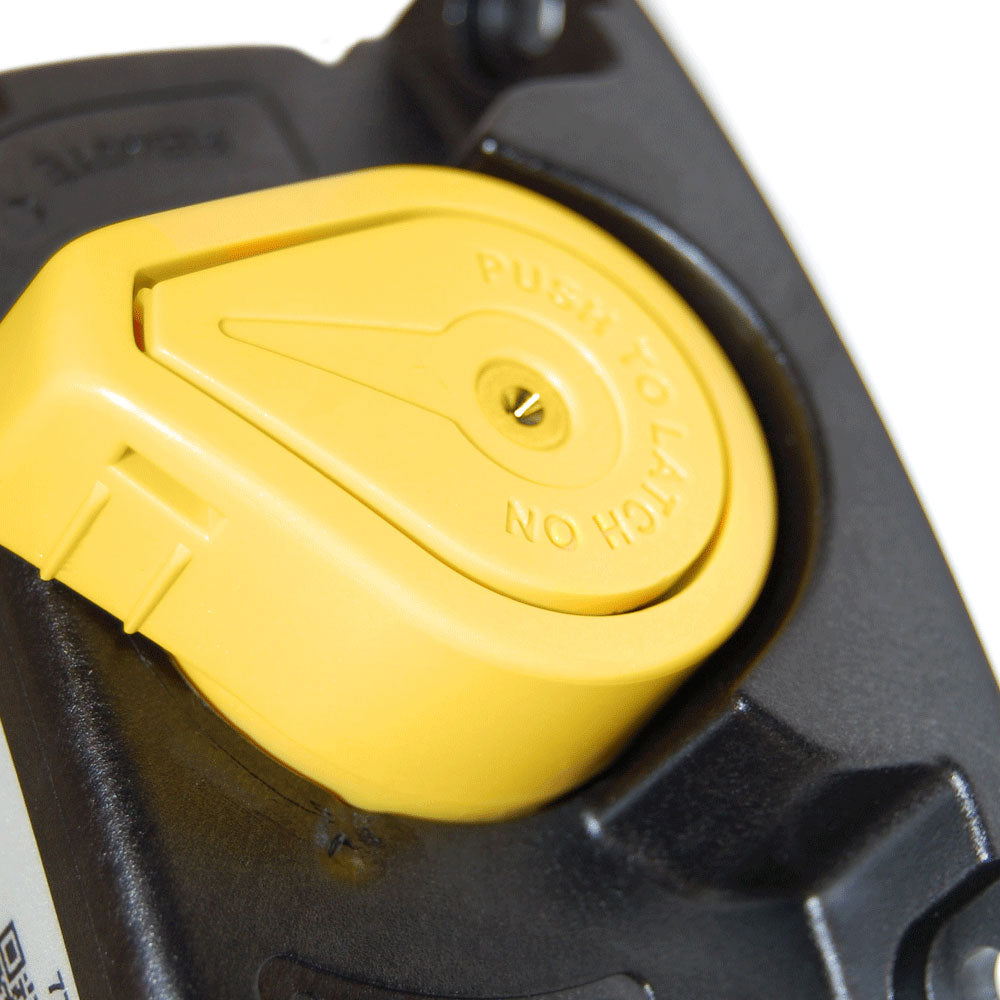

The Blue Sea Systems 7700100 ML Solenoid is a 12V magnetic latching switch for high-amperage DC switching under load. It can be operated manually or remotely, with a manual override knob that also supports locked-off servicing.

  • Part number: 7700100
  • Type: ML Solenoid with manual control and Deutsch connector
  • Nominal voltage: 12VDC
  • Continuous rating: 500A
  • Intermittent rating: 700A for 5 minutes
  • Cranking rating: 1450A for 30 seconds
  • Live current switching: 300A at 12VDC
  • Control circuit connection: Deutsch DTM
  • Coil function: Bi-stable
  • Operating current: 0mA continuous
  • Studs: 3/8"-16 tin-plated copper studs
  • Stud length: 0.875" (22.23 mm)
  • Terminal ring clearance: 1.18" (29.97 mm)
  • Terminal stud torque: 140 in-lb (15.82 Nm)
  • Mounting: #10
  • DC cable size to meet ratings: 2x 4/0
  • Mechanical endurance: 100,000 cycles
  • Master control switch capability: No
  • Weight: 1.75 lb (0.79 kg)
  • Remote indication: LED output for switch state, requires optional LED
  • Identification: Label recesses for circuit marking

Specifications

BrandBlue Sea Systems
Manufacturer part #7700100
UPC632085770013
Boxed dimensions12 x 10 x 4 in
Shipping weight2.55 lb
Country of originMEXICO
