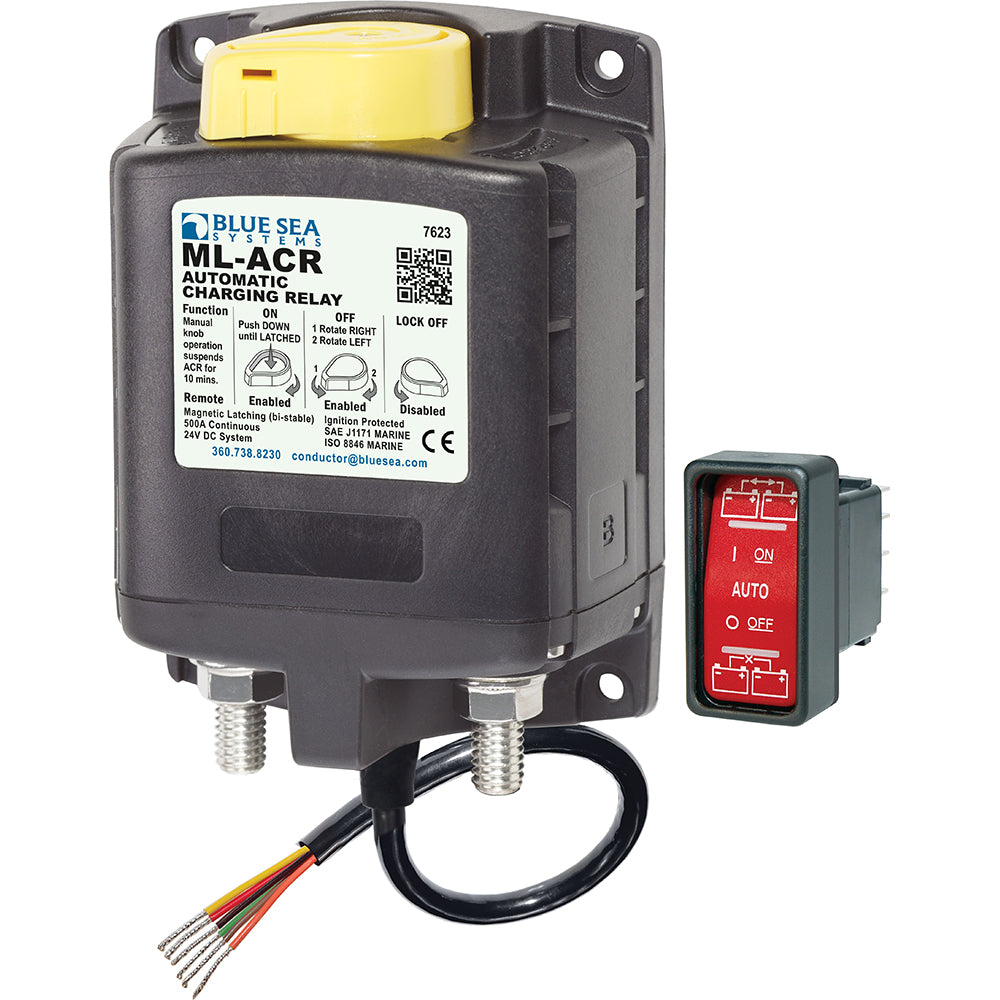

Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay - 24V

This Blue Sea Systems 7623 ML-Series Automatic Charging Relay is a 24V heavy duty relay for managing charging between two battery banks. It includes manual control capability and a remote Contura switch, with configuration options for start isolation and engine isolation.

• Brand: Blue Sea Systems
• Model: 7623
• Product type: ML-Series Heavy Duty Automatic Charging Relay
• Coil voltage: 24V
• Manual control: Yes
• Included switch: ML-Series Remote Control Contura Switch PN 2146
• Continuous rating: 500 Ampere
• Alternator support: Supports high-output alternators up to 500 Amps
• Battery sensing: Senses charging on two battery banks
• Current draw: Magnetic Latch ACR draws less than 10 mA to monitor terminal voltage in ON or OFF states and draws moderate current briefly while changing state
• Isolation options: Start Isolation can temporarily isolate house loads during engine cranking; Engine Isolation can isolate two engines while both are running
• Remote indication: LED output indicates combined, isolated, voltage lockout, Start isolation, or Engine isolation states
• Studs: 3/8 inch-16 tin-plated copper studs
• Stud length: 7/8 inch / 22 mm
• Contact material: Silver alloy contacts
• Labeling: Label recesses for circuit protection
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
