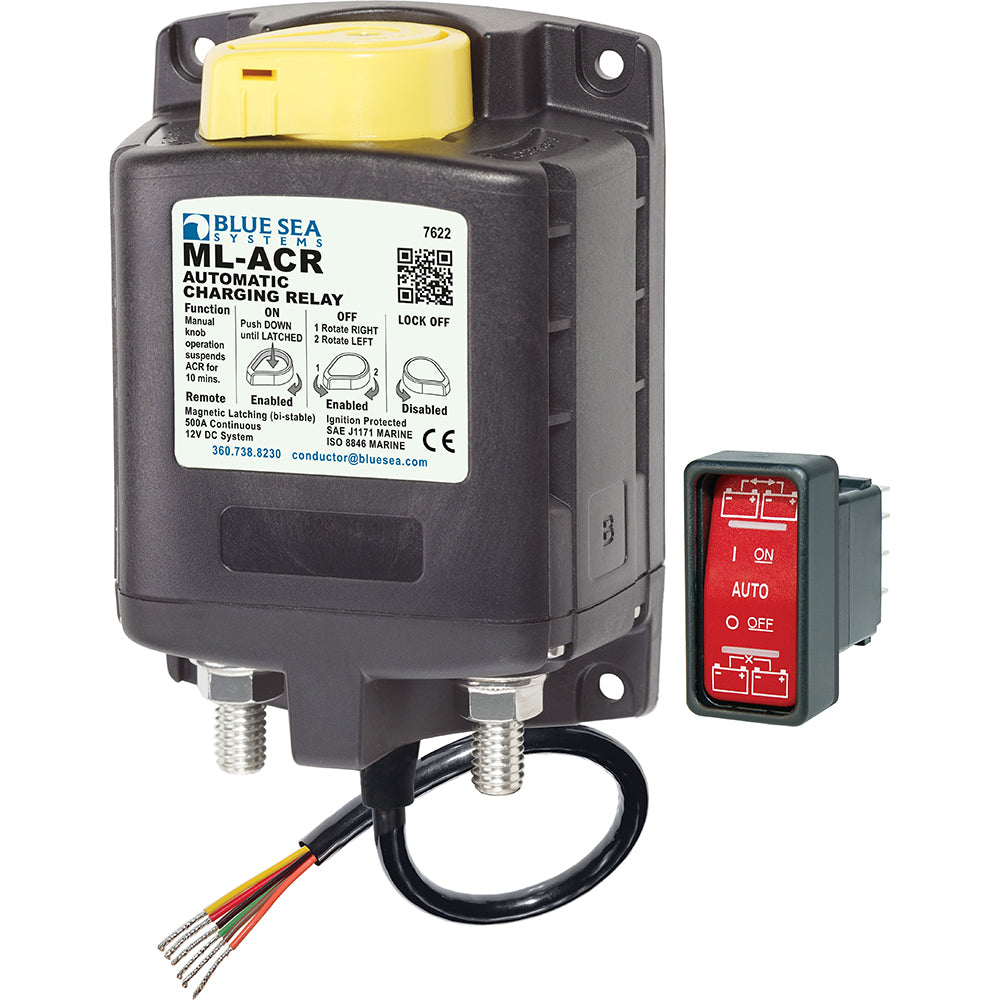

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay

Manage charging across two battery banks with the Blue Sea Systems 7622 ML-Series automatic charging relay. For boat owners using high-output alternators, it combines a 500-amp continuous rating with manual control and configurable isolation of engine and house circuits.

Key features

• Operate the manual switch with or without power, or lock it off for servicing.
• Monitor charging at both battery banks while drawing less than 10 mA to sense terminal voltage in the ON and OFF states.
• Configure Start Isolation to separate house loads from the engine circuit during cranking, helping protect sensitive electronics.
• Configure Engine Isolation to separate two running engines, helping protect engine electronics and maximize alternator output.
• Use the LED output for remote indication of combined, isolated, voltage lockout, Start Isolation or Engine Isolation status.
• Connect multiple cable terminals to the extended studs; tin-plated copper provides conductivity and corrosion resistance.

Specifications

• Model: 7622
• Coil voltage: 12V
• Continuous current rating: 500A
• Supported alternator output: Up to 500A
• Terminal-voltage monitoring current: Less than 10 mA in ON or OFF states
• Studs: 3/8 inch-16, tin-plated copper
• Stud length: 7/8 inch (22mm)
• Contact material: Silver alloy
• Manual control: Yes

Good to know

The package includes the ML-Series Remote Control Contura Switch, part number 2146.
