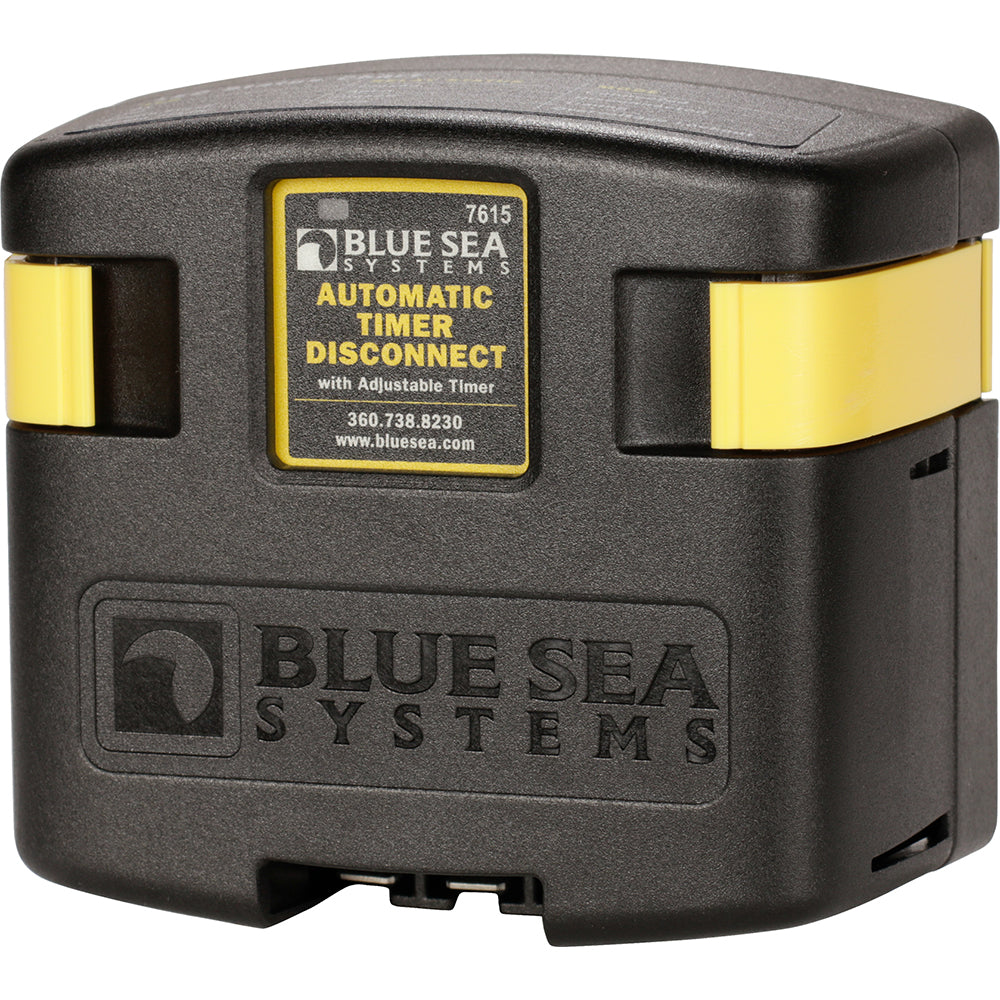

Blue Sea 7615 ATD Automatic Timer Disconnect

Manage how long devices draw battery power with the Blue Sea Systems 7615 ATD Automatic Timer Disconnect. For boat electrical setups using a 12V control signal, it can disconnect devices after a selected delay or when voltage drops to preserve battery power.

Key features

• A 12V signal connects battery power to devices; removing the signal starts the disconnect timer.
• An adjustable delay lets devices remain powered for a selected period before disconnection.
• Low-voltage disconnection can act before the timer expires to conserve battery power.
• Timer and voltage functions can be disabled for disconnection controlled solely by the 12V signal.

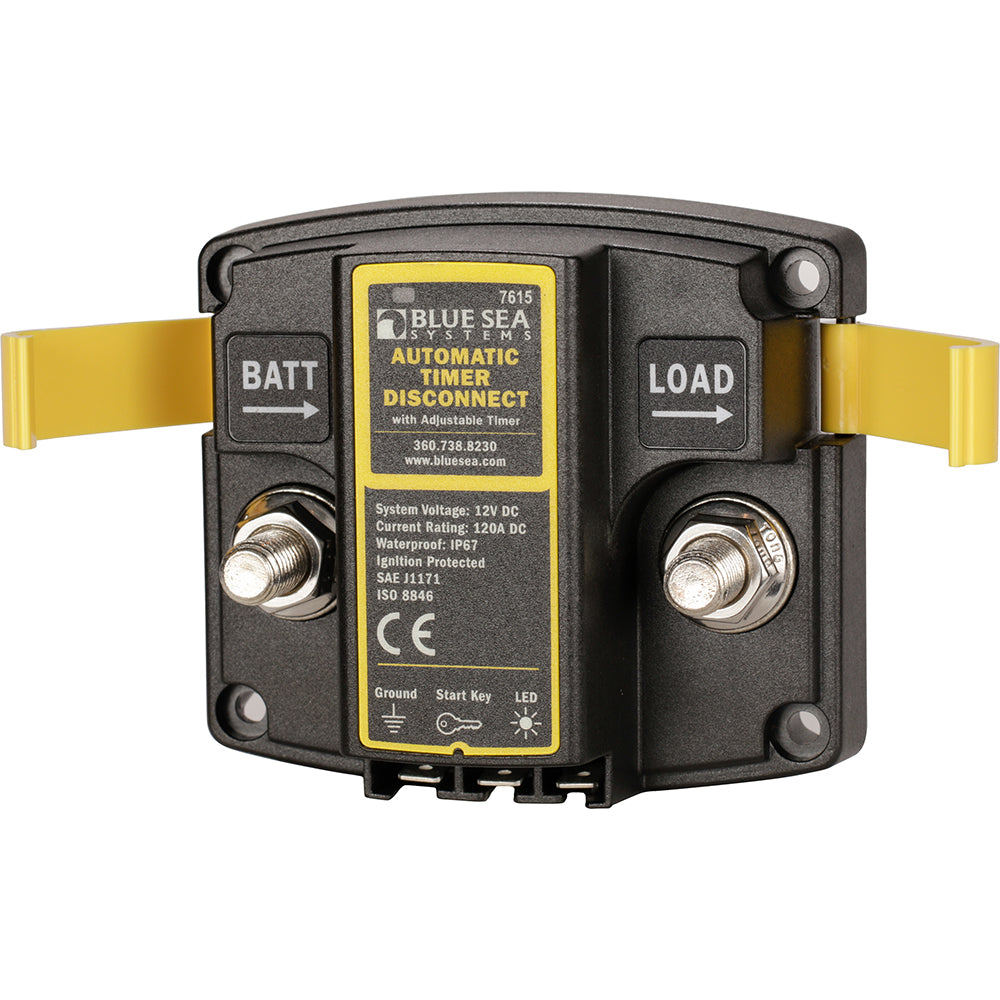

• A clip-on cover insulates terminal connections, while one-piece stainless flange nuts secure them.
• An integrated LED provides a visible status indication.

Specifications

• Brand: Blue Sea Systems
• Model: 7615 ATD
• Product type: Automatic timer disconnect
• Nominal voltage: 12V DC
• Operating current, combine: 175mA
• Operating current, open: 15mA
• Continuous rating: 120A
• Terminal stud size: 3/8-inch-16 (M10)
• Time range: 15 minutes–4 hours
