• Blue Sea 7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
  • 47526
  • 47526
1 3

Blue Sea Systems

Blue Sea 7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging

Blue Sea 7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging

OM-BLUESEA-7611DCBATTERYL-7611

$101.40
$145.99 $101.40
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

120aContinuous Amperage

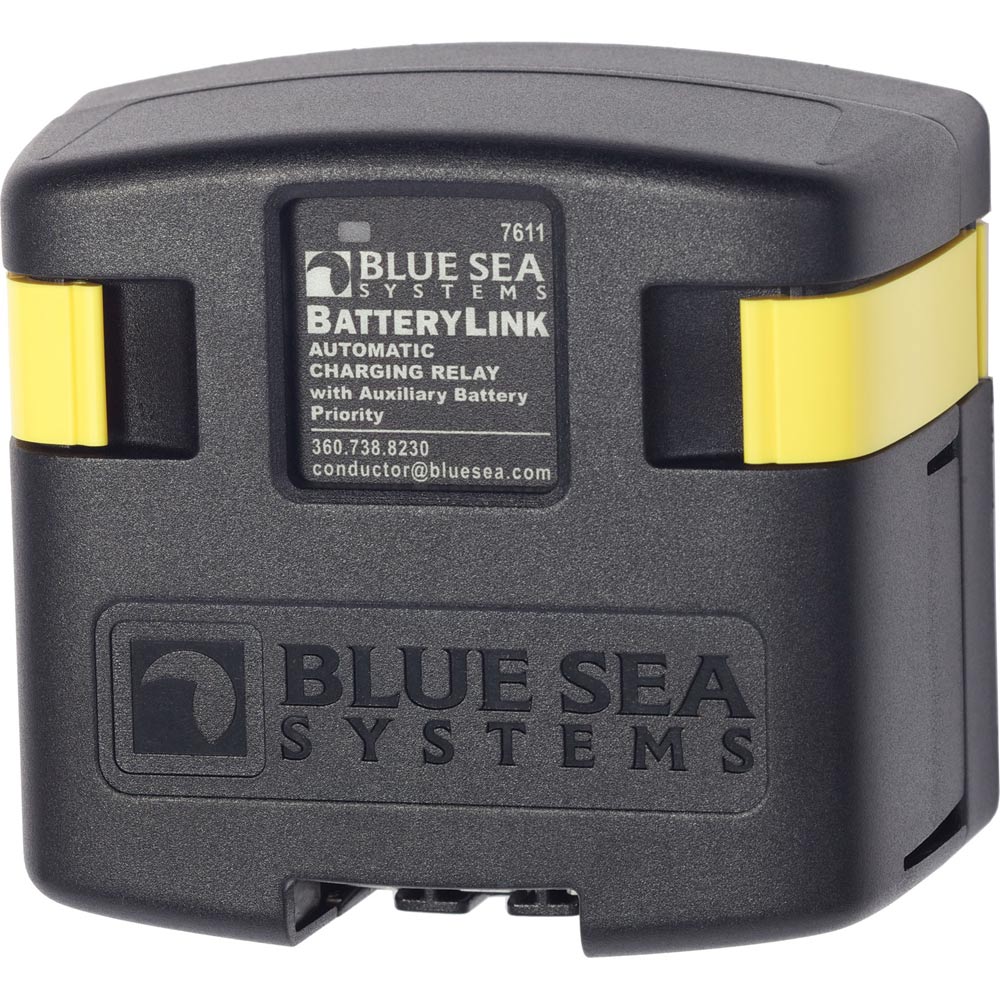

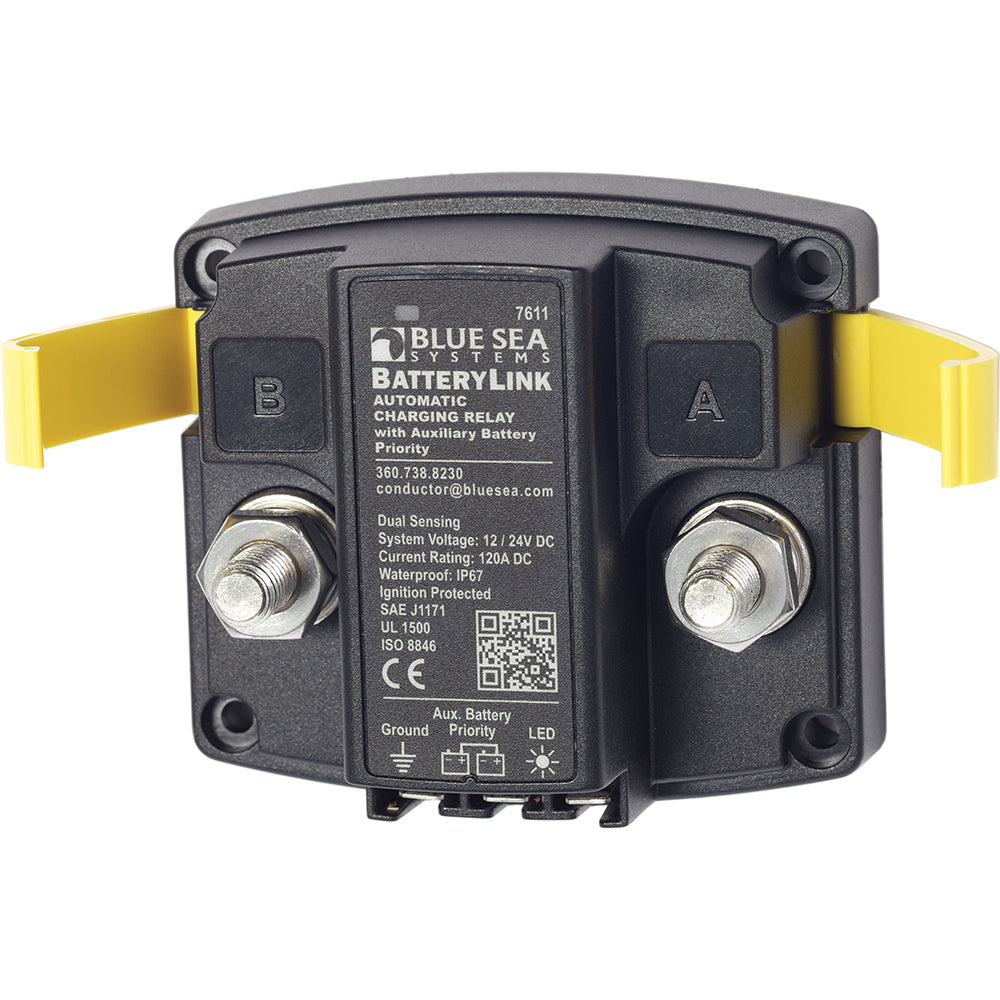

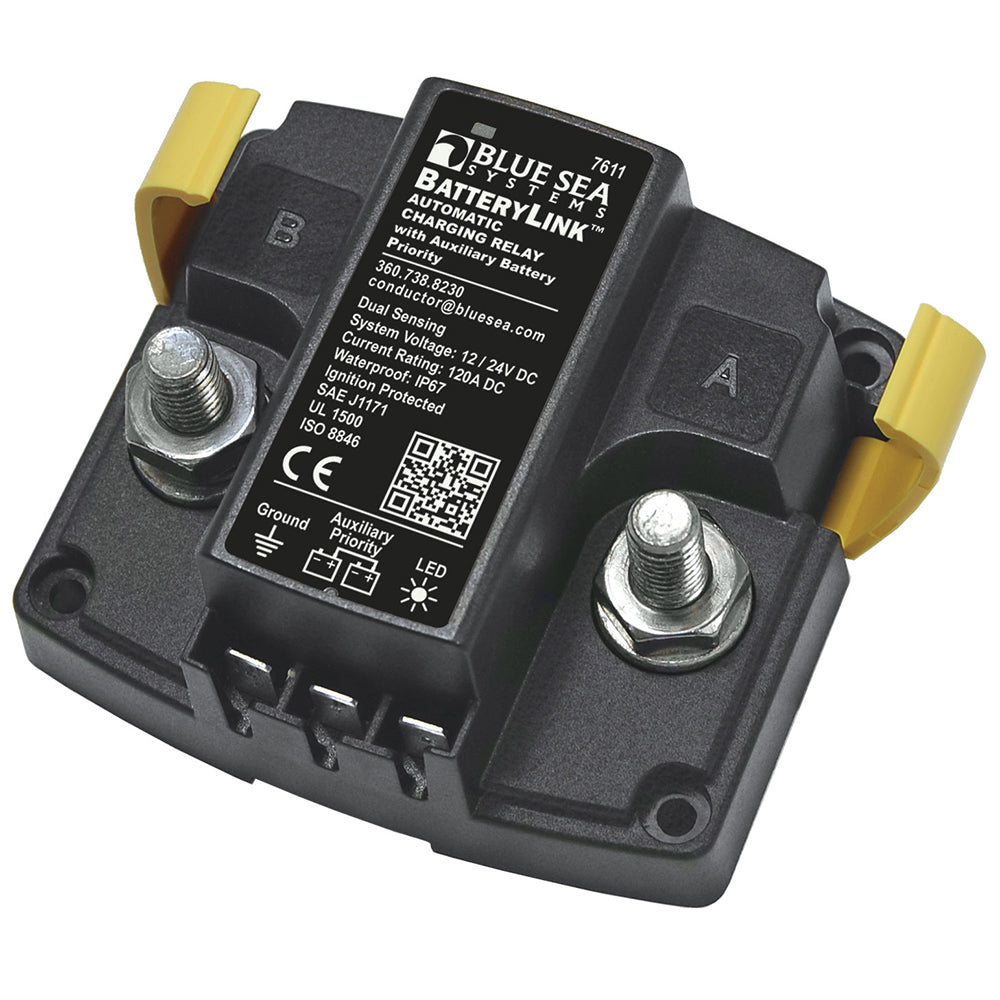

The Blue Sea Systems 7611 DC BatteryLink is an automatic charging relay for managing charging between two battery banks. It supports 12/24V DC systems and includes connection features that help insulate and organize the installation.

  • Product: DC BatteryLink automatic charging relay
  • Continuous rating: 120 amps
  • Intermittent rating: 210 amps for 5 minutes
  • Nominal voltage: 12/24 volts DC
  • Voltage input: 12/24V DC auto-ranging
  • Charging detection: senses charging on two battery banks
  • Cable access: side and bottom knockouts
  • Terminal cover: clip-on cover insulates terminal connections
  • Stud length: 7/8 inch, 22 mm
  • Status indicator: integrated LED shows ACR status
  • Quick connects: 1/4 inch x .032 inch male terminals for ground and optional features
  • Warning: may expose users to chemicals including DEHP, identified by the State of California as causing cancer, birth defects, or other reproductive harm

Specifications

Continuous Amperage120a
BrandBlue Sea Systems
Manufacturer part #7611
UPC632085076115
Boxed dimensions9 x 7 x 4 in
Shipping weight1.25 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
