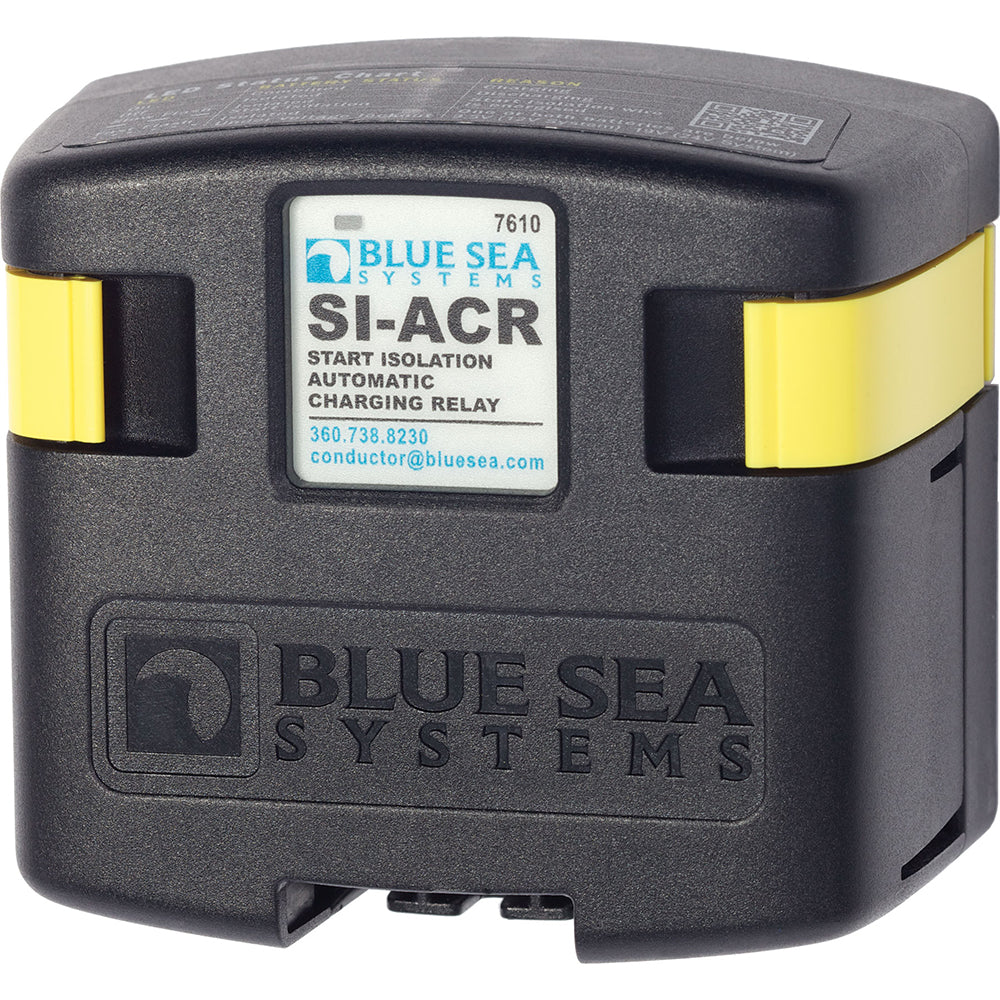

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay

Manage charging between boat battery banks with the Blue Sea Systems 7610 SI-Series automatic charging relay. It joins the banks while charging, separates them during discharge and allows house loads to be isolated during engine cranking to help protect sensitive electronics.

Key features

• Automatic bank combining and isolation handles the change between charging and discharge.
• Starting isolation temporarily separates house loads from the engine circuit during cranking.
• Works with alternators, battery chargers and solar panels, accommodating different charging sources.
• Onboard LEDs show combined-bank status and lockouts; a remote LED output allows status indication elsewhere.
• Sealed contacts and IP67 protection suit marine installation, with ignition protection for gasoline-powered boats.

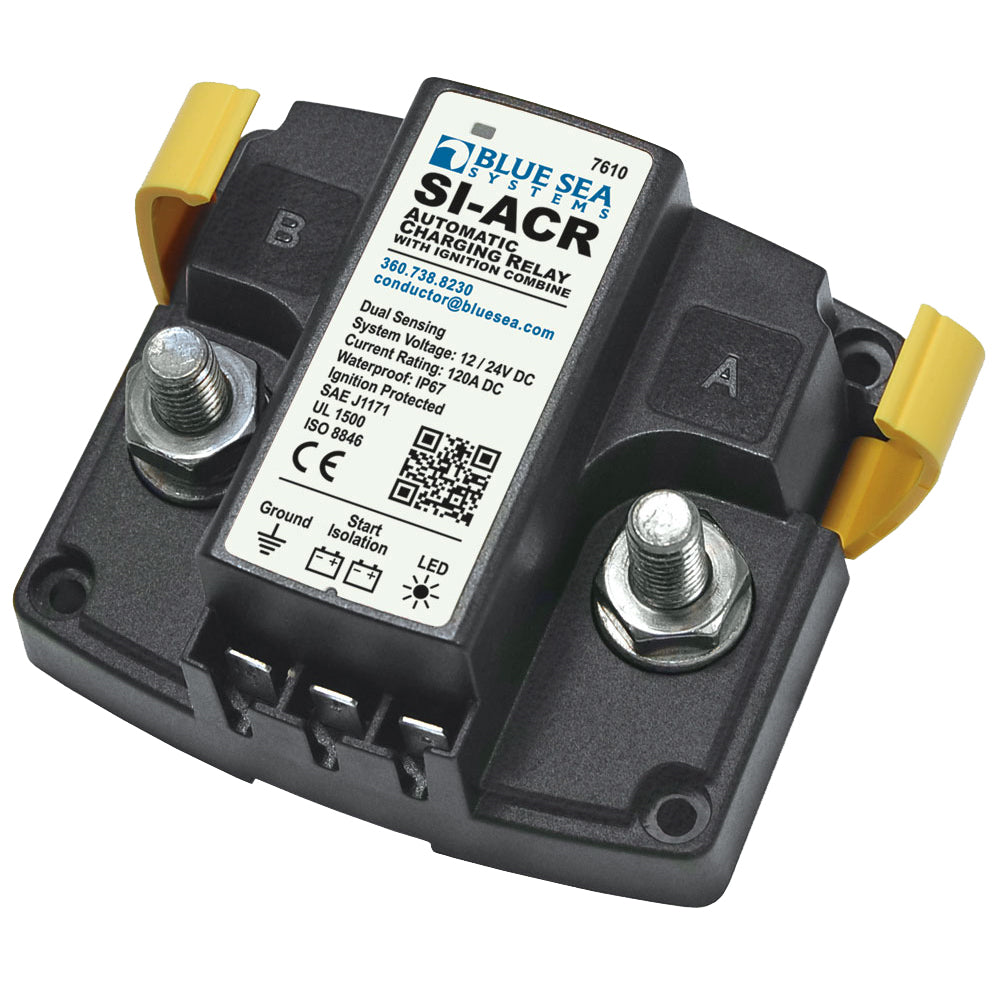

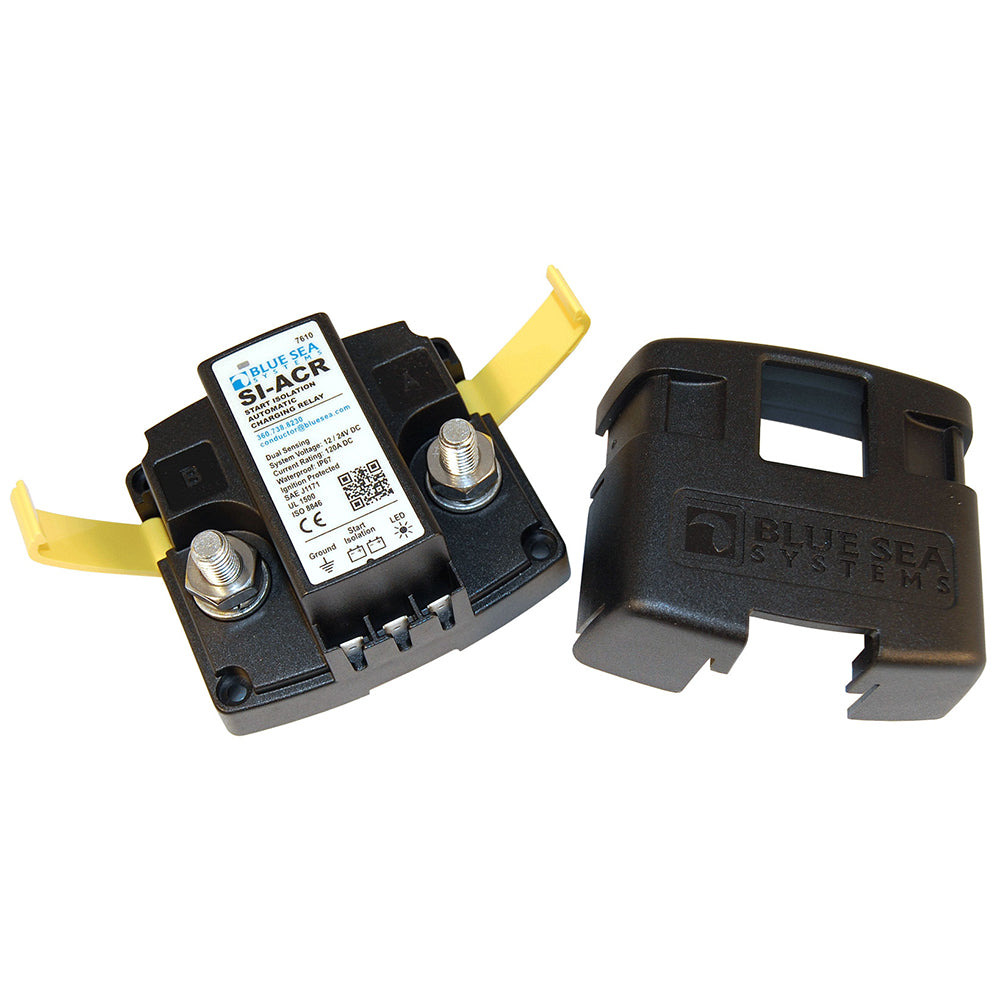

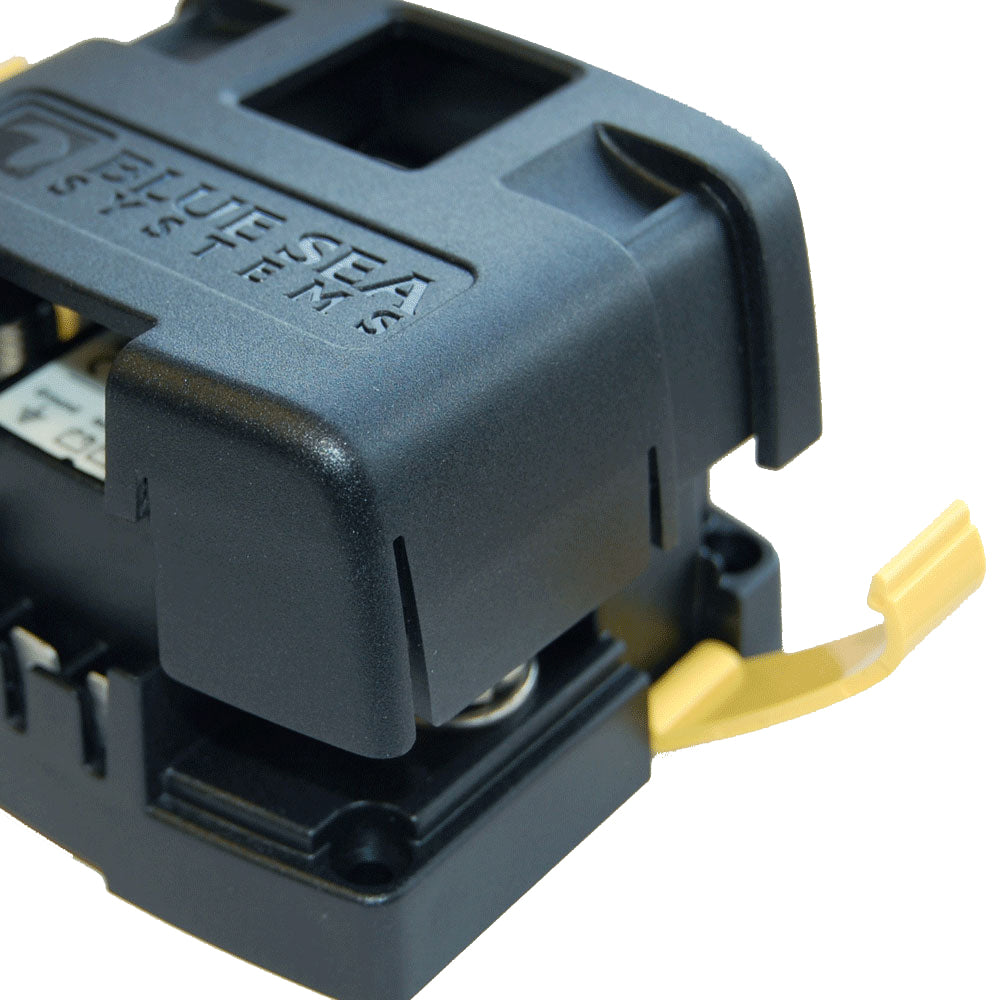

• Cable knockouts, a clip-on insulating cover and extended studs help organize and protect terminal connections.

Specifications

• Model: 7610 SI-Series
• Alternator support: Up to 120 A
• Voltage input: 12/24 V, automatic ranging
• Waterproof rating: IP67, temporary immersion for 30 minutes
• Contacts: Hermetically sealed, vaporproof
• Stud material: Tin-plated copper
• Stud length: 7/8 inch / 22.22 mm
• Male quick-connect terminals: 1/4 inch x 0.031 inch
• Quick-connect functions: Ground, remote LED and starting interrupt
• LED lockout indications: Undervoltage and starting

Good to know

This relay is also included in the ADD A BATTERY Dual Circuit System.
