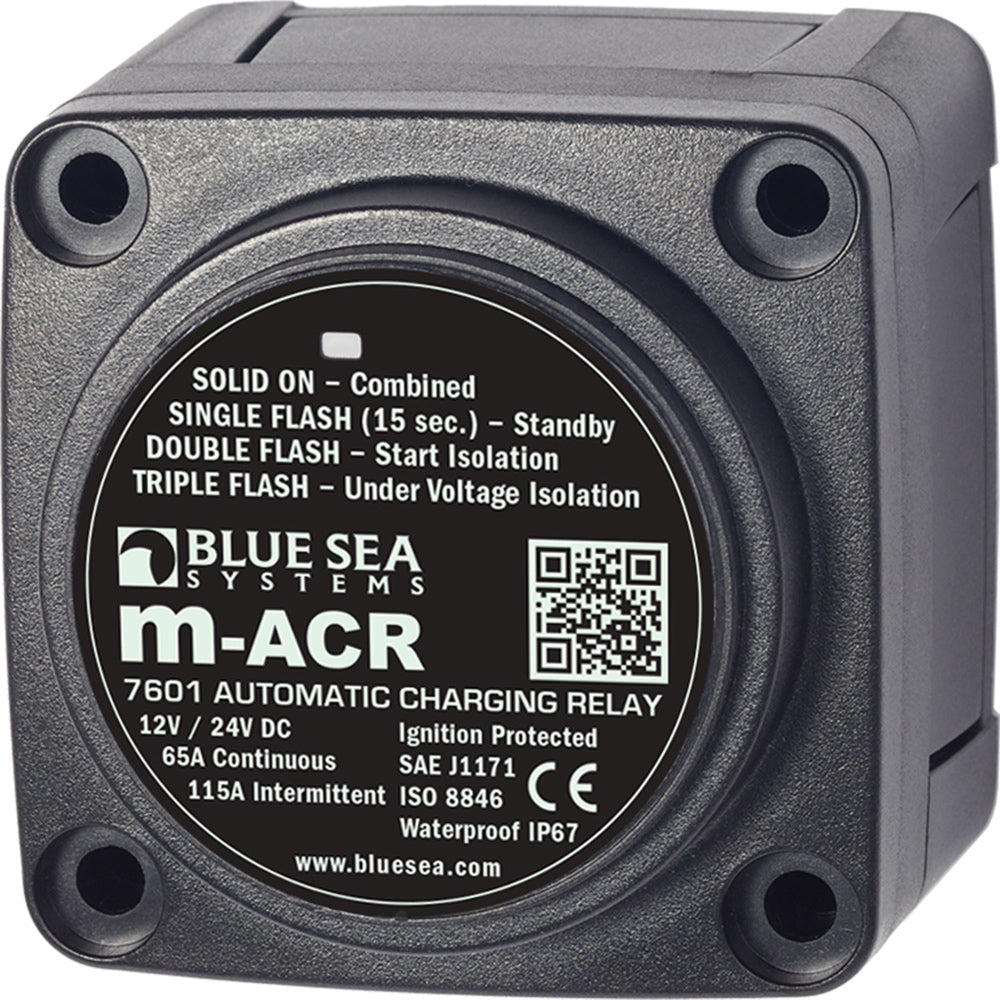

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

OM-BLUESEA-7601DCMINI-7601

$85.26
$121.99 $85.26
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

65aContinuous Amperage

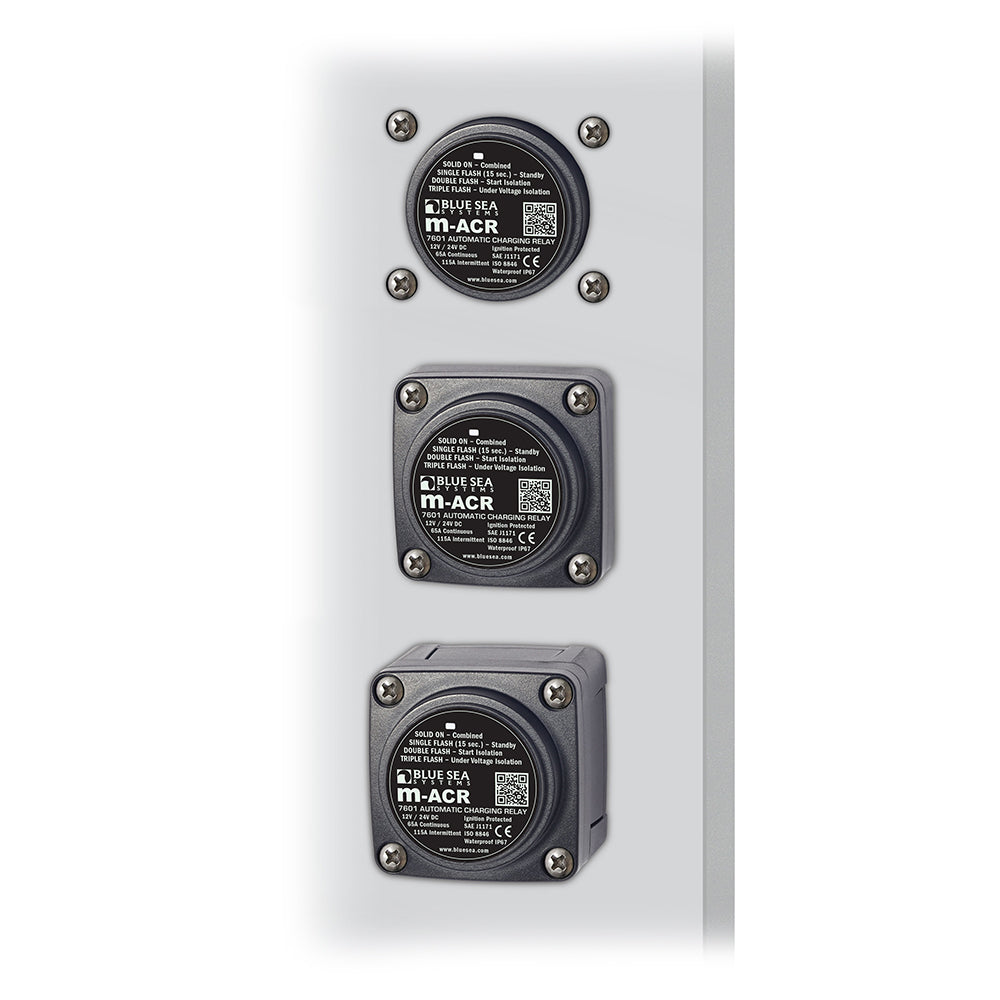

The Blue Sea Systems 7601 Mini ACR is an automatic charging relay for managing charge current between two battery banks. Its compact case supports surface or panel mounting, and the snap-on cover helps insulate terminal connections.

  • Product: DC Mini ACR Automatic Charging Relay
  • Model: 7601
  • Continuous rating: 65A
  • Intermittent rating: 115A for 5 minutes
  • Voltage input: 12V DC
  • Battery banks: Senses charging on two battery banks

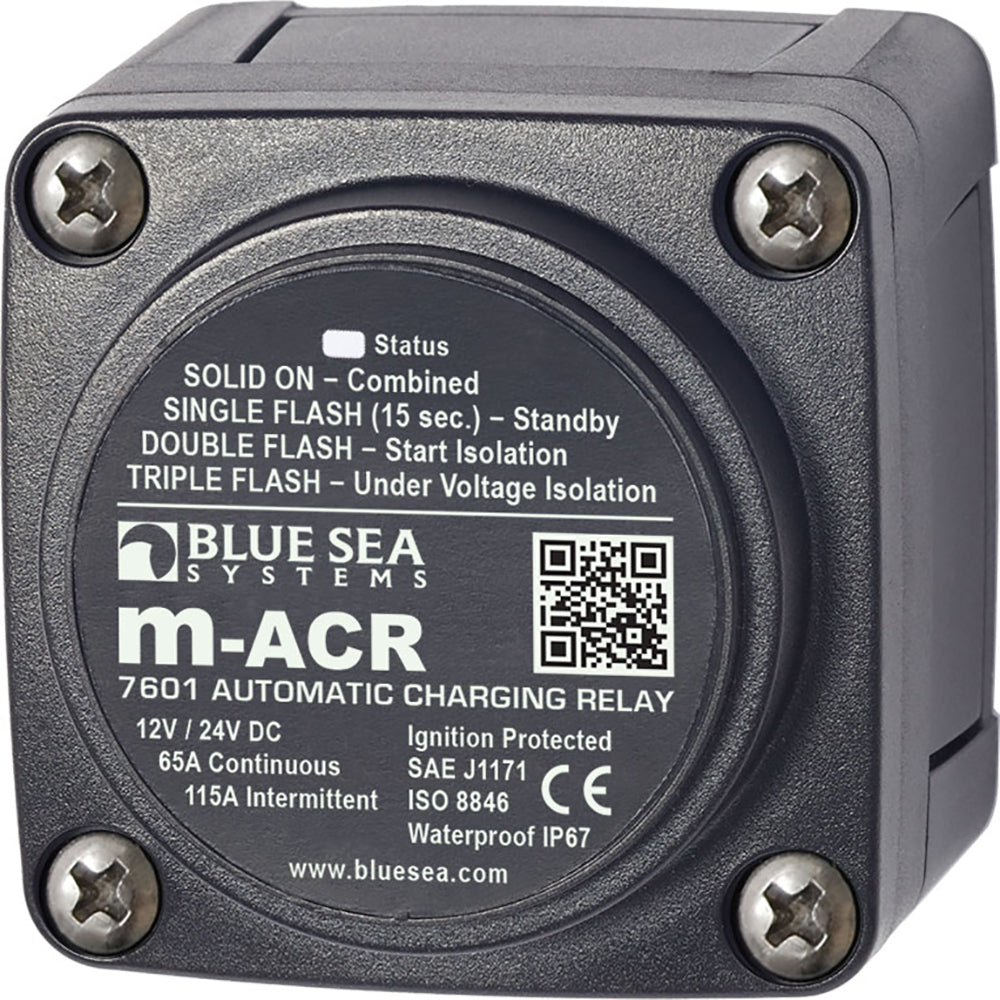

  • Status: LED indicates ACR status
  • Ground terminal: 1/4 inch x .032 inch male quick connect
  • Terminal stud size: 1/4 inch-20
  • Stud length: 5/8 inch (16 mm)
  • Maximum torque: 75 in-lb (8.5 Nm)
  • Maximum cable size: 1/0 AWG
  • Combine threshold: 13.0V DC for 30 seconds or 13.6V DC for 2 minutes
  • Open threshold: 12.75V DC for 30 seconds or 12.35V DC for 10 seconds
  • Open high threshold: 16.0V DC
  • Under voltage lockout: 9.5V DC
  • Operating current: 175mA combine, 15mA open

Specifications

Continuous Amperage65a
BrandBlue Sea Systems
Manufacturer part #7601
UPC632085076016
Boxed dimensions7 x 4 x 3 in
Shipping weight0.6 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
