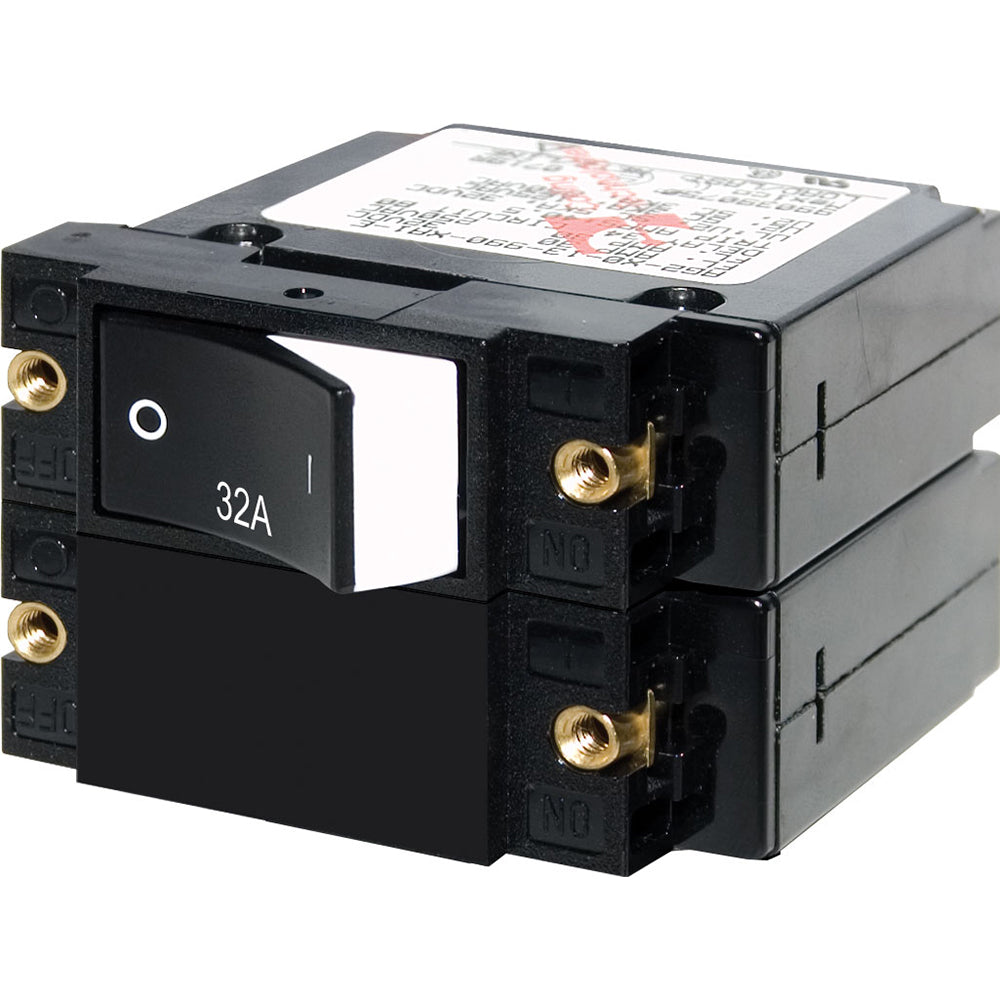

Blue Sea 7575 A-Series Raised Rocker Circuit Breaker - Double Pole - 32A

The Blue Sea Systems 7575 A-Series circuit breaker provides double-pole, 32A protection for boat electrical installations within its stated AC and DC ratings. Its raised rocker provides switching control, while the trip-free mechanism prevents the breaker from being held on during a fault.

Key features

• Trip-free operation allows the breaker to open during a fault even if the rocker is held on.
• A colored actuator indication helps you identify the off position.
• International on/off symbols allow the breaker to be mounted vertically or horizontally.
• A raised rocker provides the switching interface for double-pole circuit control.

Specifications

• Brand: Blue Sea Systems
• Model: 7575 A-Series
• Current rating: 32A AC / 32A DC
• Actuator: Raised rocker
• Poles: 2
• Maximum voltage: 120V AC / 240V AC / 32V DC
• Breaker type: Magnetic hydraulic, trip-free
• Interrupt capacity: 3000A at 240V AC / 1500A at 240V AC [TUV] / 5000A at 32V DC
• Operating temperature: -40°C to 85°C
• Mounting screw: #6-32 stainless steel
• Mounting screw torque: 6 in-lb (0.68 Nm)
• Terminal screw: #10-32 stainless steel
• Screw terminal torque: 14 in-lb (1.58 Nm)
• Switching cycles: 10000
• Weight: 0.38 lb (0.17 kg)
