• Blue Sea 7549 C-Series Flat Rocker Circuit Breaker - Single Pole - 100A
1 1

Blue Sea Systems

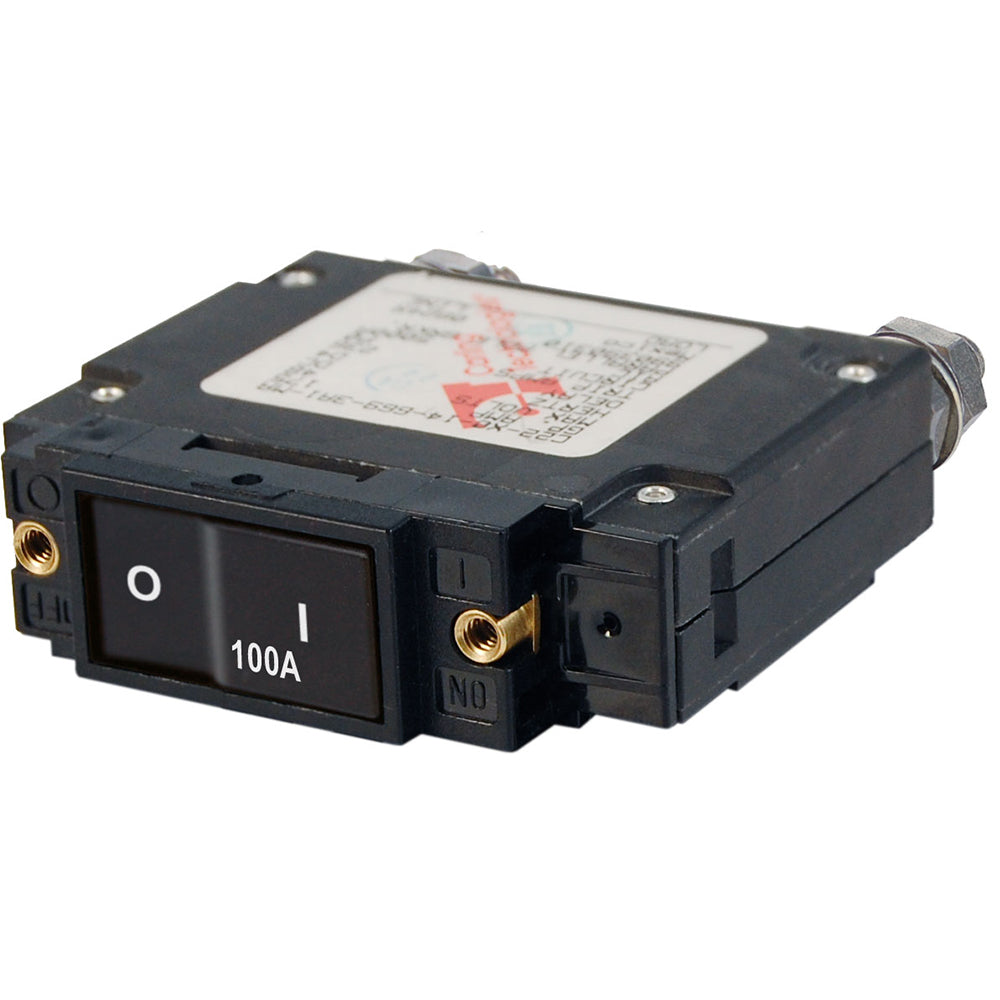

Blue Sea 7549 C-Series Flat Rocker Circuit Breaker - Single Pole - 100A

Blue Sea 7549 C-Series Flat Rocker Circuit Breaker - Single Pole - 100A

OM-BLUESEA-7549CSERIES-7549

$54.19
$67.99 $54.19
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

100aAmperage

The Blue Sea Systems 7549 is a C-Series flat rocker circuit breaker with a single-pole, 100A rating. It is designed to provide overcurrent protection while also serving as a switch for marine equipment such as inverters, bow thrusters, and windlasses.

  • Brand: Blue Sea Systems
  • Part number: 7549
  • Series: C-Series
  • Product type: Flat rocker circuit breaker
  • Poles: 1
  • Amperage: 100A AC / 100A DC
  • Maximum voltage: 240V AC / 48V DC
  • Circuit breaker type: Magnetic hydraulic - trip free
  • Actuator style: Flat rocker
  • Actuator position: Rocker is flush in the ON position
  • OFF indication: Color actuator indicates OFF position
  • Protection use: Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Function: Combines switching and circuit protection in one device
  • Ignition protection: Safe for installation aboard gasoline powered boats
  • Interrupt capacity: 3000A @ 120V AC; 3500A @ 240V AC; 5000A @ 32V DC
  • Operating temperature: -40° C minimum to 85° C maximum
  • Terminal stud: 1/4-20 tin-plated brass
  • Terminal stud torque: 35 in-lb (3.95 Nm)
  • Mounting screw: #6-32 stainless steel
  • Mounting screw torque: 6 in-lb (0.68 Nm)
  • Switching cycles: 10000
  • Weight: 0.38 lb (0.17 kg)
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Amperage100a
BrandBlue Sea Systems
Manufacturer part #7549
UPC632085075491
Boxed dimensions5 x 3 x 2 in
Shipping weight0.4 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
