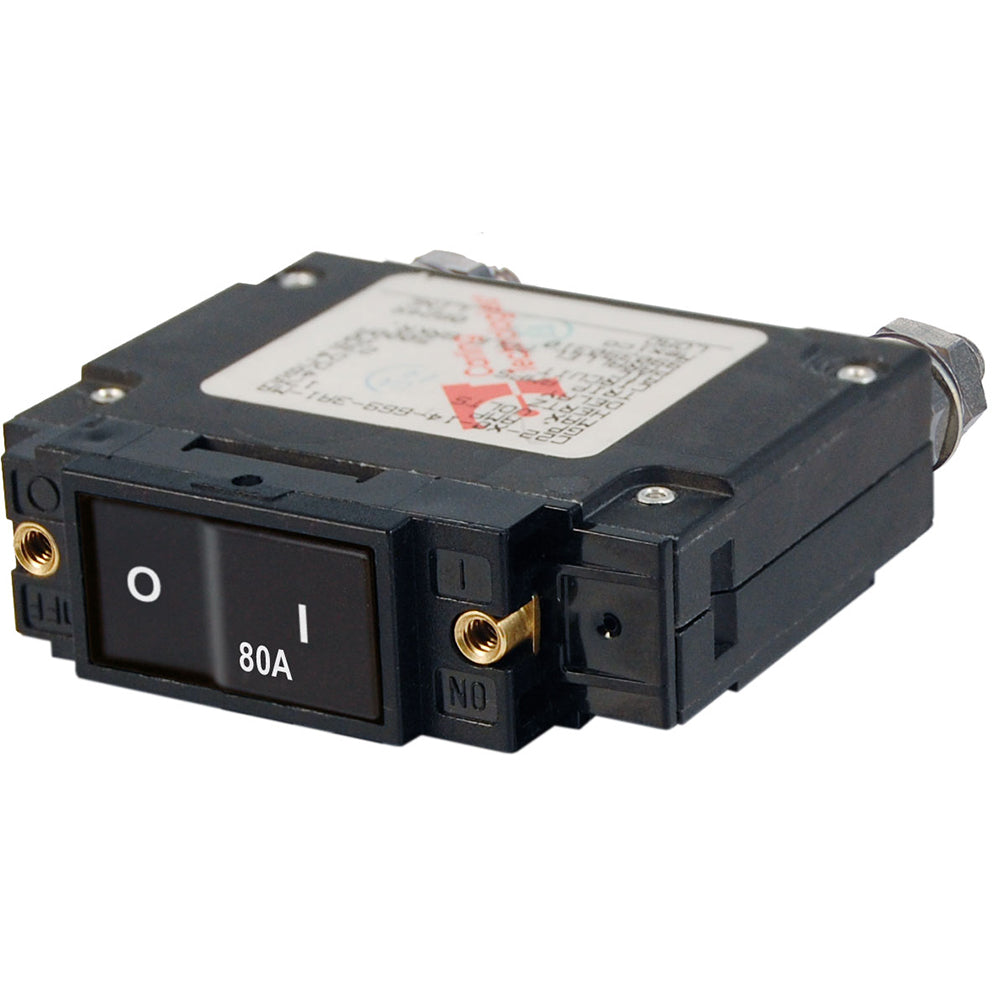

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A

OM-BLUESEA-7548CSERIES-7548

$54.19
$67.99 $54.19
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

80aAmperage

The Blue Sea Systems 7548 is a single-pole C-Series flat rocker circuit breaker rated at 80A for AC and DC use. It provides overcurrent protection and switching in one unit for equipment such as inverters, bow thrusters, and windlasses.

  • Brand: Blue Sea Systems
  • Part number: 7548
  • Series: C-Series
  • Actuator style: Flat rocker
  • Poles: 1
  • Amperage: 80A AC / 80A DC
  • Maximum voltage: 240V AC / 48V DC
  • Circuit breaker type: Magnetic hydraulic, trip free
  • Interrupt capacity: 3000A at 120V AC, 3500A at 240V AC, 5000A at 32V DC
  • Operating temperature: -40 C to 85 C
  • Terminal stud: 1/4-20 tin-plated brass
  • Terminal stud torque: 35 in-lb (3.95 Nm)
  • Mounting screw: #6-32 stainless steel
  • Mounting screw torque: 6 in-lb (0.68 Nm)
  • Switching cycles: 10000
  • Weight: 0.38 lb (0.17 kg)
  • Actuator indication: Flush rocker in the on position and color indication in the off position
  • Protection: Ignition protected for installation aboard gasoline powered boats

Specifications

Amperage80a
BrandBlue Sea Systems
Manufacturer part #7548
UPC632085075484
Boxed dimensions5 x 3 x 2 in
Shipping weight0.4 lb
Country of originMEXICO
