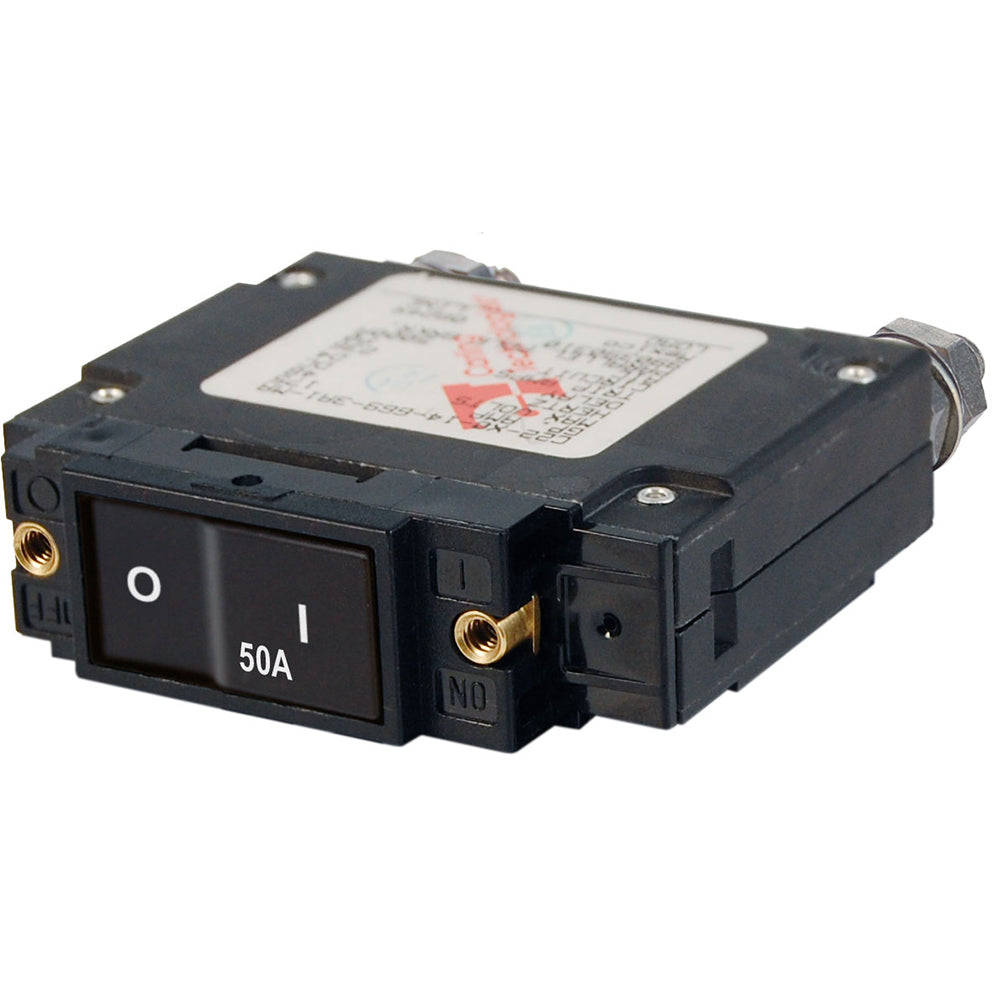

• Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A
1 1

Blue Sea Systems

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A

OM-BLUESEA-7546CSERIES-7546

$54.19
$67.99 $54.19
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

50aAmperage

The Blue Sea Systems 7546 is a single-pole C-Series circuit breaker with a flat rocker actuator. It is built for marine electrical systems that need switchable overcurrent protection for equipment such as inverters, bow thrusters, and windlasses.

  • Part number: 7546
  • Series: C-Series
  • Amperage: 50A AC / 50A DC
  • Poles: Single pole
  • Actuator: Flat rocker; flush when in the ON position
  • Maximum voltage: 240V AC / 48V DC
  • Breaker type: Magnetic hydraulic, trip-free
  • Interrupt capacity: 3000A at 120V AC, 3500A at 240V AC, 5000A at 32V DC
  • Terminal stud: 1/4-20 tin-plated brass
  • Terminal stud torque: 35 in-lb / 3.95 Nm
  • Mounting screw: #6-32 stainless steel; 6 in-lb / 0.68 Nm torque
  • Operating temperature: -40 degrees C to 85 degrees C
  • Switching cycles: 10000
  • Weight: 0.38 lb / 0.17 kg
  • Ignition protection: Safe for installation aboard gasoline powered boats
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Amperage50a
BrandBlue Sea Systems
Manufacturer part #7546
UPC632085075460
Boxed dimensions4 x 2 x 2 in
Shipping weight0.4 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
