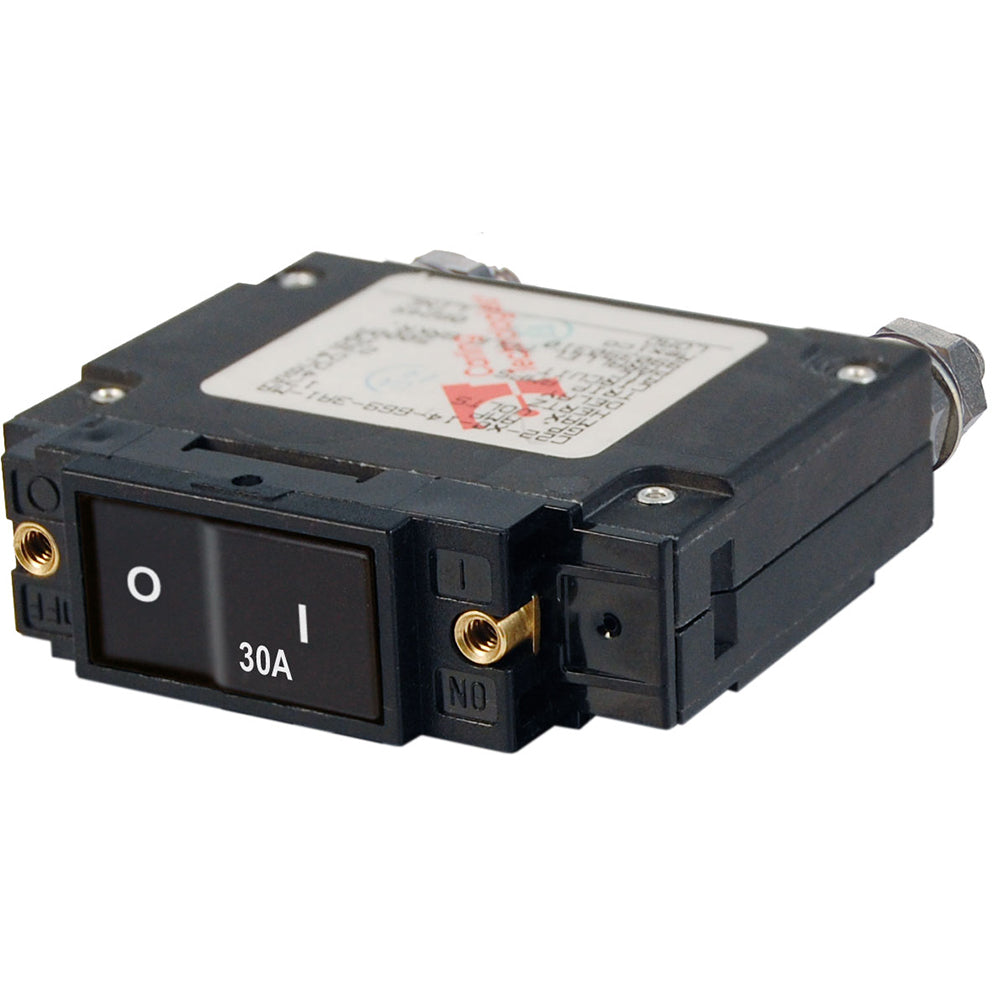

Blue Sea 7545 C-Series Flat Rocker Circuit Breaker - Single Pole - 30A

Blue Sea 7545 C-Series Flat Rocker Circuit Breaker - Single Pole - 30A

OM-BLUESEA-7545CSERIES-7545

$54.19
$67.99 $54.19
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

30aAmperage

This Blue Sea Systems C-Series breaker combines circuit switching and overcurrent protection in one single-pole device. The flat rocker sits flush when the breaker is on, making it suited for marine electrical panels serving equipment such as inverters, bow thrusters, and windlasses.

  • Amperage: 30A AC / 30A DC
  • Maximum voltage: 240V AC / 48V DC
  • Breaker type: magnetic hydraulic, trip-free
  • Actuator: flat rocker with color indication in the off position
  • Poles: 1
  • Interrupt capacity: 3000A at 120V AC, 3500A at 240V AC, 5000A at 32V DC
  • Operating temperature: -40 degrees C to 85 degrees C
  • Terminal stud: 1/4-20 tin-plated brass
  • Terminal stud torque: 35 in-lb (3.95 Nm)
  • Mounting screw: #6-32 stainless steel
  • Mounting screw torque: 6 in-lb (0.68 Nm)
  • Switching cycles: 10000
  • Weight: 0.38 lb (0.17 kg)
  • Ignition protected: suitable for gasoline powered boats

Specifications

Amperage30a
BrandBlue Sea Systems
Manufacturer part #7545
UPC632085075453
Boxed dimensions5 x 3 x 2 in
Shipping weight0.3 lb
Country of originMEXICO
