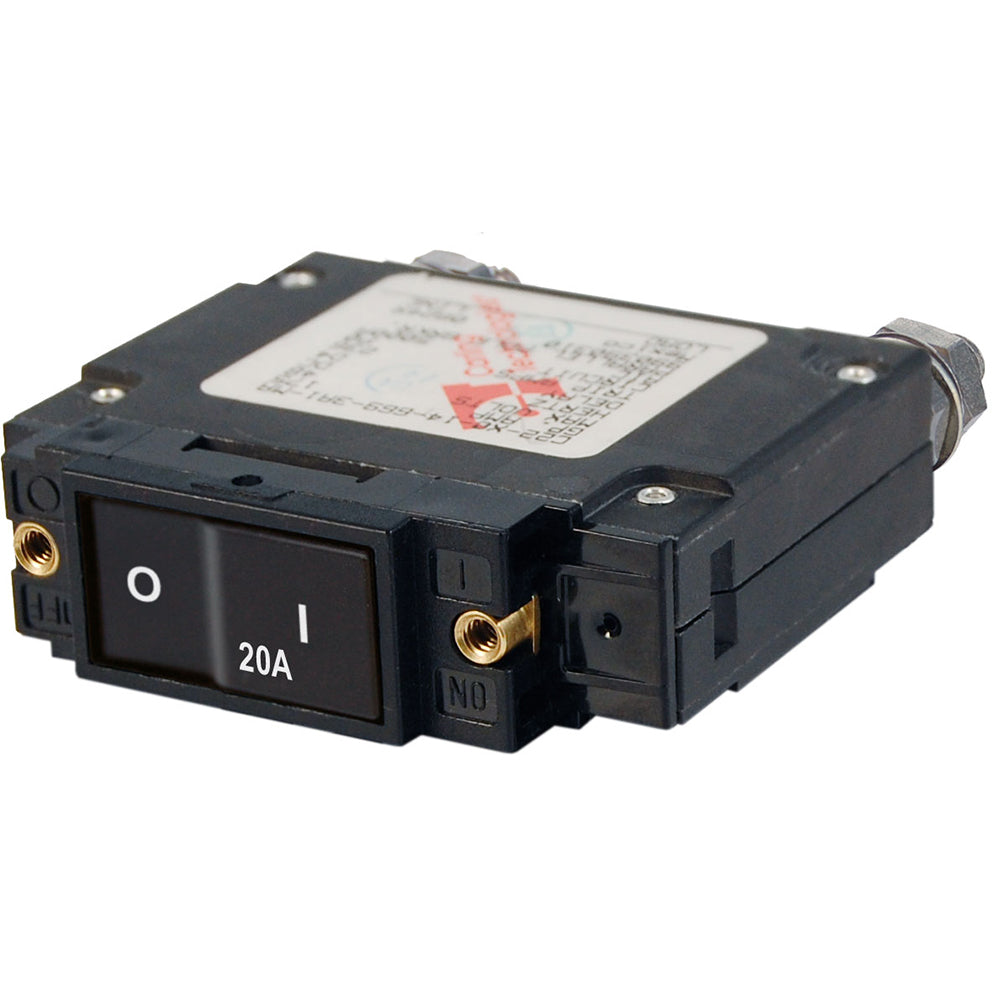

Blue Sea 7543 C-Series Flat Rocker Circuit Breaker - Single Pole - 20A

The Blue Sea Systems 7543 is a single-pole C-Series flat rocker circuit breaker rated for 20A AC and 20A DC service. It combines circuit switching with overcurrent protection for marine electrical loads such as inverters, bow thrusters and windlasses.

The flat rocker sits flush when switched on, while the colored actuator shows when the breaker is off. Its trip-free magnetic hydraulic design cannot be held closed after tripping, and it is ignition protected for installation on gasoline powered boats.

• Brand: Blue Sea Systems
• Model: 7543
• Series: C-Series
• Breaker style: Flat rocker
• Poles: 1
• Amperage: 20A AC / 20A DC
• Maximum voltage: 240V AC / 48V DC
• Circuit breaker type: Magnetic hydraulic, trip free
• Interrupt capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
• Terminal stud: 1/4-20 tin-plated brass
• Terminal stud torque: 35 in-lb (3.95 Nm)
• Mounting screw: #6-32 stainless steel
• Mounting screw torque: 6 in-lb (0.68 Nm)
• Operating temperature: -40° C to 85° C
• Switching cycles: 10000
• Weight: 0.38 lb (0.17 kg)
