Blue Sea Systems

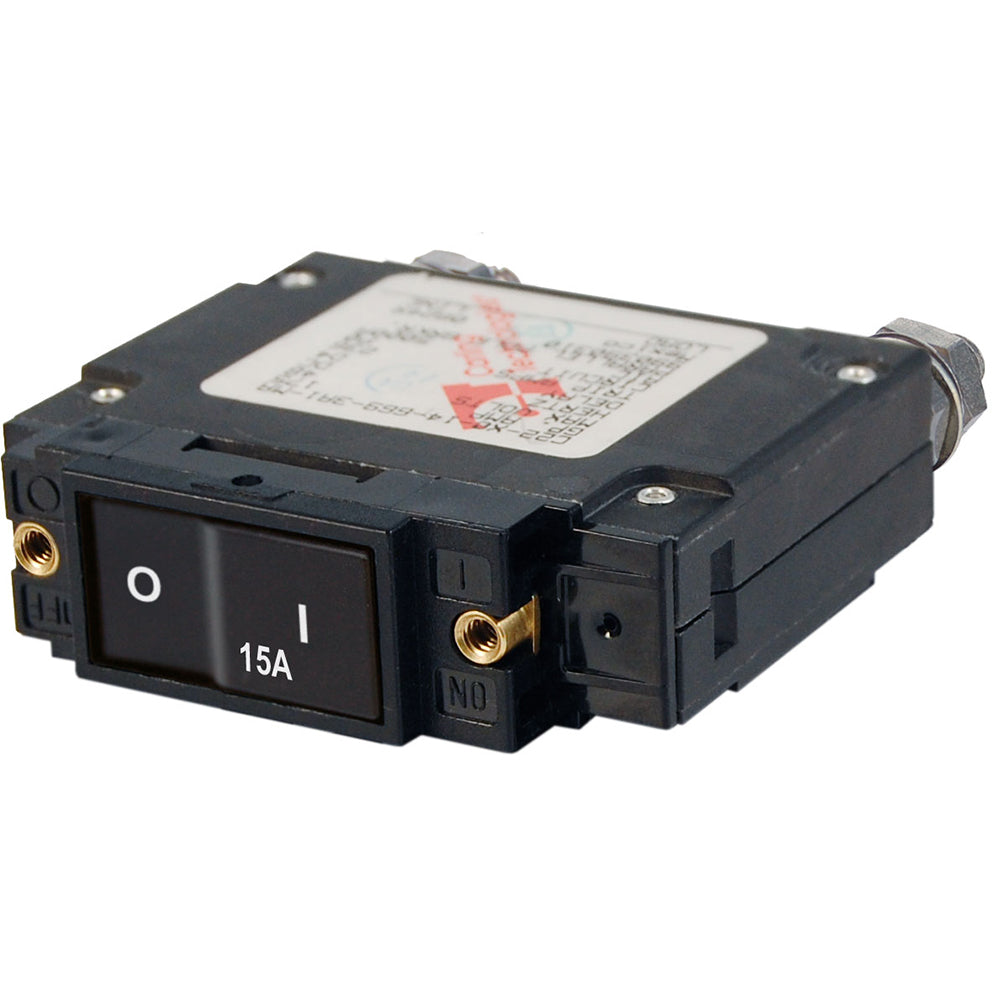

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A

OM-BLUESEA-7542CSERIES-7542

$54.19
$67.99 $54.19
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

15aAmperage

The Blue Sea Systems 7542 C-Series breaker combines a single-pole switch and overcurrent protection in one flat rocker unit. It is intended for marine electrical circuits such as inverters, bow thrusters, and windlasses, including installations on gasoline powered boats.

  • Part number: 7542
  • Amperage: 15A AC / 15A DC
  • Poles: 1
  • Actuator style: Flat rocker
  • Maximum voltage: 240V AC / 48V DC
  • Breaker type: Magnetic hydraulic, trip free
  • Interrupt capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
  • Temperature range: -40 degrees C to 85 degrees C
  • Terminal stud: 1/4-20 tin-plated brass
  • Terminal stud torque: 35 in-lb (3.95 Nm)
  • Mounting screw: #6-32 stainless steel
  • Mounting screw torque: 6 in-lb (0.68 Nm)
  • Switching cycles: 10000
  • Weight: 0.38 lb (0.17 kg)
  • Safety: Trip free design cannot be held closed after a trip
  • Installation: Ignition protected for gasoline powered boats
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Amperage15a
BrandBlue Sea Systems
Manufacturer part #7542
UPC632085075422
Boxed dimensions4 x 3 x 2 in
Shipping weight0.4 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
