• Blue Sea 7540 C-Series Flat Rocker Circuit Breaker - Single Pole - 5A
1 1

Blue Sea Systems

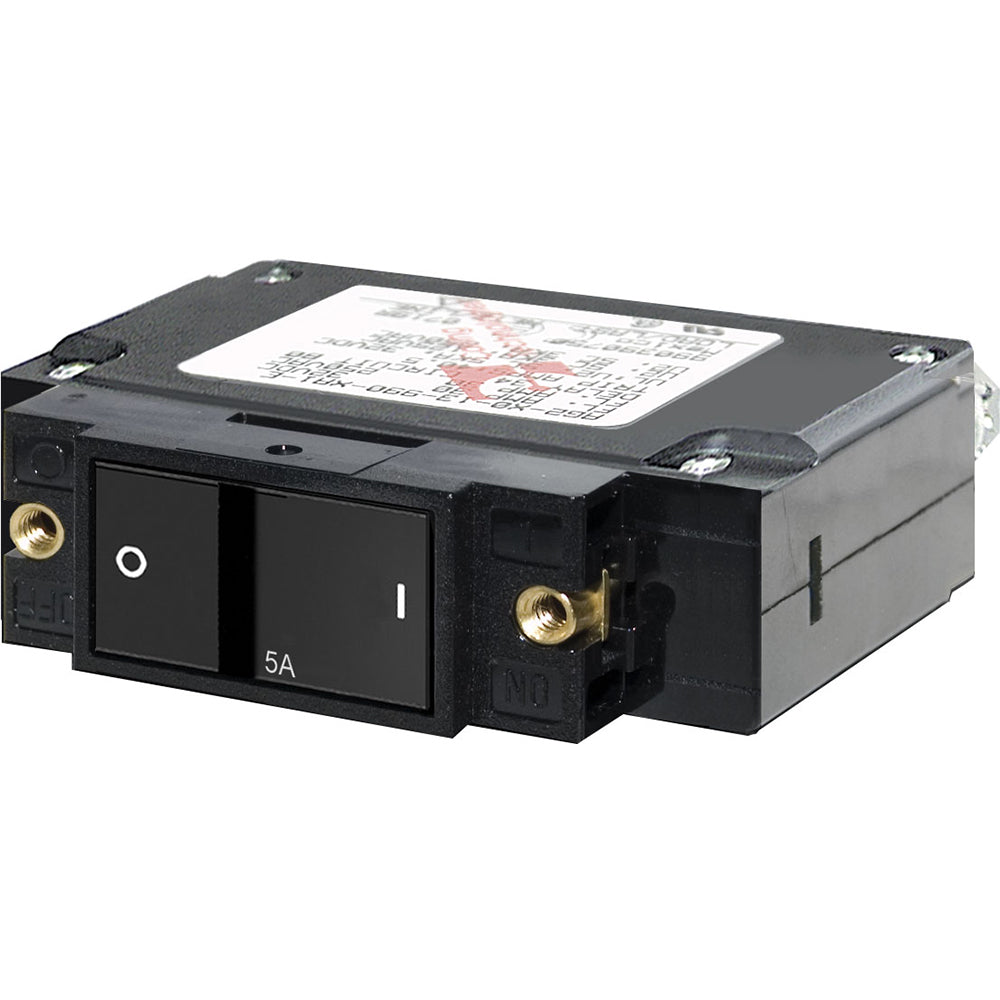

Blue Sea 7540 C-Series Flat Rocker Circuit Breaker - Single Pole - 5A

Blue Sea 7540 C-Series Flat Rocker Circuit Breaker - Single Pole - 5A

OM-BLUESEA-7540CSERIES-7540

$54.19
$67.99 $54.19
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

5aAmperage

The Blue Sea Systems 7540 is a single-pole C-Series flat rocker circuit breaker rated at 5A. It combines switching and overcurrent protection in one device for marine electrical systems such as inverters, bow thrusters and windlasses.

  • Brand: Blue Sea Systems
  • Model: 7540
  • Product type: C-Series flat rocker circuit breaker
  • Poles: 1
  • Amperage: 5A AC / 5A DC
  • Maximum voltage: 240V AC / 48V DC
  • Circuit breaker type: Magnetic hydraulic, trip free
  • Actuator style: Flat rocker
  • Actuator details: Flush in the on position with color indication in the off position
  • Interrupt capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
  • Operating temperature: -40° C to 85° C
  • Terminal stud: 1/4-20 tin-plated brass
  • Terminal stud torque: 35 in-lb (3.95 Nm)
  • Mounting screw: #6-32 stainless steel
  • Mounting screw torque: 6 in-lb (0.68 Nm)
  • Switching cycles: 10000
  • Weight: 0.38 lb (0.17 kg)
  • Installation: Ignition protected for installation aboard gasoline powered boats
  • Warning: This product can expose you to chemicals including DEHP, known to the State of California to cause cancer, birth defects or other reproductive harm.

Specifications

Amperage5a
BrandBlue Sea Systems
Manufacturer part #7540
UPC632085075408
Boxed dimensions4 x 3 x 2 in
Shipping weight0.29 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
