• Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank
  • 67227
1 2

Blue Sea Systems

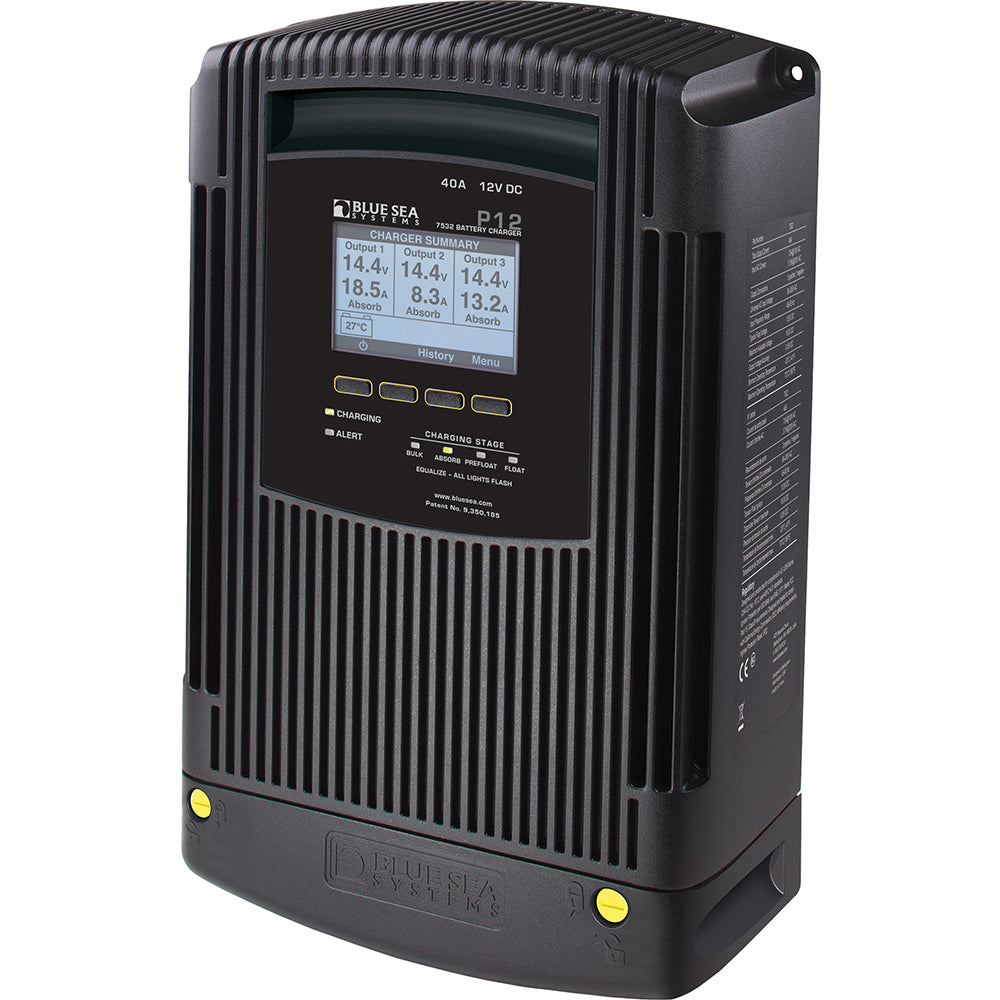

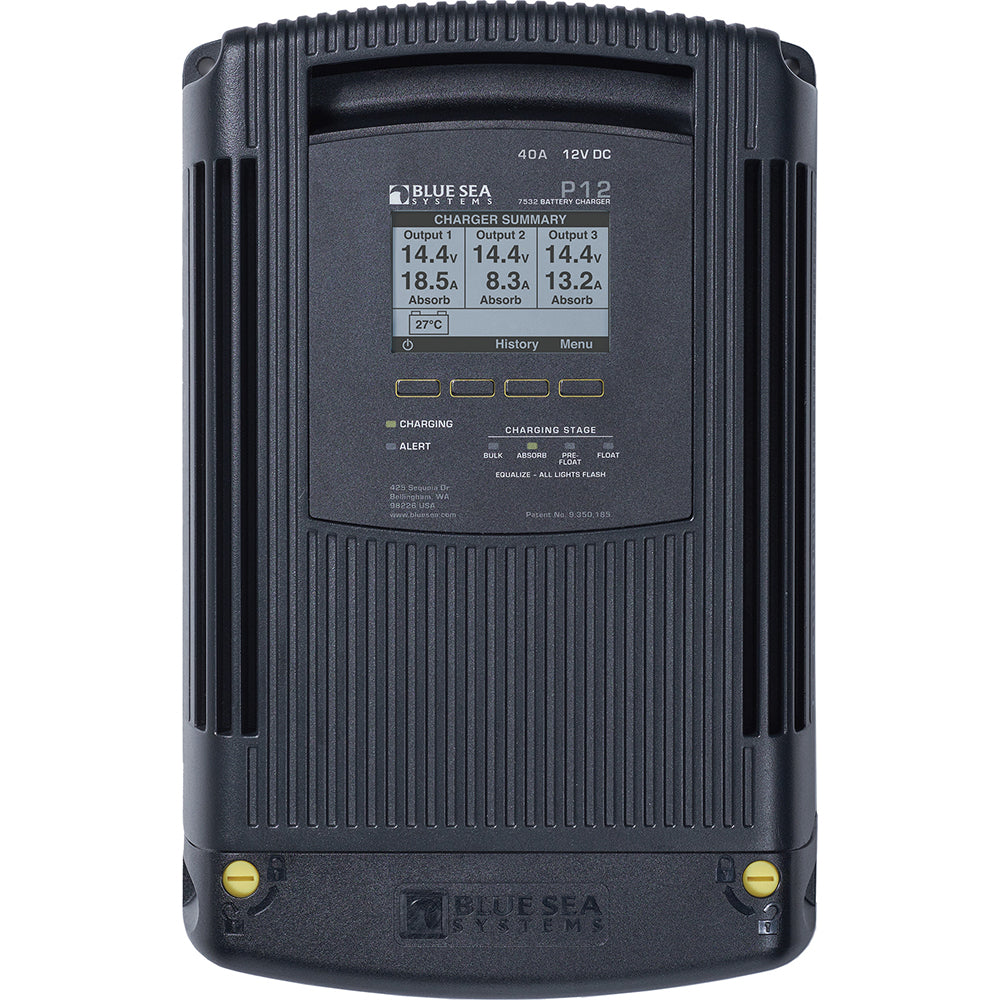

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

OM-BLUESEA-7532P12GEN2-7532

$763.30
$1,033.99 $763.30
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

3Charging Banks
40aCharger Output - Amps
12vCharger Output Voltage
NoPortable
120/240vCharger Input - Voltage

The Blue Sea Systems P12 Gen2 is a dry-mount marine battery charger for 12V DC systems with up to three battery banks. It provides 40A total output, user-defined charging profiles, diagnostic screens, and protection features suited to harsh onboard environments.

  • Output: 40A total output current
  • Battery banks: Charges up to three battery banks
  • Outputs: 1 negative and 3 positive
  • Nominal voltage: 12V DC
  • Maximum output voltage: 16V DC
  • Input voltage: 90-265V AC universal input
  • Input frequency: 45-65Hz
  • Input AC current: 7.5A at 100V AC / 3.75A at 200V AC
  • Output voltage accuracy: 0.05V
  • Typical float voltage: 13.5V DC
  • Battery types: AGM, flooded lead acid, gel, and TPPL
  • Battery bank range: Recommended up to 440Ah, with 60Ah minimum example listed
  • Charging design: Four-stage, three-output charger with PreFloat stage
  • Case: Rugged finned aluminum
  • Display: Large bright screen with English, French, German, Italian, and Spanish language options
  • System integration: Charge Coordination with Blue Sea Systems Automatic Charging Relays
  • Protection: AC over and under voltage shutdown with automatic restart, battery temperature protection, DC over voltage, reverse polarity, surge, and short circuit protection
  • Temperature range: Operating -20 degrees C to 70 degrees C; storage -30 degrees C to 80 degrees C
  • Ignition protected: Yes
  • Dimensions: 13.03 inches high x 8.46 inches wide x 3.66 inches deep
  • Weight: 13.00 lb
  • Warranty: 5 year

Specifications

Charging Banks3
Charger Output - Amps40a
Charger Output Voltage12v
PortableNo
Charger Input - Voltage120/240v
BrandBlue Sea Systems
Manufacturer part #7532
UPC632085075323
Boxed dimensions18 x 11 x 7 in
Shipping weight10.2 lb
Country of originUNITED STATES
