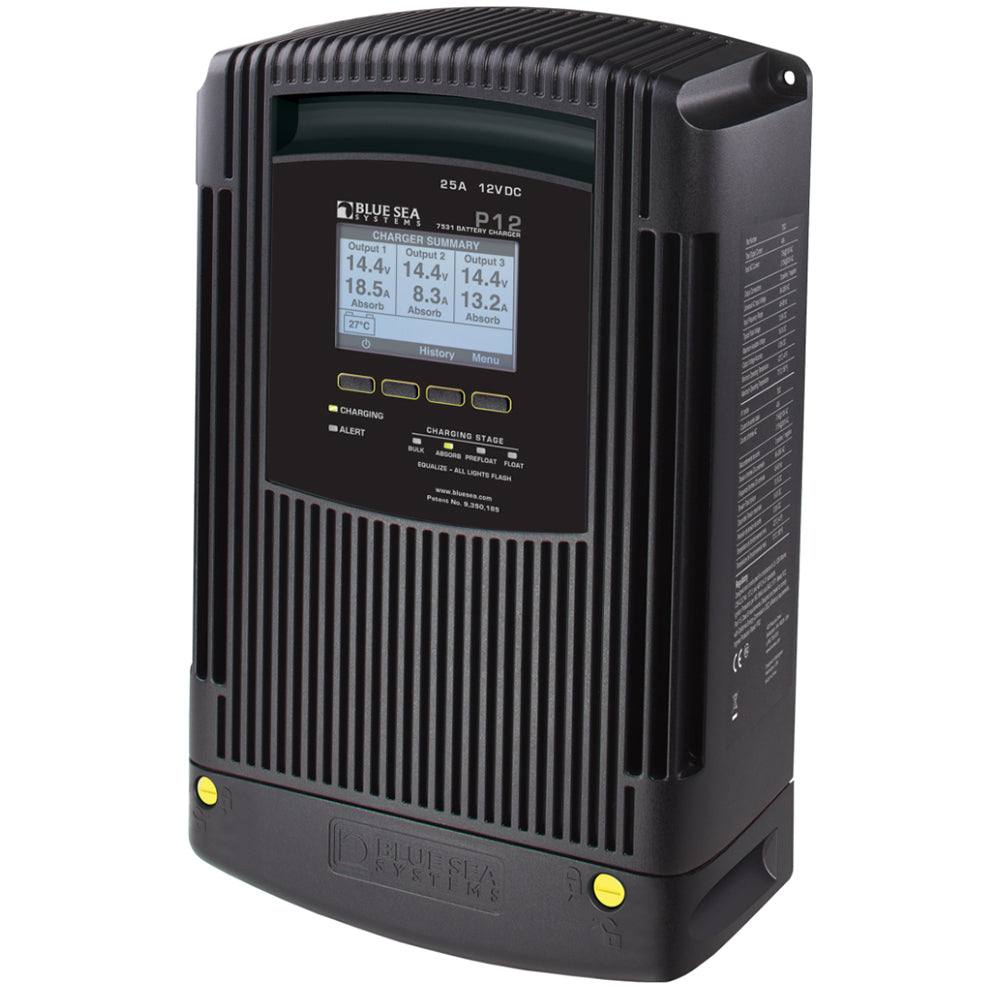

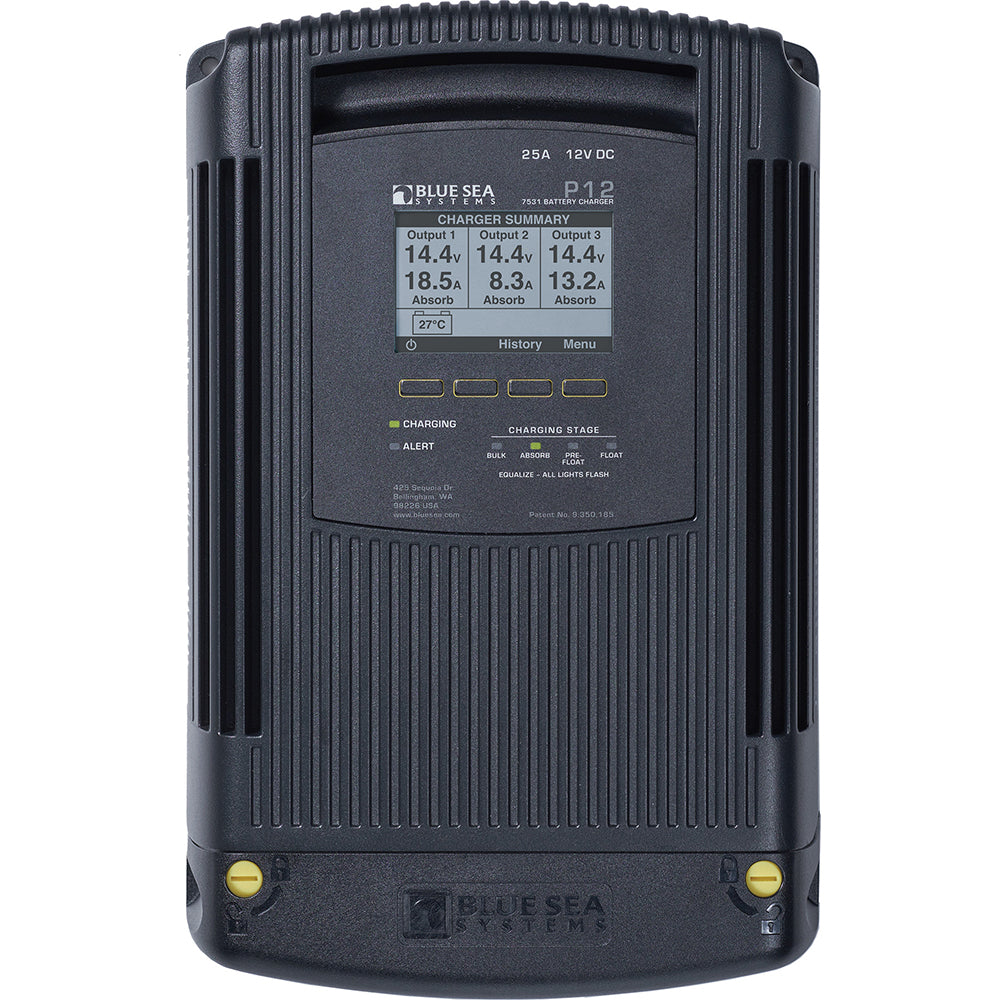

Blue Sea 7531 P12 Battery Charger - 12V DC 25A

The Blue Sea Systems 7531 P12 battery charger is a 12V DC, 25A charger for marine electrical systems that need managed charging across up to three battery banks. Its four-stage, dry-mount design includes diagnostic display functions, customizable charge profiles, and protection features for demanding environments.

• Brand: Blue Sea Systems
• Model: 7531 P12
• Charger type: Four-stage, three-output, dry-mount battery charger
• Nominal voltage: 12V DC
• Total output current: 25A
• Input AC current: 4.5A at 100V AC / 2.25A at 200V AC
• Maximum output voltage: 16V DC
• Universal AC input voltage: 90-265V AC
• AC input frequency: 45-65Hz
• Outputs: 1 negative / 3 positive
• Output voltage accuracy: 0.05V
• Typical float voltage: 13.5V DC
• Battery types: AGM, flooded lead acid, gel, TPPL
• Recommended battery bank size: 60Ah minimum / 330Ah maximum
• Operating temperature: -20 degrees C to 70 degrees C
• Storage temperature: -30 degrees C to 80 degrees C
• Ignition protected: Yes
• Case: Rugged finned aluminum
• Display: Large bright display with English, French, German, Italian, and Spanish language support
• Charging features: PreFloat stage, power factor correction, user-defined charge profiles, customizable settings, and charging for up to three battery banks
• System coordination: Charge Coordination with Blue Sea Systems Automatic Charging Relays
• Temperature compensation: Adjusts charge voltage based on battery temperature
• Protection: AC over and under voltage shutdown with automatic restart, battery over and under temperature protection, DC over voltage, reverse polarity, surge, and short circuit protection
• Dimensions: 13.03 inch H x 8.46 inch W x 3.66 inch D
• Metric dimensions: 330.96 mm H x 214.88 mm W x 92.96 mm D
• Weight: 13.00 lb / 5.9 kg
• Warranty: 5 year
