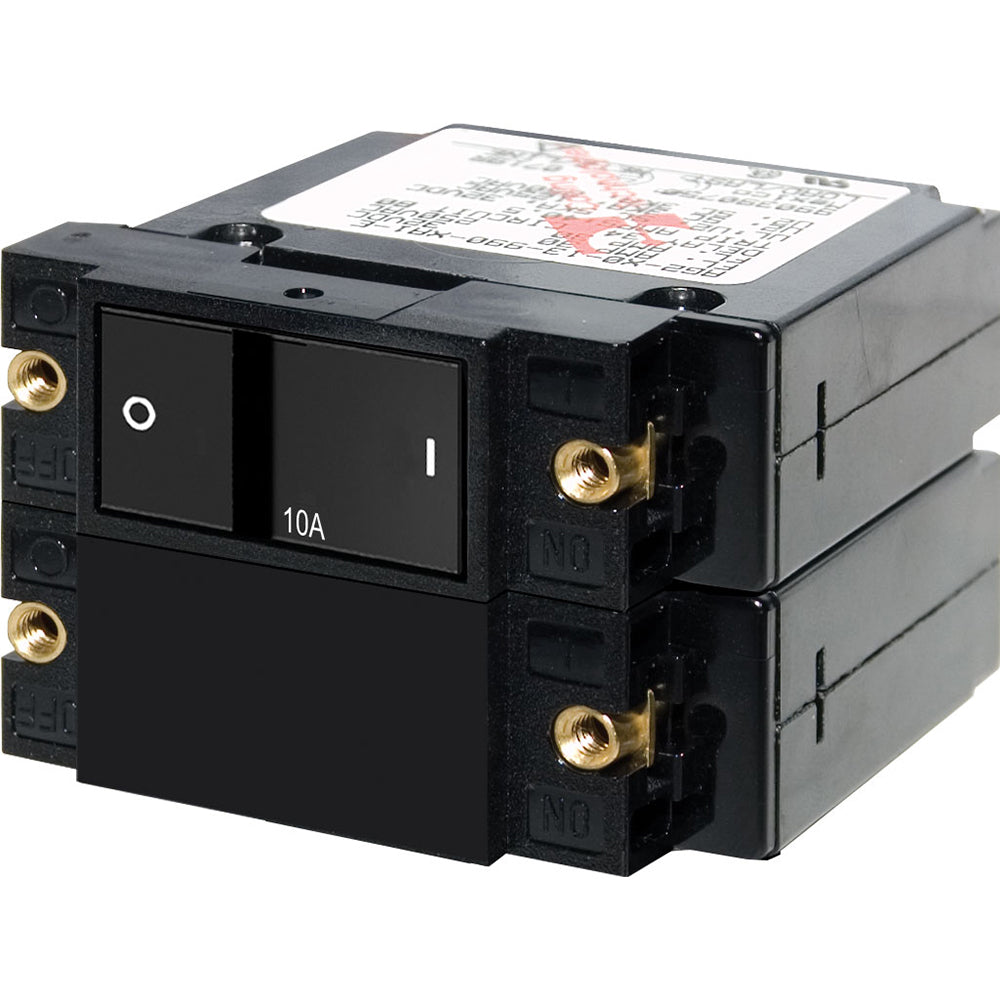

Blue Sea 7410 A-Series Flat Rocker Circuit Breaker - Double Pole - 10A

The Blue Sea Systems 7410 is an A-Series flat rocker circuit breaker for double-pole AC or DC circuit protection. Its flat rocker actuator shows the OFF position by color and uses international ON/OFF markings for flexible mounting orientation.

• Amperage: 10A AC / 10A DC
• Poles: 2
• Actuator style: Flat rocker
• Maximum voltage: 120V AC / 240V AC / 32V DC
• Circuit breaker type: Magnetic hydraulic, trip free
• Trip-free design: Cannot be held ON during a fault current condition
• Interrupt capacity: 3000A @ 240V AC / 1500A @ 240V AC TUV / 5000A @ 32V DC
• Operating temperature: -40 degrees C to 85 degrees C
• Mounting screw: #6-32 stainless steel
• Mounting screw torque: 6 in-lb (0.68 Nm)
• Screw terminal torque: 14 in-lb (1.58 Nm)
• Terminal screw: #10-32 stainless steel
• Switching cycles: 10000
• Weight: 0.38 lb (0.17 kg)
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
