• Blue Sea 7148 187 - Series Thermal Circuit Breaker - 150Amp
1 1

Blue Sea Systems

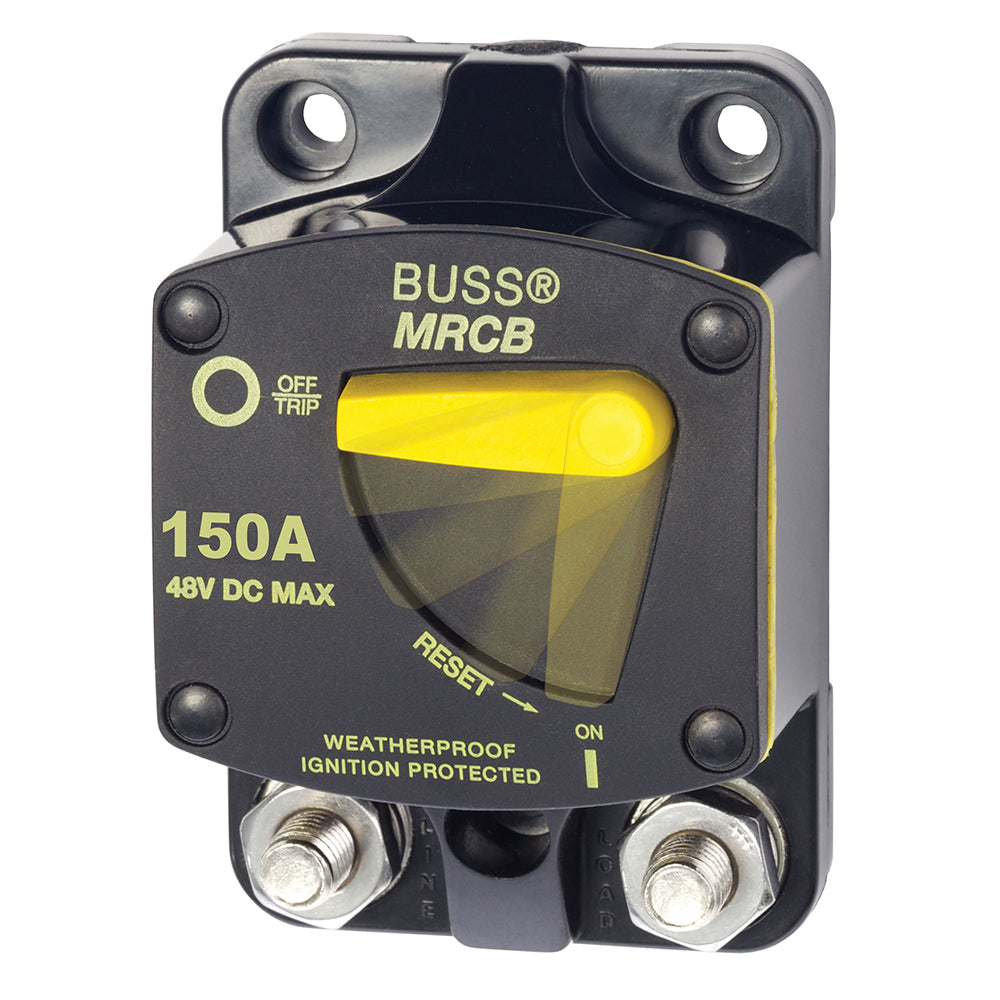

Blue Sea 7148 187 - Series Thermal Circuit Breaker - 150Amp

Blue Sea 7148 187 - Series Thermal Circuit Breaker - 150Amp

OM-BLUESEA-7148187SERIES-7148

$93.57
$125.99 $93.57
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

150aAmperage

The Blue Sea Systems 7148 is a 150 amp 187-Series thermal circuit breaker for surface mounting. It combines switching with circuit protection in one manual-reset device for DC marine electrical installations.

  • Part number: 7148
  • Amperage: 150 amp
  • Series: 187-Series
  • Mounting: surface mount with recessed mounting holes
  • Circuit breaker class: Type III, switchable/manual reset, trip free
  • Type: thermally responsive bi-metal blade
  • Case material: thermoset polyester
  • Voltage rating: 48 volts DC maximum
  • Interrupt rating: 5,000 amperes at 12 volts DC; 3,000 amperes at 24 volts DC; 1,500 amperes at 42 volts DC
  • Operating temperature: -25C to +82C
  • Terminals: robust 5/16 terminals for high torque connections
  • Protection: waterproof and ignition protected
  • Standards: components meet SAE J1171 external ignition protection requirements
  • Operation: clear single-lever control; trip-free design cannot be held on during a fault current condition
  • Status indication: large lever with vertical or horizontal orientation shows trip status
  • Warning: can expose users to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Amperage150a
BrandBlue Sea Systems
Manufacturer part #7148
UPC632085171483
Boxed dimensions8 x 5 x 2 in
Shipping weight0.55 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
