Overview

90aAmperage

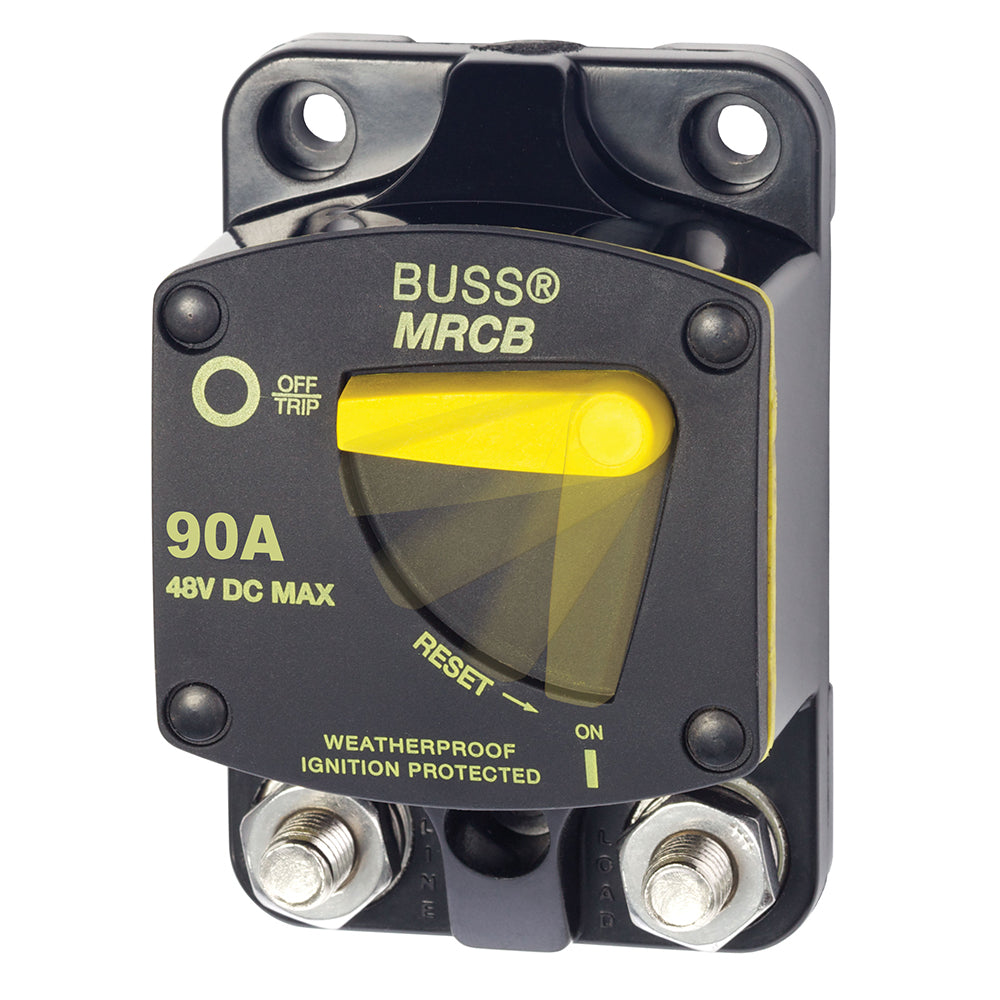

The Blue Sea Systems 7143 is a 90 amp 187-Series thermal circuit breaker for surface-mount marine electrical installations. It combines manual switching with circuit protection in one waterproof, ignition-protected breaker.

  • Brand: Blue Sea Systems
  • Part number: 7143
  • Series: 187-Series
  • Product type: Thermal circuit breaker
  • Mounting style: Surface mount
  • Amperage: 90 Amp
  • Circuit breaker class: Type III - Switchable / Manual Reset - Trip Free
  • Breaker type: Thermally responsive bi-metal blade
  • Case material: Thermoset polyester
  • Voltage rating: 48 Volts DC maximum
  • Interrupt rating: 5,000 Amperes @ 12 Volts DC; 3,000 Amperes @ 24 Volts DC; 1,500 Amperes @ 42 Volts DC
  • Operating temperature range: -25C° to +82C°
  • Ignition protection: Components meet SAE J1171 external ignition protection requirements
  • Installation use: Safe for installation aboard gasoline powered boats
  • Operation: Clear single-lever control with trip-free design that cannot be held ON during a fault current condition
  • Terminals: 5/16 terminals for high-torque connections
  • Mounting detail: Recessed mounting holes and large terminal stud clearance for heavy gauge wire lugs
  • Status indication: Large lever can be oriented vertically or horizontally to show trip status
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Amperage90a
BrandBlue Sea Systems
Manufacturer part #7143
UPC632085071431
Boxed dimensions7 x 5 x 3 in
Shipping weight0.6 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
