• Blue Sea 7138 187 - Series Thermal Circuit Breaker - 40Amp
1 1

Blue Sea Systems

Blue Sea 7138 187 - Series Thermal Circuit Breaker - 40Amp

Blue Sea 7138 187 - Series Thermal Circuit Breaker - 40Amp

OM-BLUESEA-7138187SERIES-7138

$93.57
$125.99 $93.57
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

40aAmperage

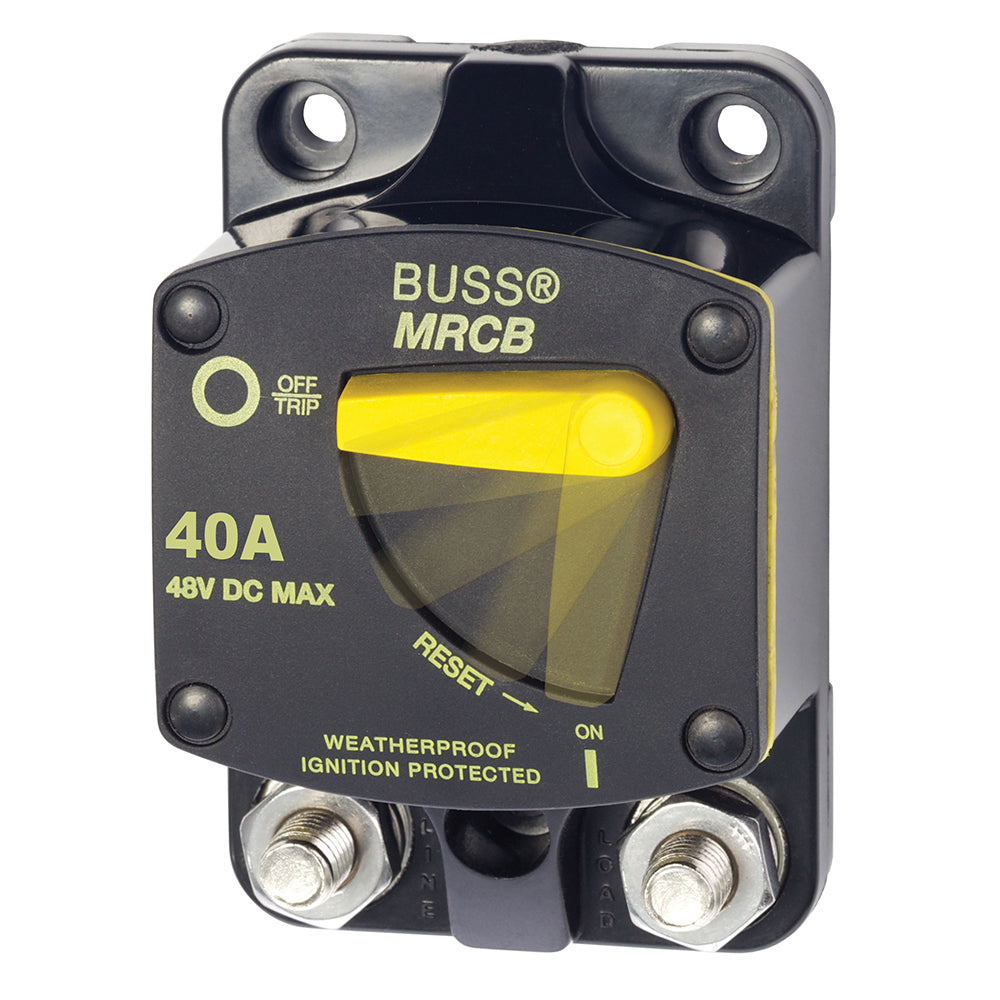

The Blue Sea Systems 7138 is a 40 amp 187-Series thermal circuit breaker for surface-mount DC electrical installations. It combines manual switching with circuit protection in one trip-free device for marine use, including gasoline powered boats.

  • Part number: 7138
  • Amperage: 40 amp
  • Series: 187-Series
  • Mounting: surface mount with recessed mounting holes
  • Circuit breaker class: Type III, switchable, manual reset, trip free
  • Breaker type: thermally responsive bi-metal blade
  • Case material: thermoset polyester
  • Voltage rating: 48 volts DC
  • Interrupt rating: 5,000 amperes at 12 volts DC; 3,000 amperes at 24 volts DC; 1,500 amperes at 42 volts DC
  • Operating temperature: -25C to +82C
  • Terminals: 5/16 terminals
  • Standards: components meet SAE J1171 external ignition protection requirements
  • Operation: single clear lever indicates trip status in vertical or horizontal orientation
  • Design: cannot be held on during a fault current condition
  • Installation: large terminal-stud clearance accepts heavy gauge wire lugs
  • Warning: this product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Amperage40a
BrandBlue Sea Systems
Manufacturer part #7138
UPC632085171384
Boxed dimensions8 x 5 x 2 in
Shipping weight0.6 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
