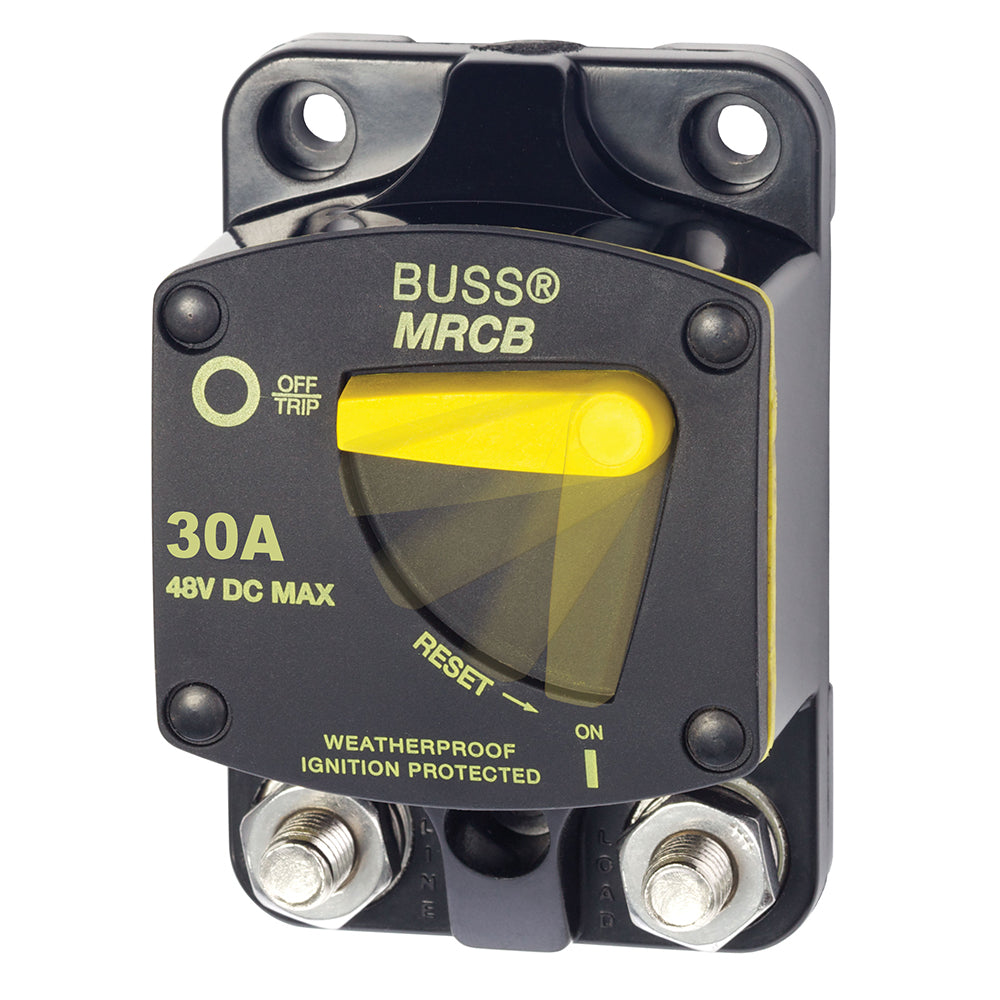

Blue Sea 7136 187 - Series Thermal Circuit Breaker - 30Amp

The Blue Sea Systems 7136 187-Series thermal circuit breaker combines manual switching with circuit protection in one surface-mount device. It is rated for 30 amps and is designed for DC marine electrical systems, including gasoline powered boats where ignition protection is required.

• Brand: Blue Sea Systems
• Part number: 7136
• Series: 187-Series
• Product type: Thermal circuit breaker
• Mounting: Surface mount
• Amperage: 30 Amp
• Circuit breaker class: Type III switchable, manual reset, trip free
• Breaker type: Thermally responsive bi-metal blade
• Case material: Thermoset polyester
• Voltage rating: 48 Volts DC maximum
• Interrupt rating: 5,000 Amperes at 12 Volts DC
• Interrupt rating: 3,000 Amperes at 24 Volts DC
• Interrupt rating: 1,500 Amperes at 42 Volts DC
• Operating temperature: -25C to +82C
• Protection: Waterproof
• Ignition protection: Components meet SAE J1171 external ignition protection requirements
• Terminals: Robust 5/16 terminals for high torque connections
• Wire lug clearance: Large clearance around terminal studs accepts heavy gauge wire lugs
• Operation: Clear single-lever operation with vertical or horizontal trip status indication
• Fault behavior: Trip free design cannot be held ON during a fault current condition
• Mounting holes: Recessed mounting holes for a clean appearance
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
