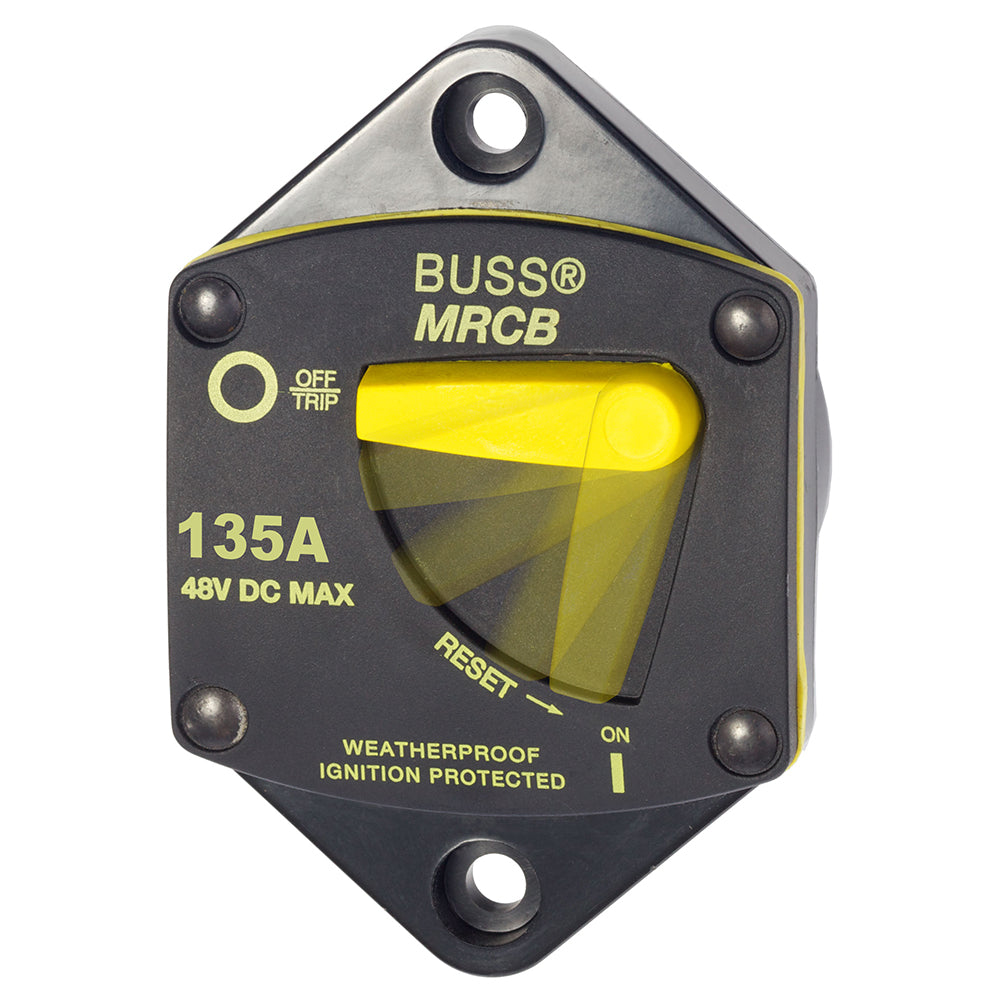

Blue Sea 7047 187 - Series Thermal Circuit Breaker - 135Amp

Blue Sea 7047 187 - Series Thermal Circuit Breaker - 135Amp

OM-BLUESEA-7047187SERIES-7047

$93.57
$125.99 $93.57
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

135aAmperage
187 - Series Thermal Circuit Breakers - Panel Mount

135 Amp Circuit Breaker

PN:  7047

Features:
  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Self-trimming case eliminates the need for mounting panels or trim bezels
  • Round case permits easy installation with standard sized hole saw
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free
Type: Thermally Responsive Bi-Metal Blade
Case Material: Thermoset Polyester
Voltage Rating: 48 Volts DC Maximum
Interrupt Rating: 5,000 Amperes @12 Volts DC
  3,000 Amperes @24 Volts DC
  1,500 Amperes @42 Volts DC
Operating Temperature Range: -25C° to +82C°

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

Amperage135a
BrandBlue Sea Systems
Manufacturer part #7047
UPC632085070472
Boxed dimensions7 x 4 x 3 in
Shipping weight1.0 lb
Country of originMEXICO
