• Blue Sea 7046 187 - Series Thermal Circuit Breaker - 120Amp
1 1

Blue Sea Systems

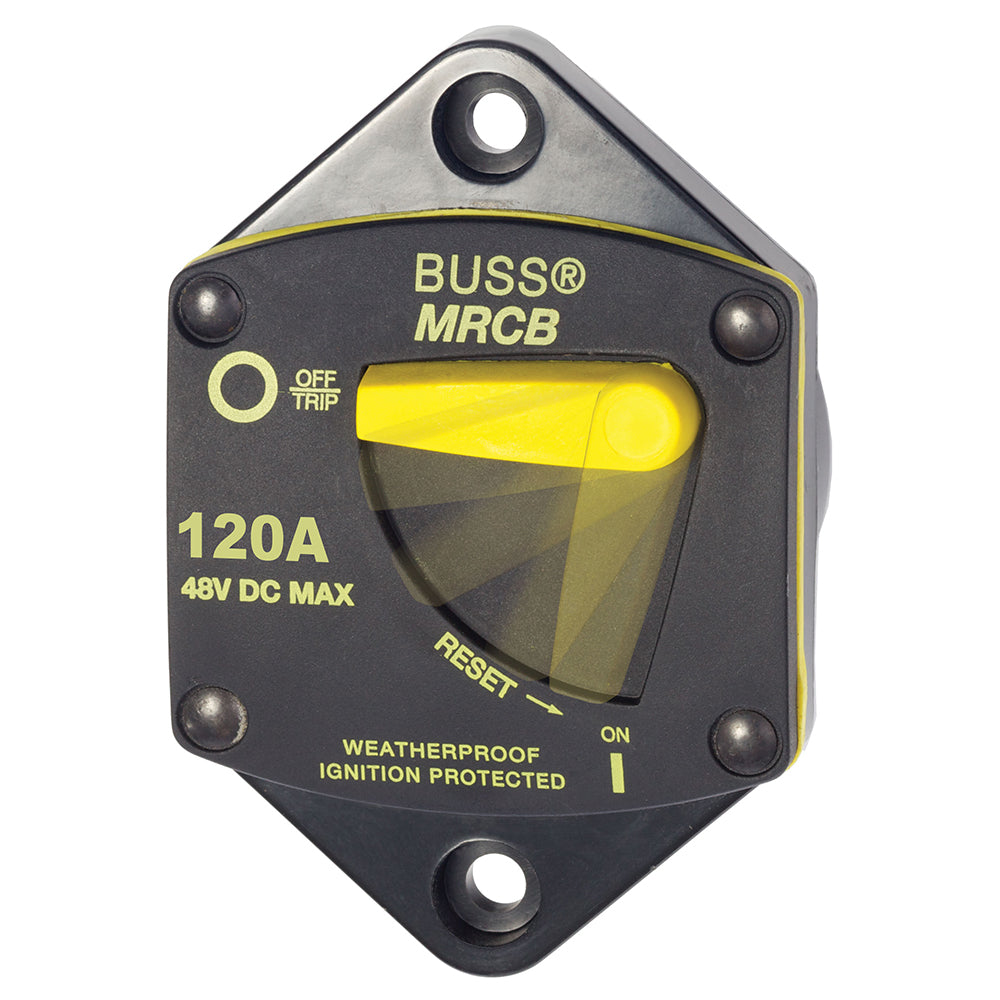

Blue Sea 7046 187 - Series Thermal Circuit Breaker - 120Amp

Blue Sea 7046 187 - Series Thermal Circuit Breaker - 120Amp

OM-BLUESEA-7046187SERIES-7046

$93.57
$125.99 $93.57
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

120aAmperage

The Blue Sea Systems 7046 is a 187-Series panel-mount thermal circuit breaker rated at 120 amps. It combines switching and circuit protection in one manual-reset device for DC marine electrical systems, including gasoline-powered boats where ignition protection is required.

  • Part number: 7046
  • Series: 187-Series
  • Mounting style: Panel mount
  • Amperage: 120 Amp
  • Circuit breaker class: Type III, switchable / manual reset / trip free
  • Type: Thermally responsive bi-metal blade
  • Voltage rating: 48 Volts DC maximum
  • Maximum interrupt rating: 5,000 Amperes @ 12 Volts DC / 3,000 Amperes @ 24 Volts DC / 1,500 Amperes @ 42 Volts DC
  • Operating temperature range: -25C degrees to +82C degrees
  • Case material: Thermoset polyester
  • Terminals: 5/16 terminals
  • Ignition protection: All components meet SAE J1171 external ignition protection requirements
  • Features: Waterproof construction, recessed mounting holes, self-trimming case, round case, and trip-free operation
  • Lever: Large lever supports vertical or horizontal orientation and indicates trip status
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects or other reproductive harm.

Specifications

Amperage120a
BrandBlue Sea Systems
Manufacturer part #7046
UPC632085070465
Boxed dimensions8 x 5 x 2 in
Shipping weight0.5 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
