Blue Sea Systems

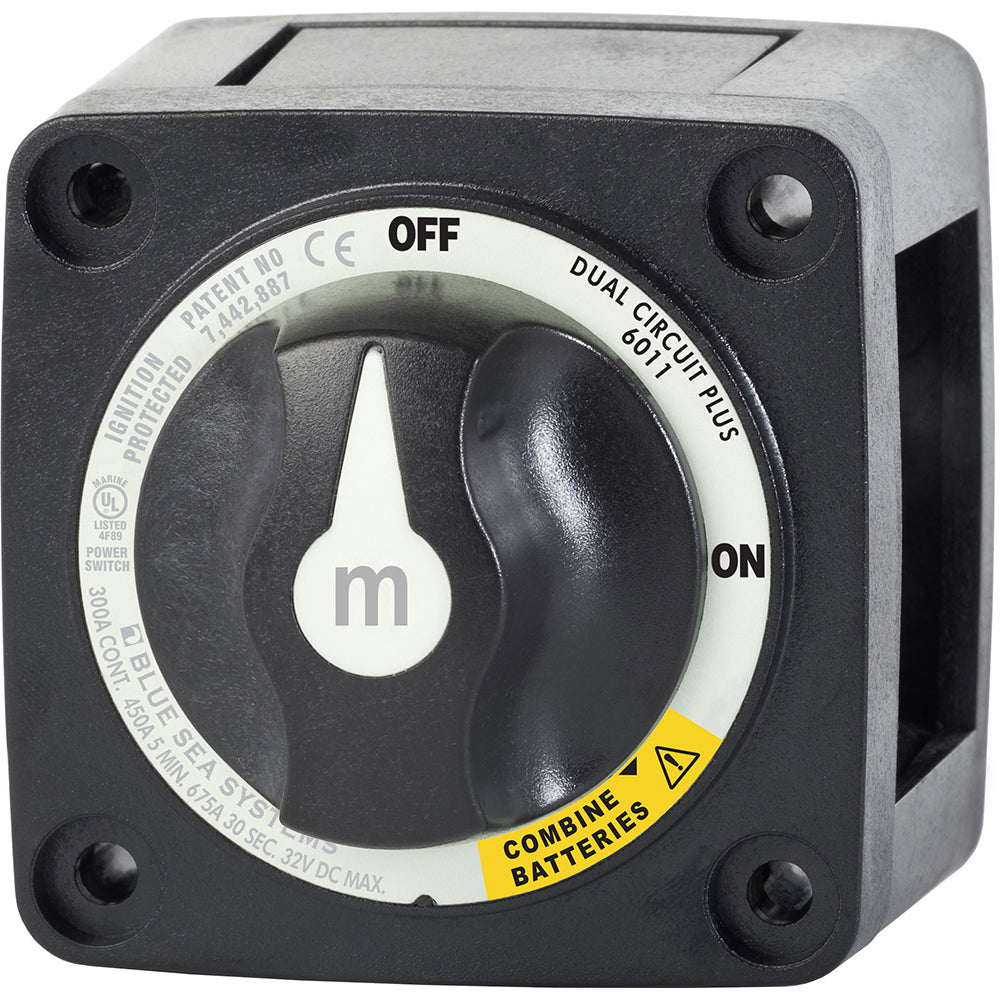

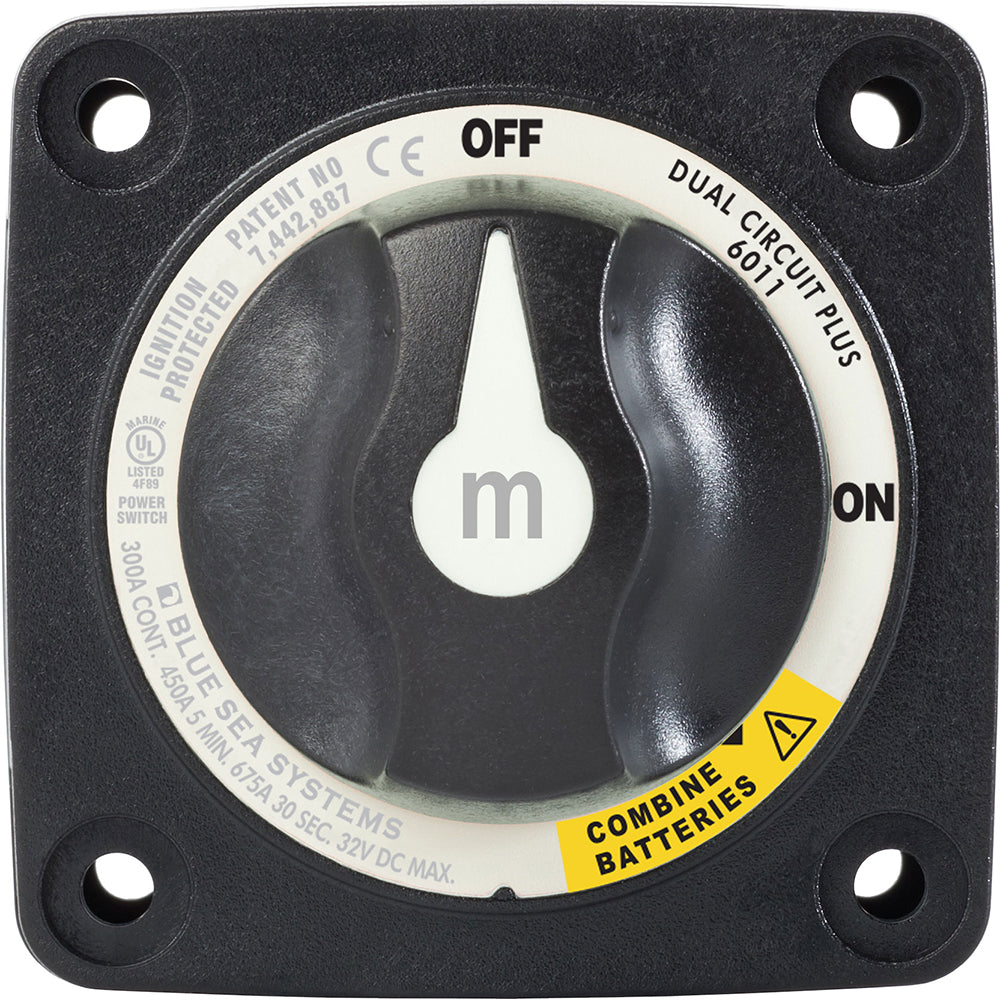

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black

OM-BLUESEA-6011200MSERIES-6011200

$49.12
$65.99 $49.12
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NoAFD
3Positions
300aContinuous Amperage

The Blue Sea Systems 6011200 m-Series Battery Switch Dual Circuit Plus is a black marine battery switch for two isolated battery banks. It can switch both circuits at the same time or combine battery banks to feed all loads, with make-before-break contacts to avoid power interruption during switching.

  • Part number: 6011200
  • Switch type: Dual Circuit Plus
  • Color: black
  • Switch positions: 3
  • Battery combine: yes
  • Alternator field disconnect: no
  • Maximum voltage: 32V DC
  • Continuous rating: 300A
  • Intermittent rating: 450A for 5 minutes
  • Cranking rating: 1000A for 10 seconds; 650A for 1 minute
  • Battery inputs: 2
  • Cable clearance for 4/0 AWG cables: 1.12in (28.45 mm)
  • Cable size to meet ratings: 4/0 AWG (120mm²)
  • Mounting holes: accept #10 screw

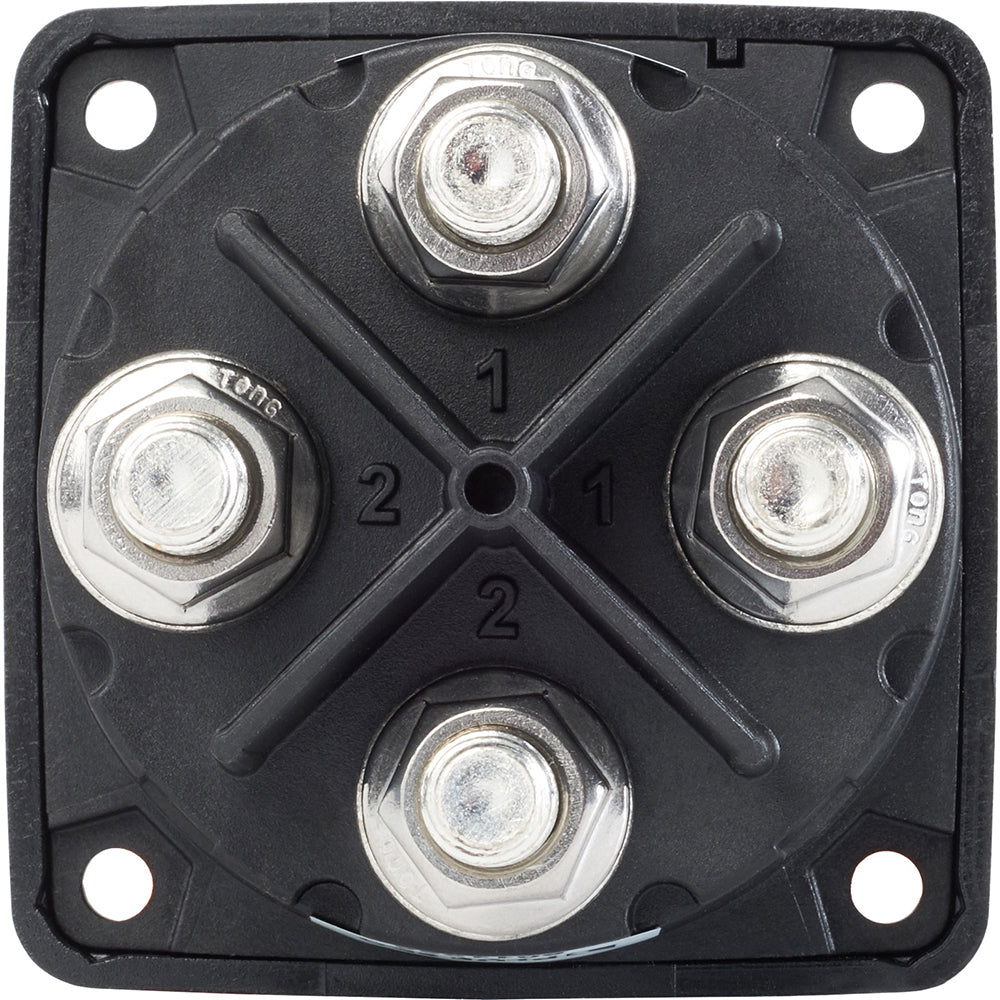

  • Terminal stud size: 3/8"-16 (M10)
  • Terminal stud torque: 120 in-lb (13.56 Nm)
  • Weight: 0.80lb (0.36 kg)
  • Warning: California Proposition 65 warning for di(2-ethylhexyl)phthalate (DEHP)

Specifications

AFDNo
Positions3
Continuous Amperage300a
BrandBlue Sea Systems
Manufacturer part #6011200
UPC632085601126
Boxed dimensions7 x 4 x 3 in
Shipping weight0.6 lb
Country of originUNITED STATES
