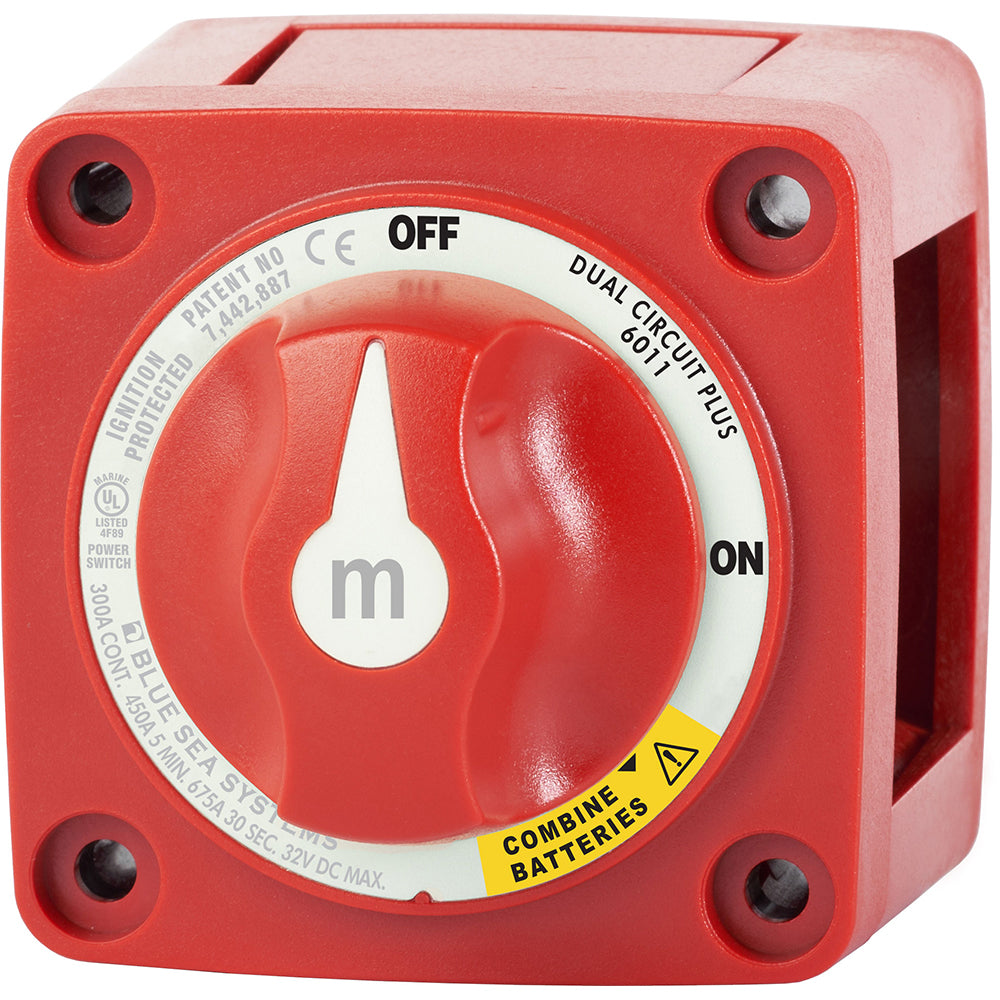

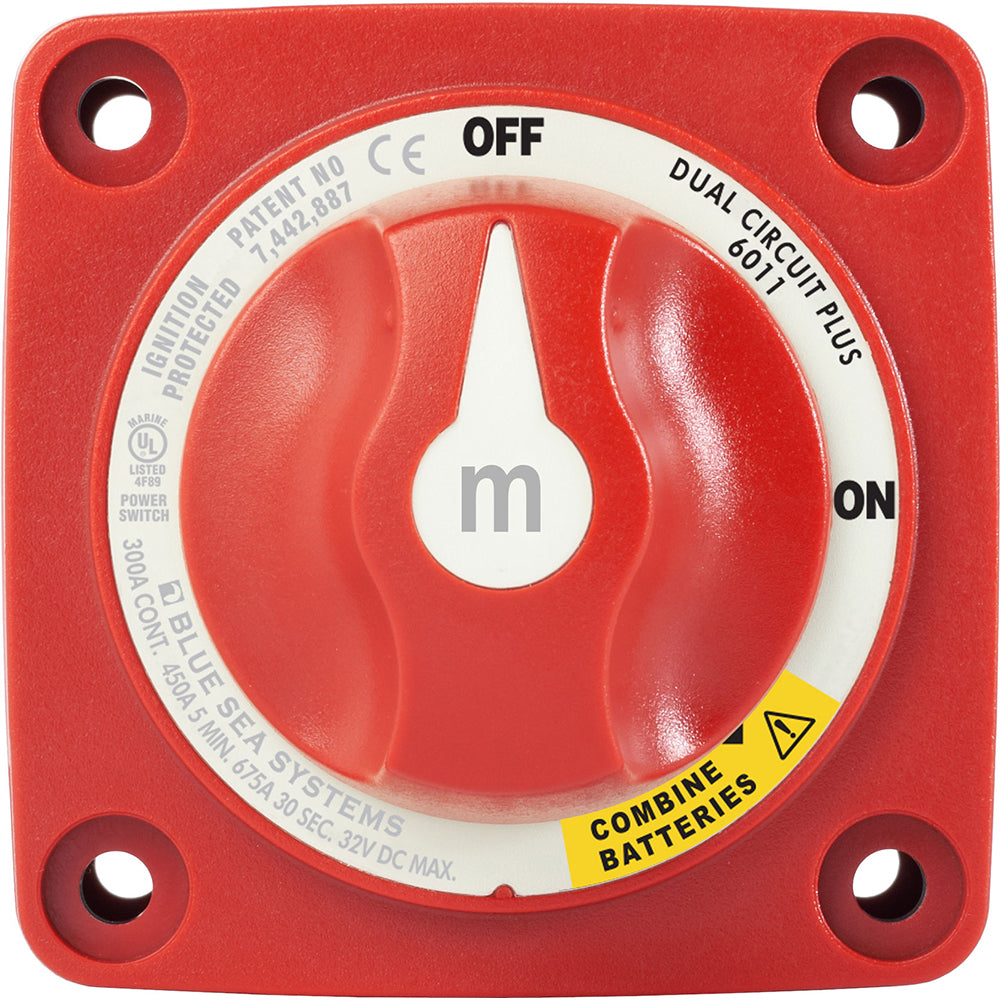

Blue Sea 6011 m-Series (Mini) Battery Switch Dual Circuit Plus

The Blue Sea Systems 6011 m-Series Dual Circuit Plus battery switch controls two battery banks with one ON/OFF switch while keeping the banks isolated. Its combine batteries function can connect both banks when the start battery is low, making it useful for marine or RV electrical systems.

• Model: 6011 m-Series (Mini) Dual Circuit Plus
• Function: Switches two battery banks at the same time while maintaining battery bank isolation
• Emergency function: Combine Batteries setting can combine two banks when the start battery is low

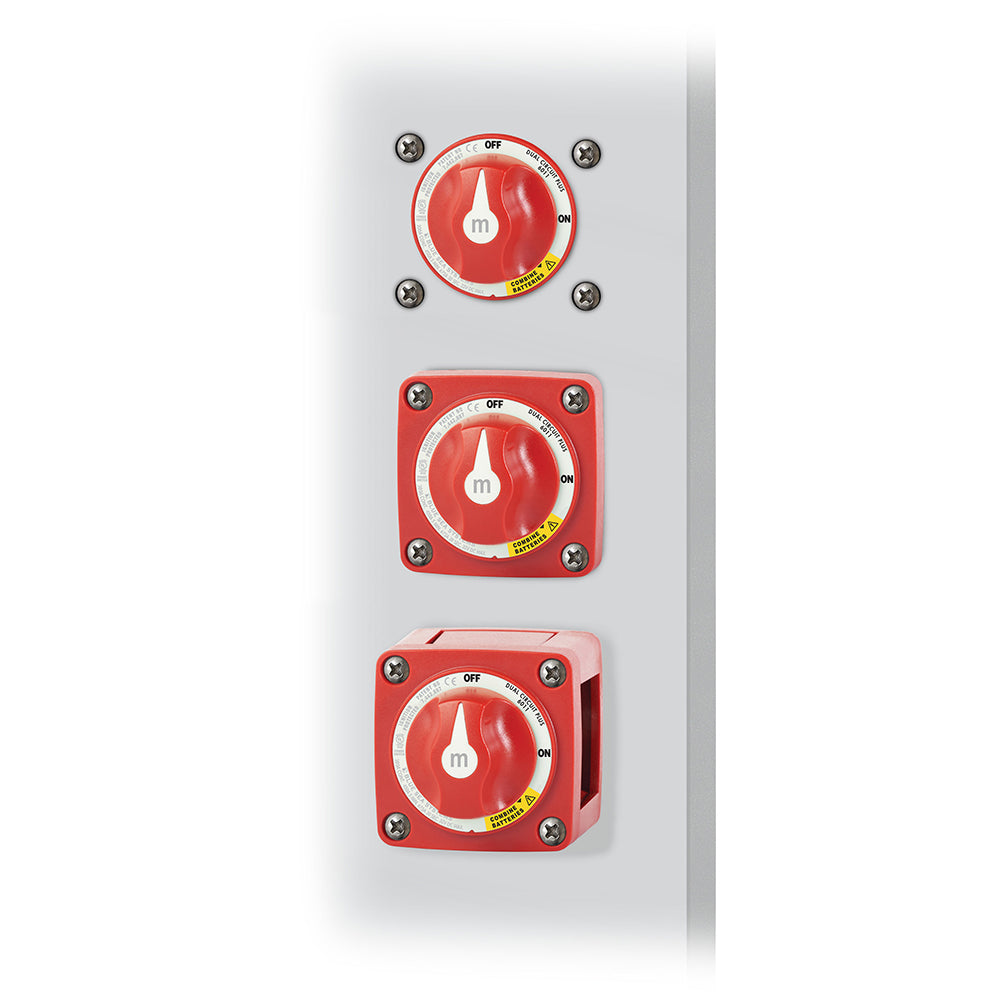

• Installation: Case supports surface, front panel, or rear panel mounting
• Ignition protection: Safe for installation aboard gasoline powered boats

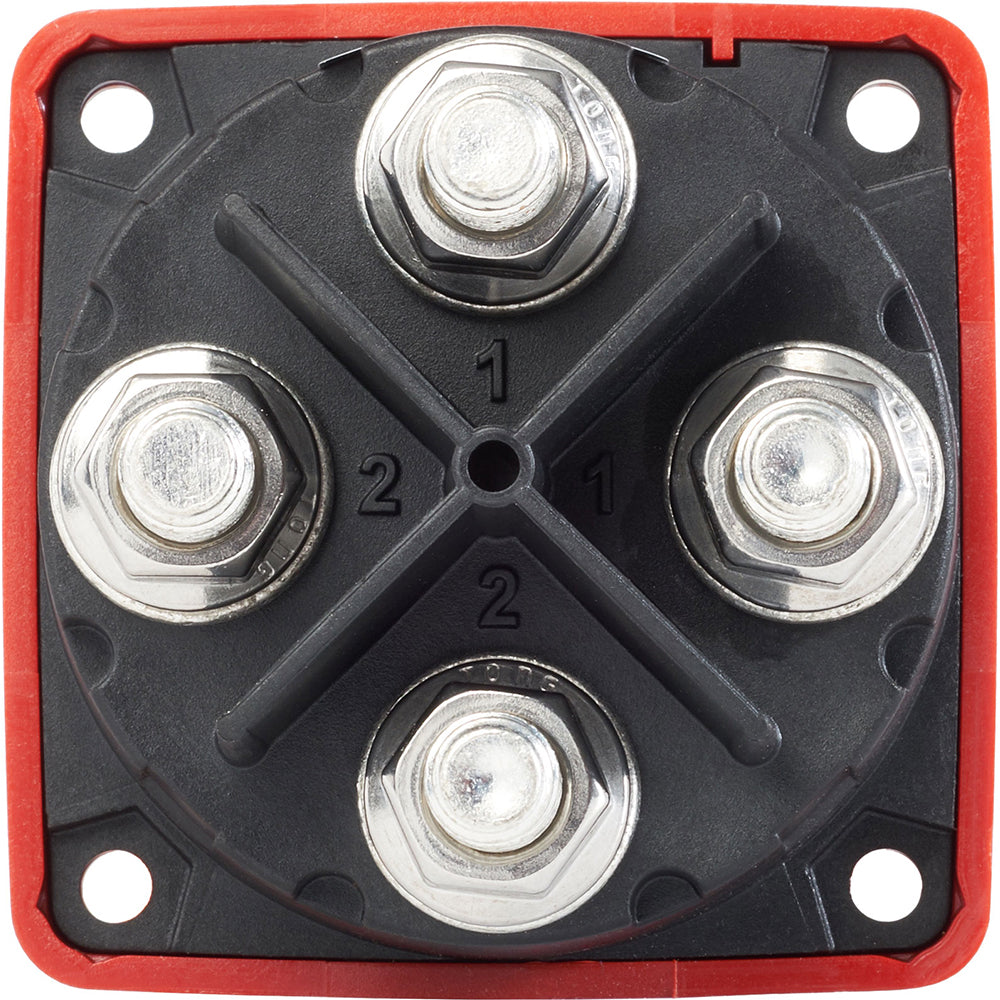

• Contacts: Isolating cover with snap-on sections protects rear contacts
• Studs: 3/8"-16 tin-plated copper studs
• Terminal fit: Accepts 3/8" and M10 ring terminals
• Stud length: 7/8" (22.22mm) to accept multiple cable terminals
• Materials: Non-corrosive marine grade metals and reinforced polycarbonate
• Controls: Tactile knob position textures, international ON/OFF legends, retained removable key or knob, and ICON label set
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
