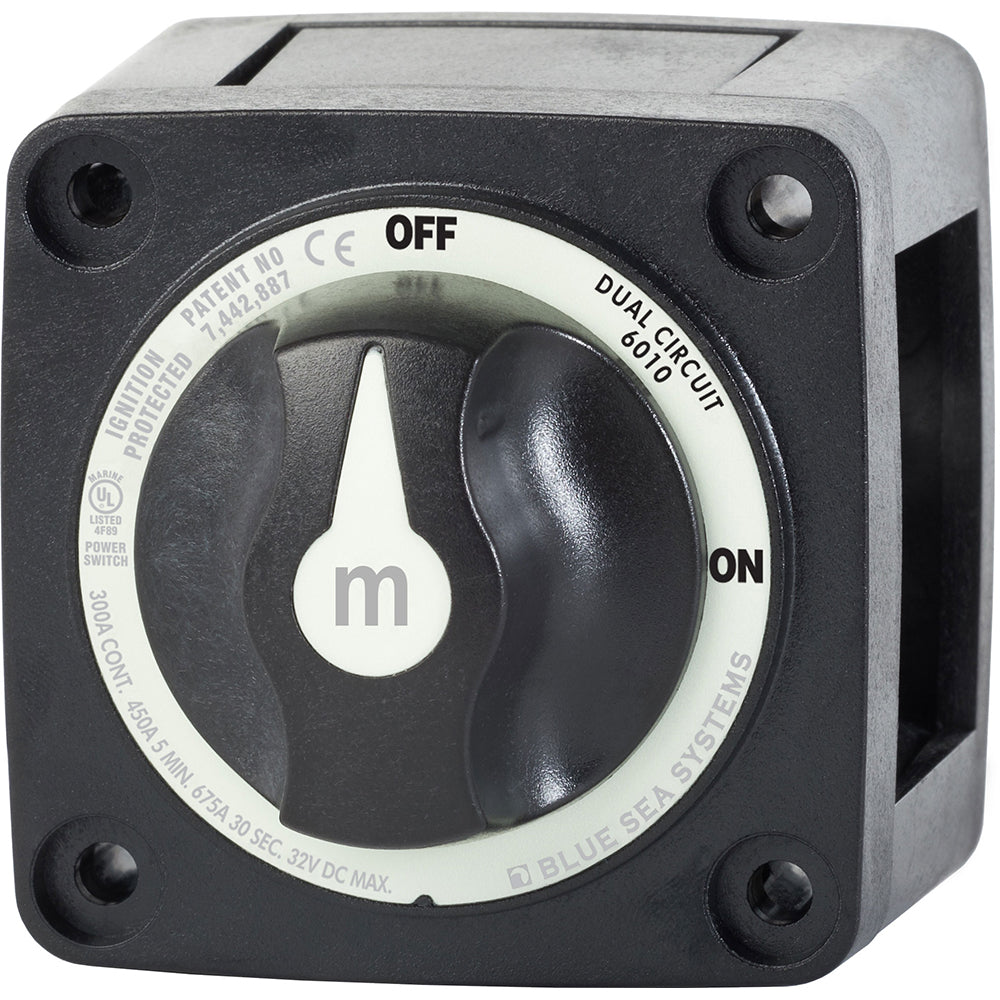

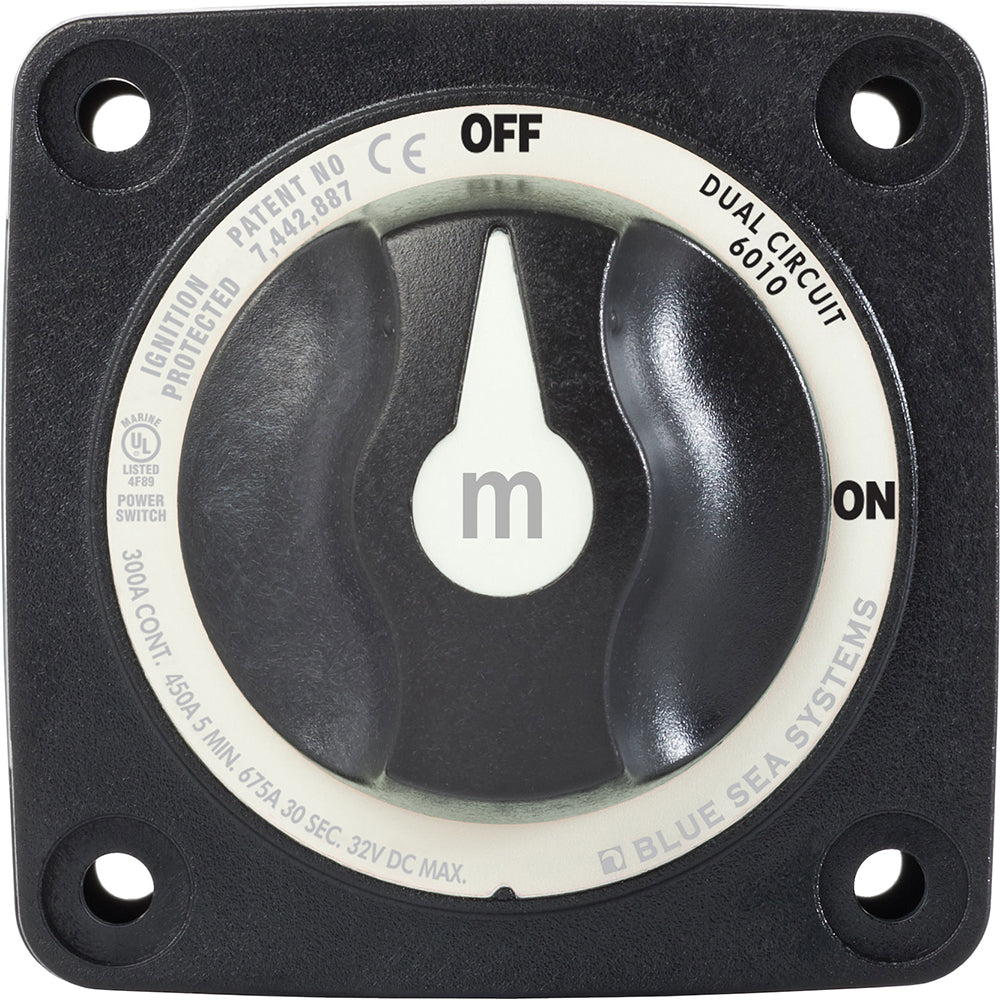

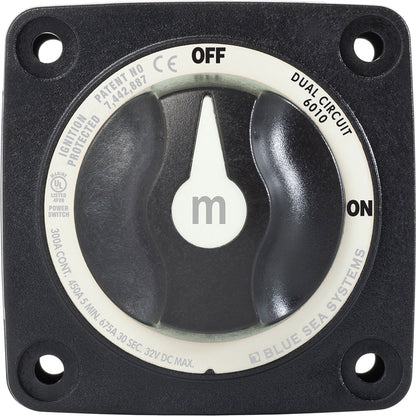

Blue Sea 6010200 Battery Switch Dual Circuit - Black

Blue Sea 6010200 Battery Switch Dual Circuit - Black

OM-BLUESEA-6010200BATTERY-6010200

$57.08
$79.99 $57.08
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

NoAFD
300aContinuous Amperage

The Blue Sea Systems 6010200 is a black m-Series mini battery switch for dual-circuit marine electrical systems. It switches two isolated battery banks at the same time while keeping the banks separate.

  • Brand: Blue Sea Systems
  • Part number: 6010200
  • Product type: m-Series mini dual circuit battery switch
  • Color: Black
  • Switch type: Dual circuit
  • Switch positions: 2
  • Battery combine: No
  • Alternator field disconnect: No
  • Maximum voltage: 32V DC
  • Continuous rating: 300A
  • Intermittent rating: 450A for 5 minutes
  • Cranking rating: 1000A for 10 seconds; 650A for 1 minute
  • Battery inputs: 2
  • Cable clearance for 4/0 AWG cables: 1.12 in (28.45 mm)
  • Cable size to meet ratings: 4/0 AWG (120mm²)
  • Mounting holes: Accept #10 screw

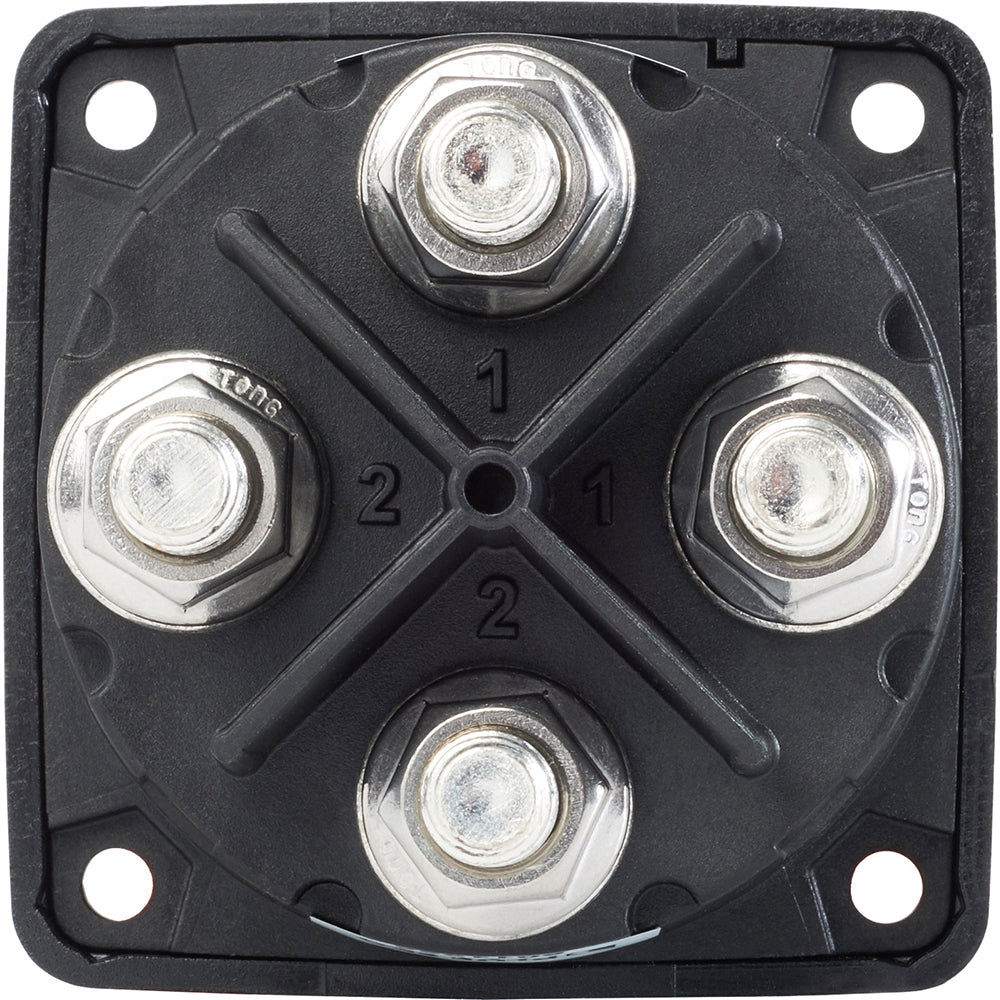

  • Terminal stud size: 3/8"-16 (M10)
  • Terminal stud torque: 120 in-lb (13.56 Nm)
  • Weight: 0.80 lb (0.36 kg)
  • California Proposition 65: This product can expose you to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

AFDNo
Continuous Amperage300a
BrandBlue Sea Systems
Manufacturer part #6010200
UPC632085601027
Boxed dimensions7 x 4 x 3 in
Shipping weight0.6 lb
Country of originUS
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
