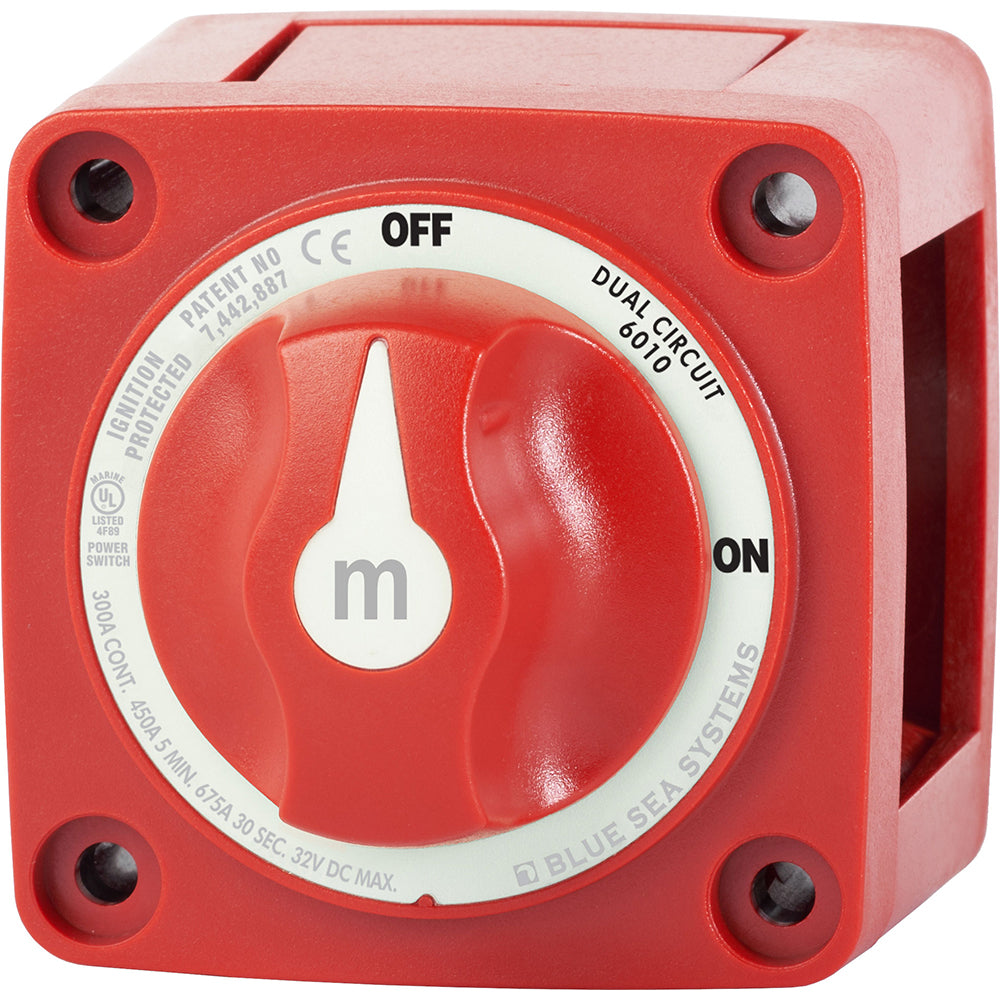

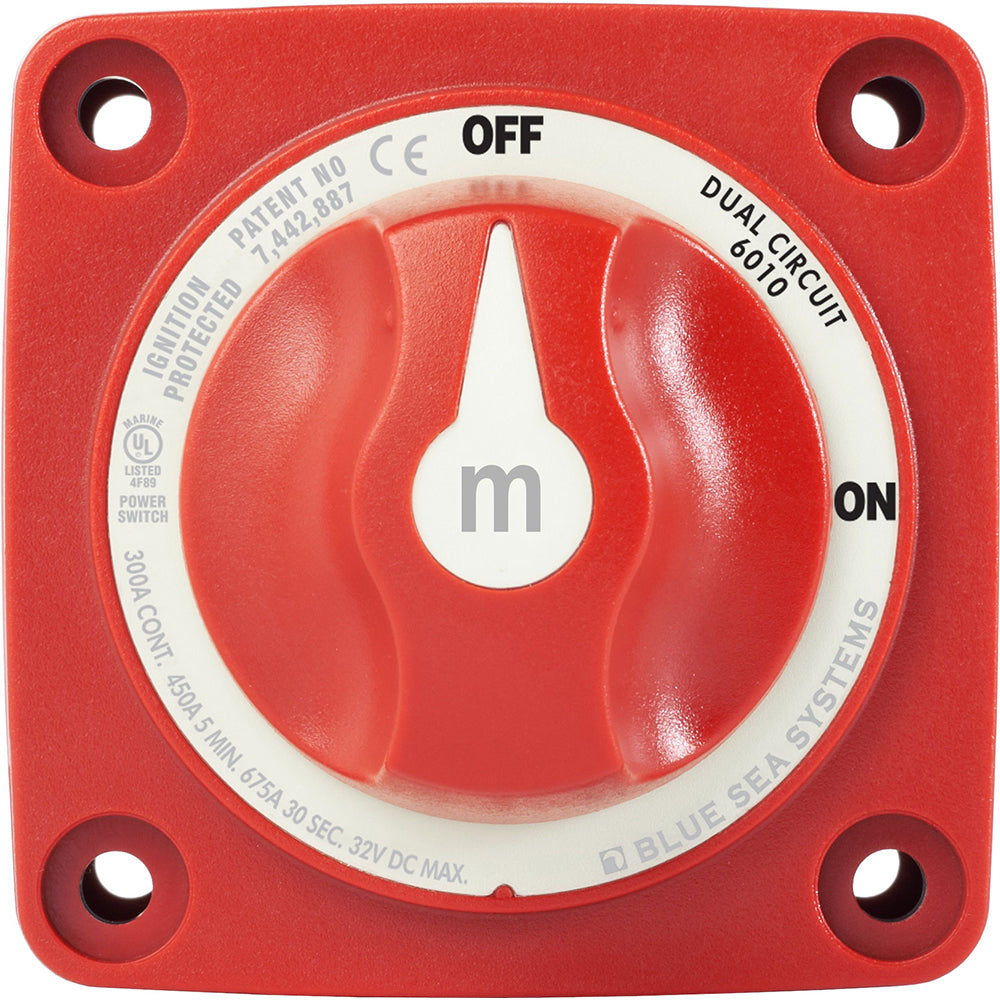

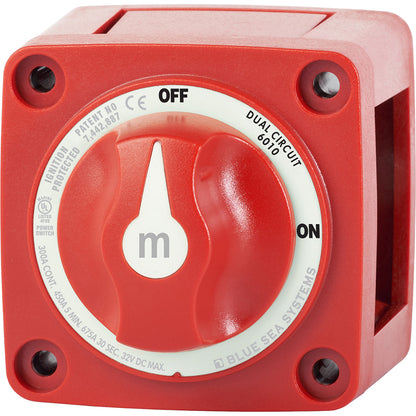

Blue Sea 6010 m-Series (Mini) Battery Switch Dual Circuit

The Blue Sea Systems 6010 m-Series Mini Battery Switch is a dual-circuit ON/OFF switch for marine and RV electrical systems. It switches positive and negative lines at the same time and can also control circuits with different voltages, such as 12V and 24V.

• Function: Dual-circuit ON/OFF battery switch
• Use: Switches both positive and negative lines simultaneously for double pole switching requirements
• Voltage use: Can switch different-voltage circuits, including 12V and 24V, at the same time

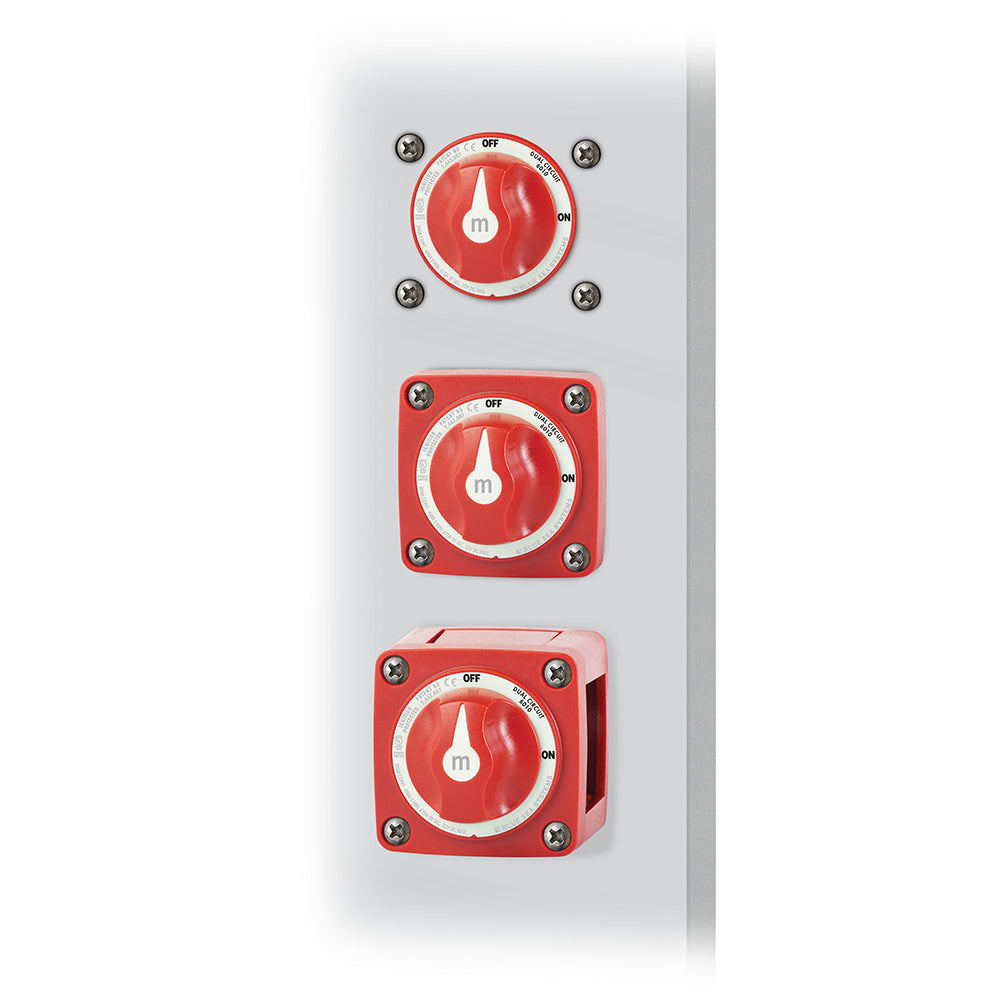

• Installation: Case supports surface, front panel, or rear panel mounting
• Protection: Ignition protected for installation aboard gasoline powered boats
• Contacts: Isolating cover with snap-on sections protects rear contacts

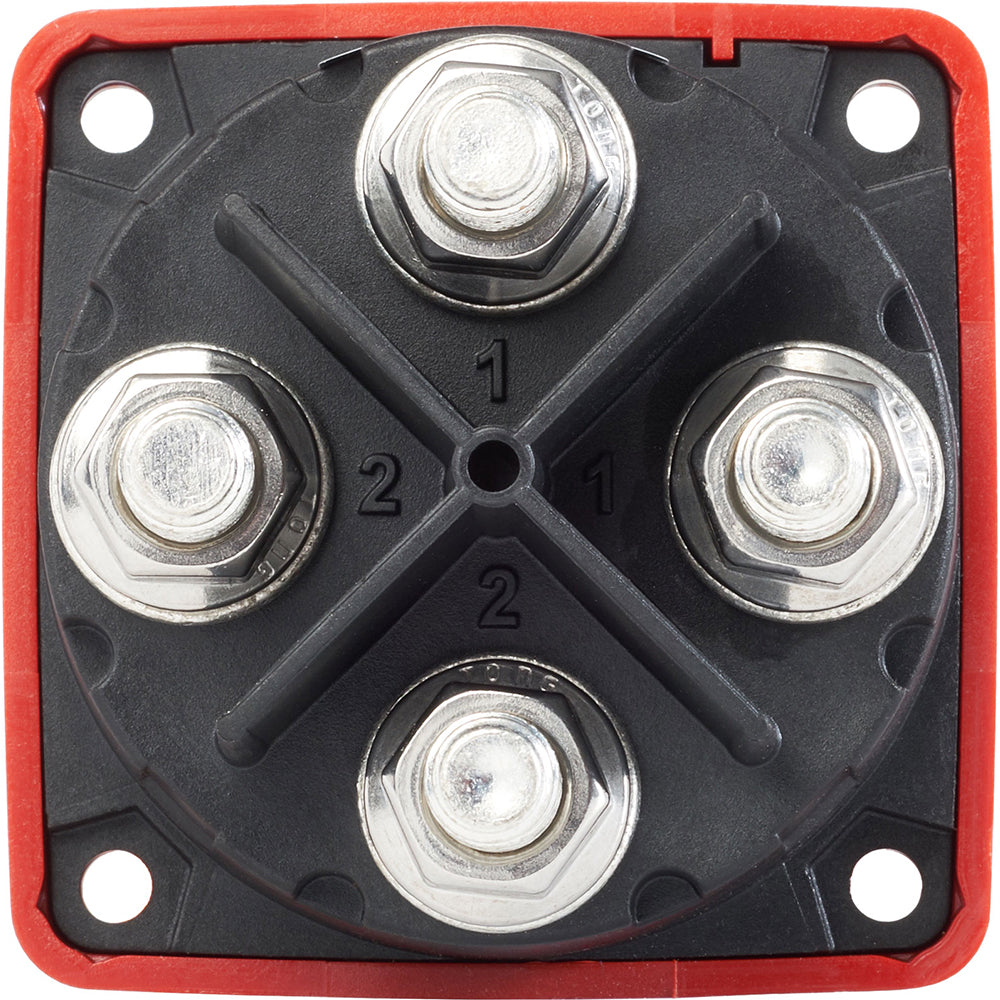

• Studs: 3/8"-16 tin-plated copper studs accept 3/8" and M10 ring terminals
• Stud length: 7/8" (22.22mm) for multiple cable terminals
• Materials: Non-corrosive marine grade metals and reinforced polycarbonate housing
• Operation: Tactile knob textures indicate position by feel
• Labeling: Includes international ON/OFF legends and ICON label set for circuit identification
• Key: Removable key or knob remains positively retained
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
