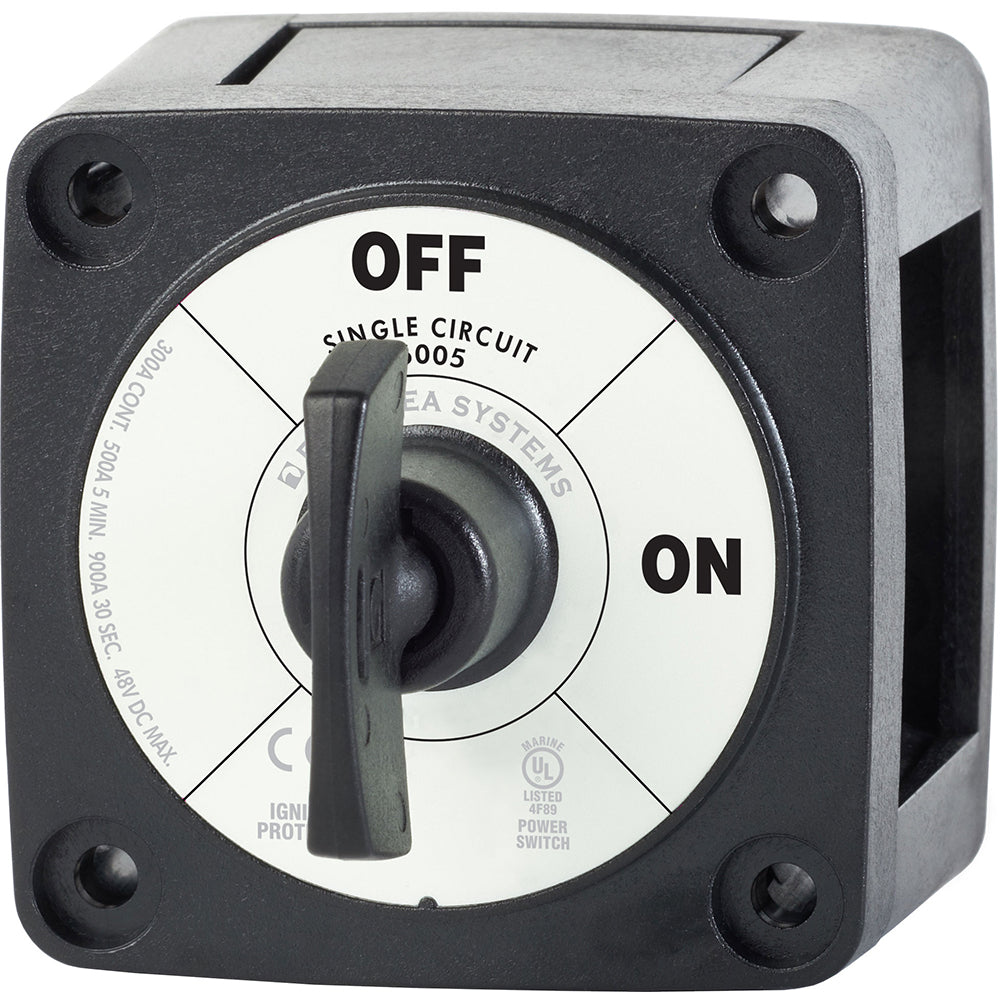

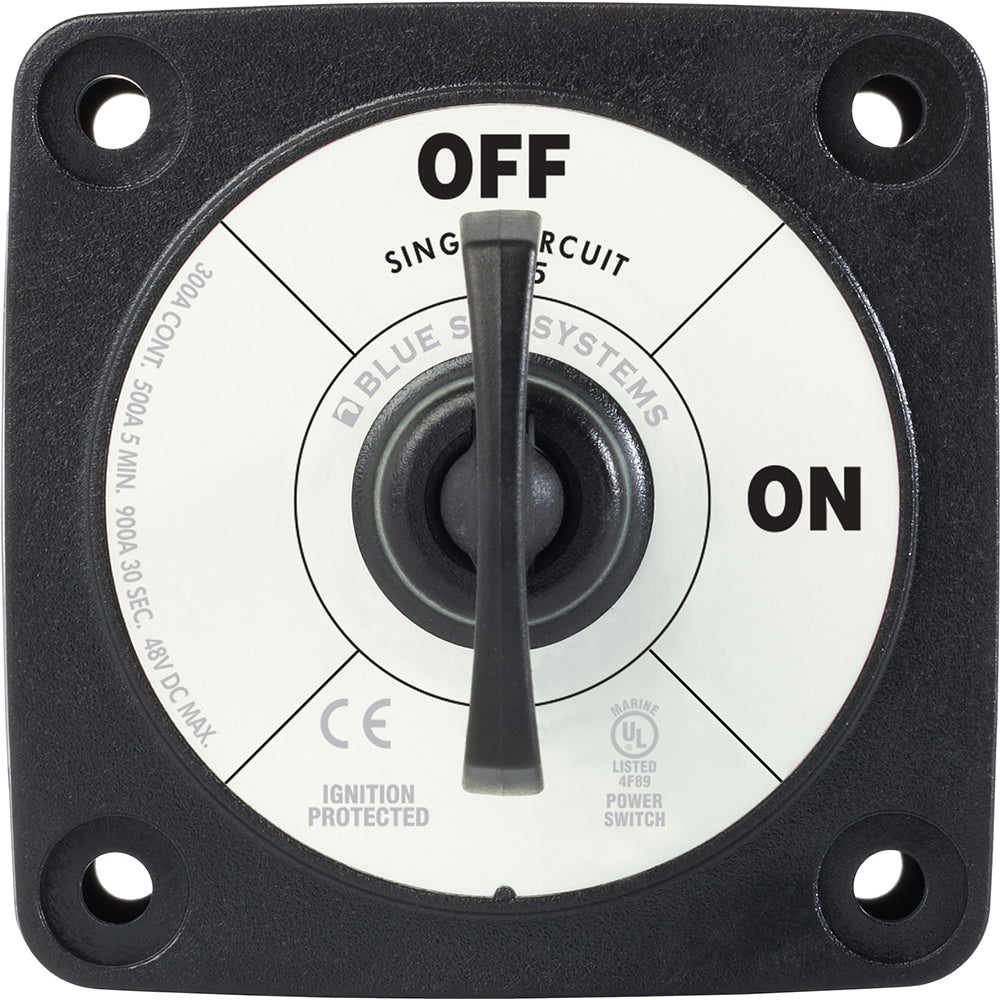

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black

OM-BLUESEA-6005200BATTERY-6005200

$34.36
$39.99 $34.36
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NoAFD
300aContinuous Amperage

The Blue Sea Systems 6005200 is a compact m-Series battery switch for controlling one battery feeding one load group. It is intended for marine electrical installations, including gasoline-powered boats where ignition protection is required.

  • Switch type: Single circuit ON-OFF
  • Color: Black
  • Positions: 2
  • Maximum voltage: 48V DC
  • Continuous rating: 300A
  • Intermittent rating: 500A for 5 minutes
  • Cranking rating: 1500A for 10 seconds; 775A for 1 minute
  • Battery inputs: 1

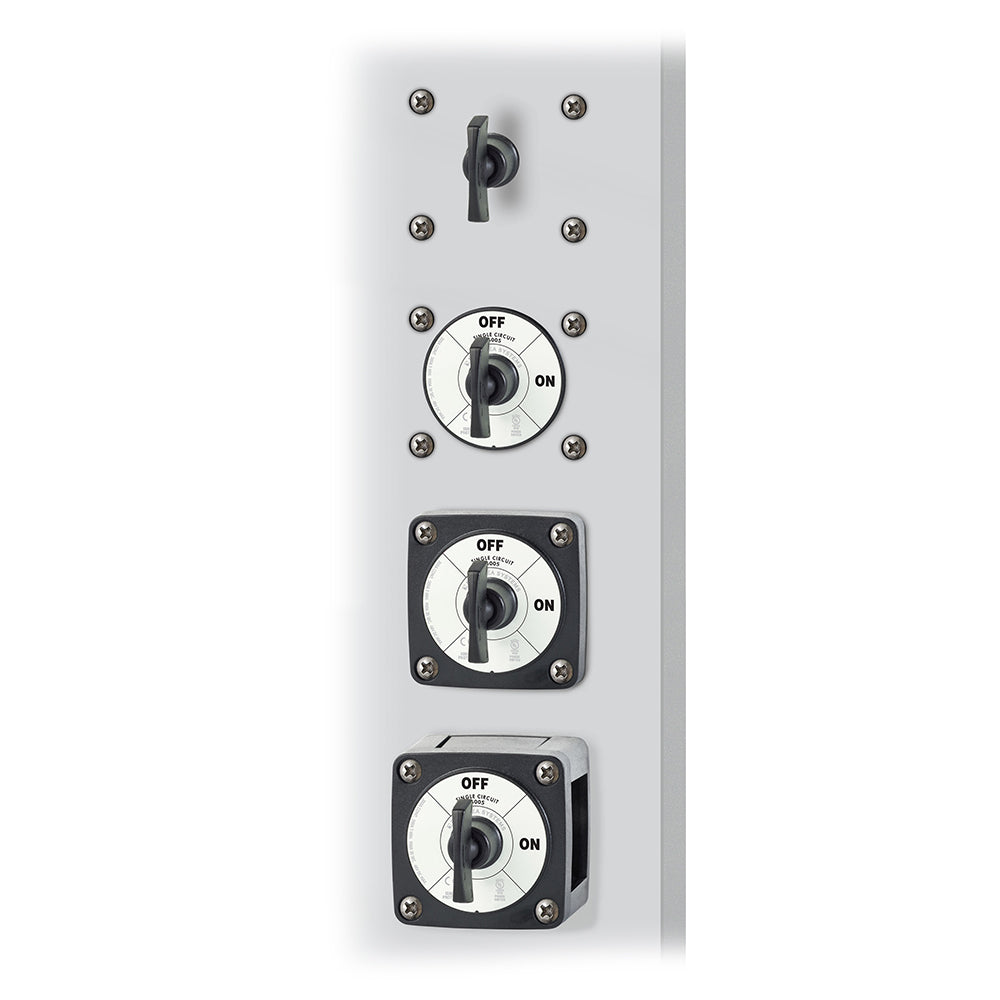

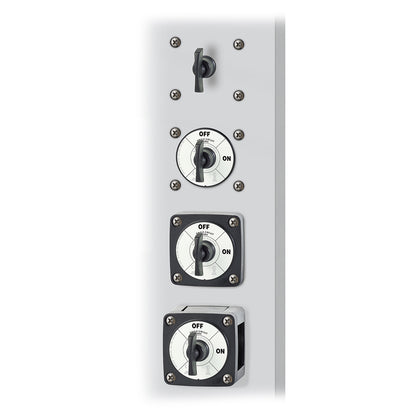

  • Mounting: Surface, front panel, or rear panel installation

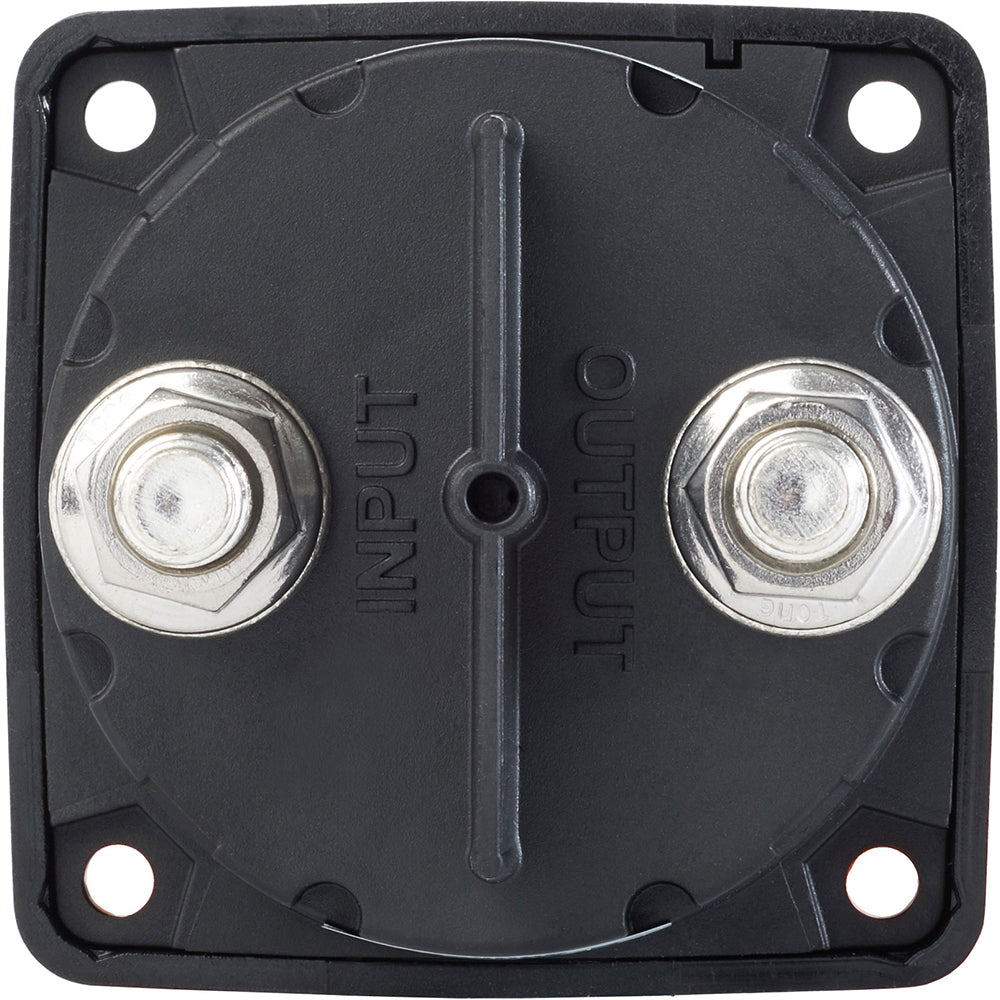

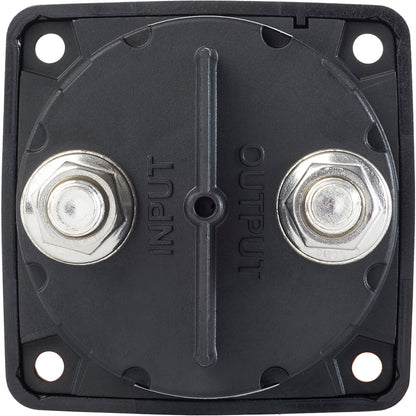

  • Rear protection: Isolating cover with snap-on sections for rear contacts
  • Cable clearance: 1.12 in. for 4/0 AWG cable
  • Cable size to meet ratings: 4/0 AWG / 120mm²
  • Mounting holes: Accept #10 screws
  • Terminal studs: 3/8 in.-16 / M10
  • Terminal stud torque: 120 in-lb / 13.56 Nm
  • Weight: 0.62 lb / 0.28 kg
  • Battery combine: No
  • Alternator field disconnect: No

Specifications

AFDNo
Continuous Amperage300a
BrandBlue Sea Systems
Manufacturer part #6005200
UPC632085600525
Boxed dimensions7 x 4 x 3 in
Shipping weight0.6 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
