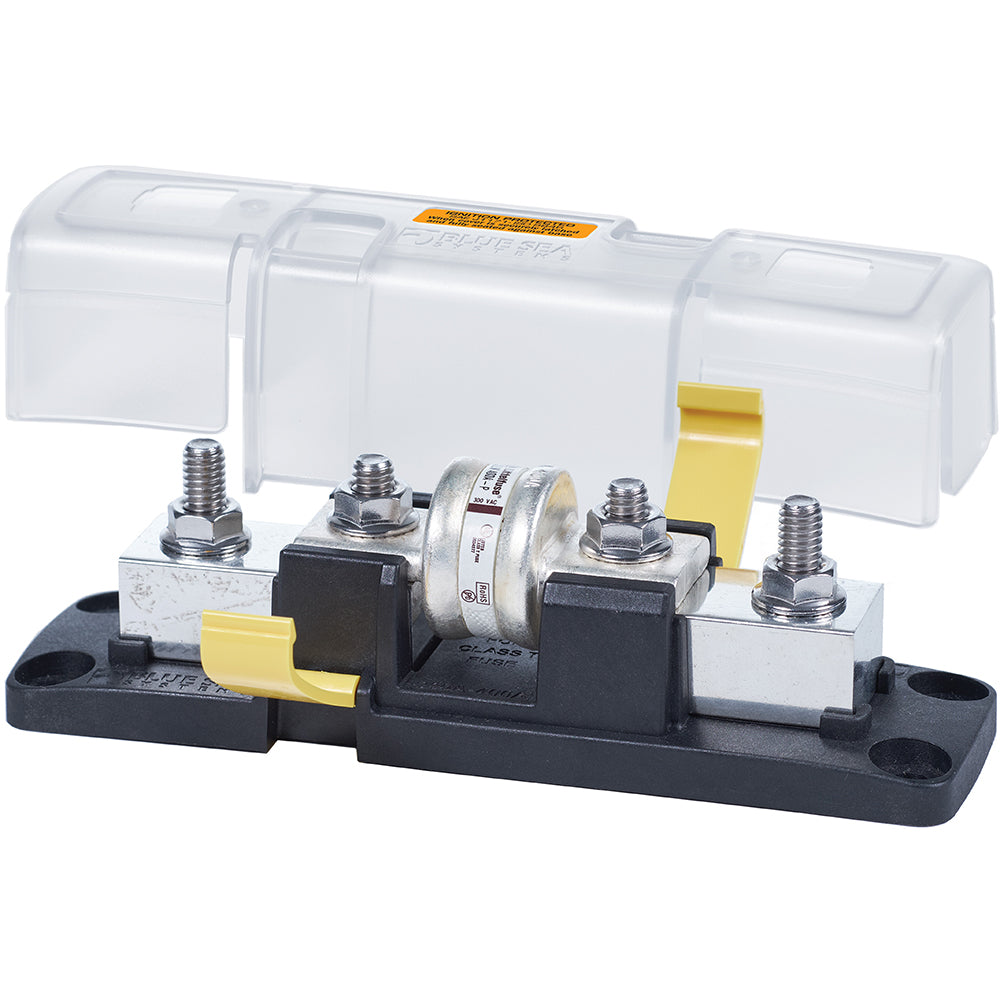

Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A

Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A

OM-BLUESEA-5502100CLASST-5502100

$92.95
$124.99 $92.95
Sale
Shipping calculated at checkout.

Low stock: 2 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Class TFuse Type
Fuse BlocksType

The Blue Sea Systems 5502100 is a Class T fuse block for high-amperage DC electrical systems using 225 to 400A Class T fuses. It is built for inverter and electronics circuit protection where large cable lugs, secure fuse mounting, and covered terminals are required.

  • Fuse type: Class T
  • Amperage range: 225 to 400A
  • Maximum amperage: 320A
  • Maximum voltage: 160V DC
  • Cable size: up to 4/0 AWG
  • Terminal stud size: 5/16"-18 (M8)
  • Ignition protected: yes
  • Terminal material: tin-plated copper fuse mounting blocks with stainless steel studs
  • Hardware: one-piece stainless flange nuts
  • Base: UL 94-V0 material for high-heat resistance
  • Cover: insulating cover with breakouts for wire entry in any direction
  • Compliance support: cover satisfies ABYC/USCG insulation requirements

Specifications

Fuse TypeClass T
TypeFuse Blocks
BrandBlue Sea Systems
Manufacturer part #5502100
UPC632085550219
Boxed dimensions8 x 8 x 3 in
Shipping weight1.8 lb
Country of originUNITED STATES
