• Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover
1 1

Blue Sea Systems

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover

OM-BLUESEA-5056100WATERRE-5056100

$46.68
$55.99 $46.68
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

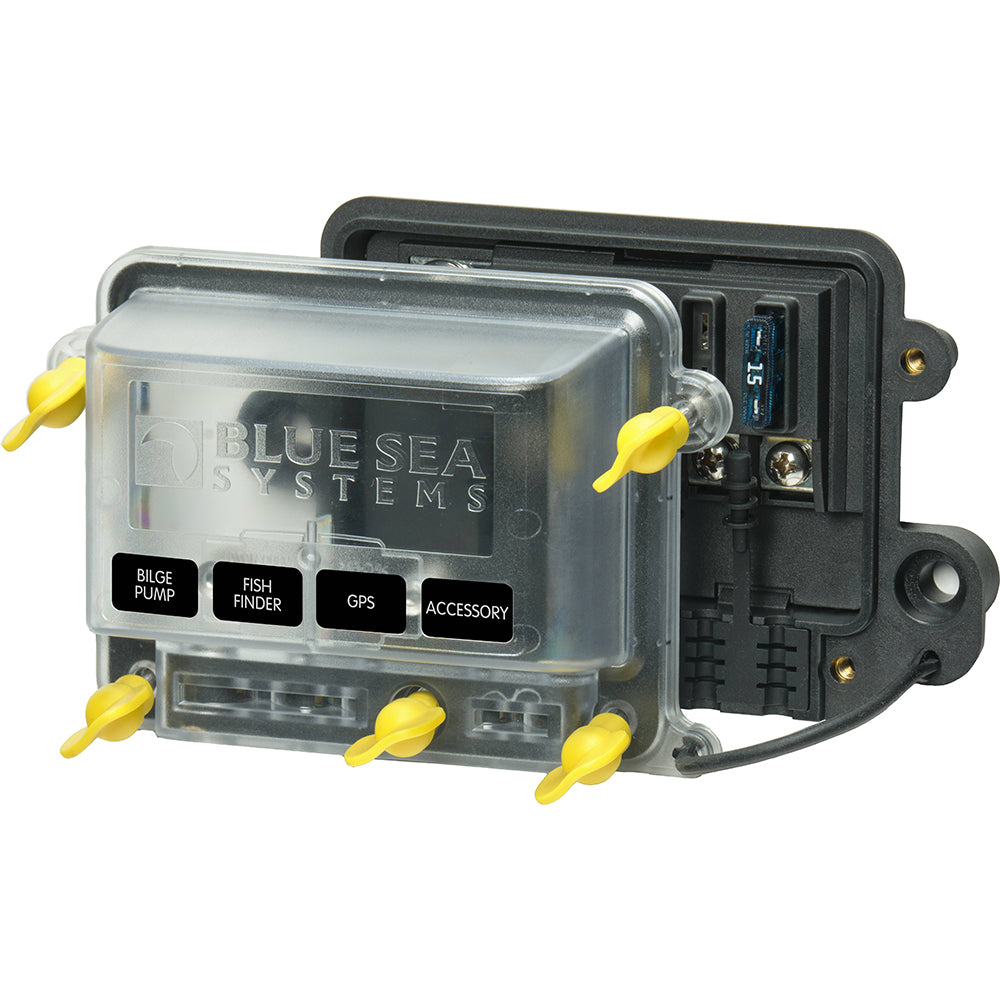

The Blue Sea Systems 5056100 is a water-resistant ST-Blade fuse block with a cover for compact DC circuit protection. It accepts ATO/ATC fuses and compatible low-profile circuit breakers, with tool-free cover access using wing screws.

  • Product type: Water-resistant ST-Blade fuse block with cover
  • Fuse compatibility: ATO and ATC fast-acting blade fuses
  • Circuit breaker compatibility: ATO/ATC-style low-profile circuit breakers
  • Maximum voltage: 32V DC
  • Cover: Included
  • Bus material: Tin-plated copper
  • Fuse clips: Tin-plated copper
  • Terminals: Standard ring or spade-type terminals
  • Mounting holes: Accepts 1/4 in (6mm) screws
  • Terminal screws: 4 x #8-32 with captive star lock washer
  • Input wire size: One 8 AWG to 4 AWG
  • Load wire size: Four 16 AWG to 10 AWG
  • Compliance: Meets ABYC/USCG insulation requirements
  • Included: 5056100 busbar, instruction manual, three wire plugs, and four write-on circuit labels
  • Cover storage: Spare fuse and fastener storage in cover
  • Sold as: Individual

Specifications

BrandBlue Sea Systems
Manufacturer part #5056100
UPC632085505615
Boxed dimensions8 x 8 x 2 in
Shipping weight0.7 lb
Country of originMEXICO
