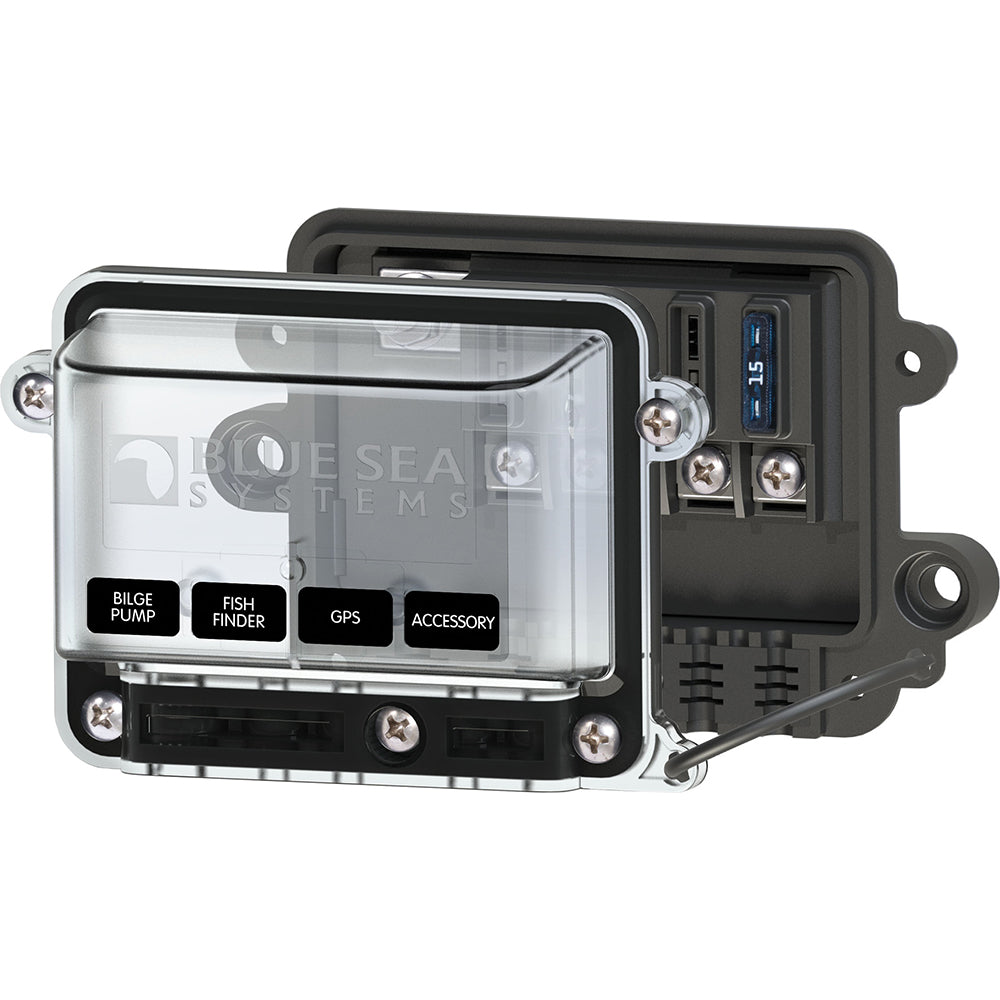

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover

OM-BLUESEA-5056STBLADE-5056

$54.19
$67.99 $54.19
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ATO/ATCFuse Type
Fuse BlocksType

The Blue Sea Systems 5056 ST-Blade fuse block provides covered, water-resistant circuit protection in a compact marine electrical layout. It accepts ATO and ATC fuses, supports one-side wire entry, and nests with matching ST-Blade water-resistant components.

  • Model: 5056 ST-Blade water resistant fuse block with cover
  • Fuse compatibility: ATO and ATC fast-acting blade fuses
  • Circuit breaker compatibility: ATO/ATC-style low profile circuit breakers
  • Amperage: 80A per block, 25A per circuit
  • Maximum voltage: 32V DC
  • Bus material: Tin-plated copper C11000
  • Terminals: #8-32 screws with captive star lock washer
  • Mounting holes: Clearance for 1/4" or 6 mm screws
  • Input wire size: 1 8 AWG to 4 AWG
  • Load wire size: 5 16 AWG to 10 AWG
  • Cover: Insulating cover meets ABYC/USCG insulation requirements
  • Included: 3 wire plugs for maintaining the water resistant rating when fewer than 4 loads are used
  • Included: Four write-on circuit labels
  • Storage: Cover includes space for spare fuse and fastener storage

Specifications

Fuse TypeATO/ATC
TypeFuse Blocks
BrandBlue Sea Systems
Manufacturer part #5056
UPC632085050566
Boxed dimensions8 x 8 x 2 in
Shipping weight0.65 lb
Country of originMEXICO
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
