Blue Sea Systems

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

OM-BLUESEA-5054STCLB-5054

$117.13
$161.99 $117.13
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

100/32aAmperage

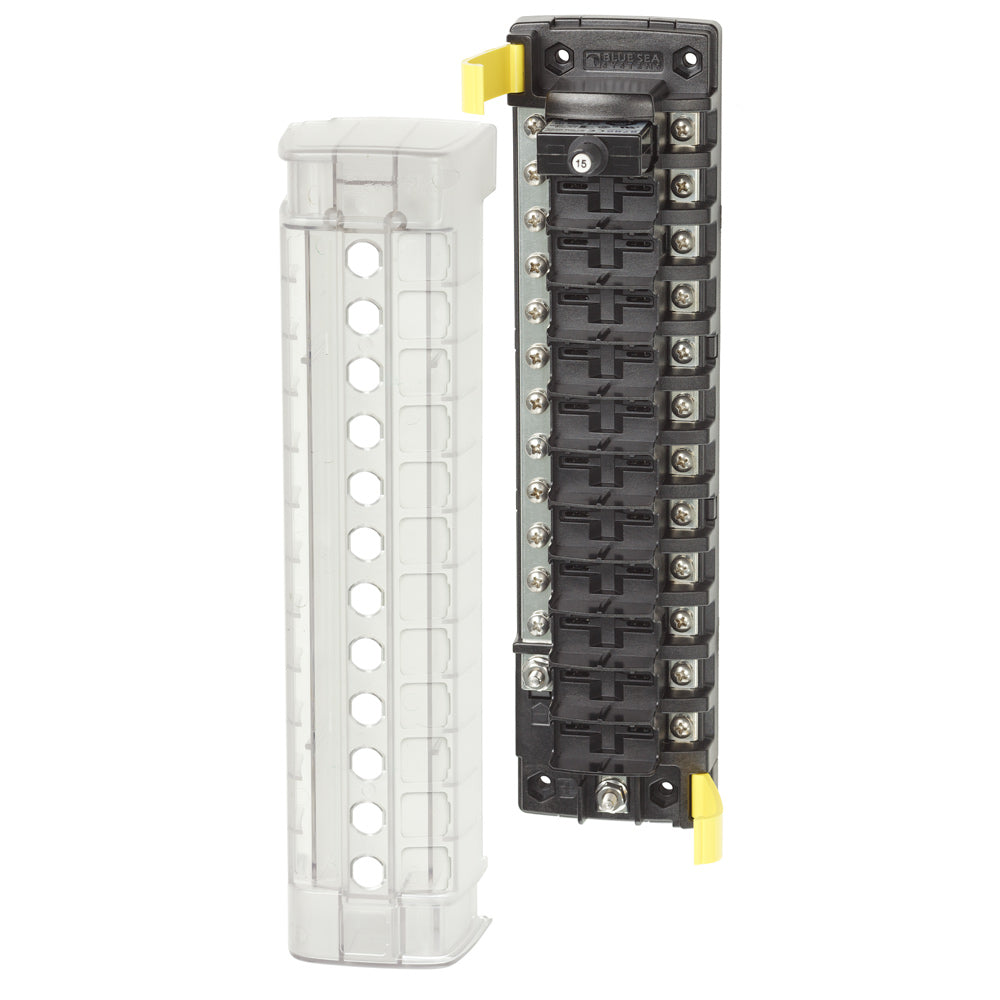

The Blue Sea Systems 5054 ST CLB block organizes up to 12 CLB circuit breaker positions and includes a negative bus for DC electrical distribution. It is built for common-source installations where breakers need secure mounting, protected terminals, and clear circuit labeling.

  • Circuits: 12
  • Maximum amperage: 100A per block; 32A per circuit
  • Maximum voltage: 32V DC
  • Negative bus: Yes
  • Source: Common source
  • Bus and terminals: Tin-plated copper busses and screw terminals
  • Breaker installation: Quick-connect clips let circuit breakers snap into place

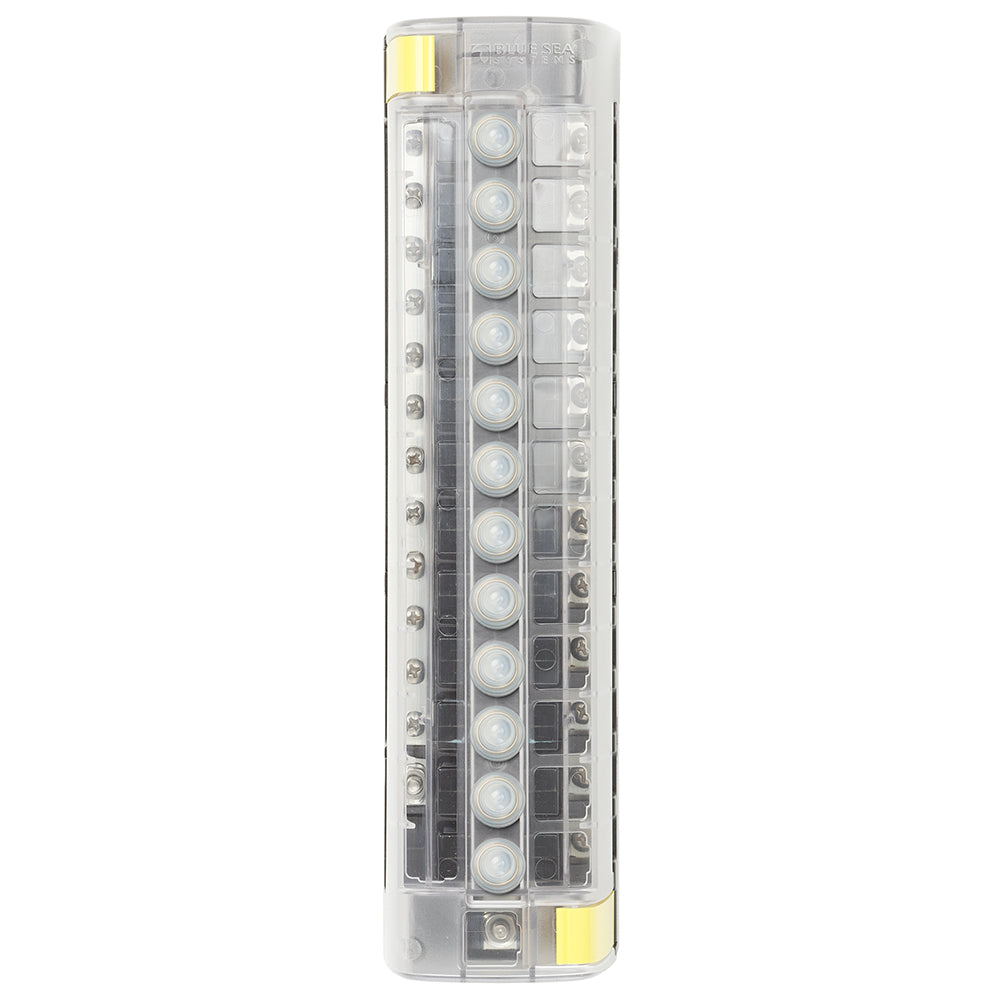

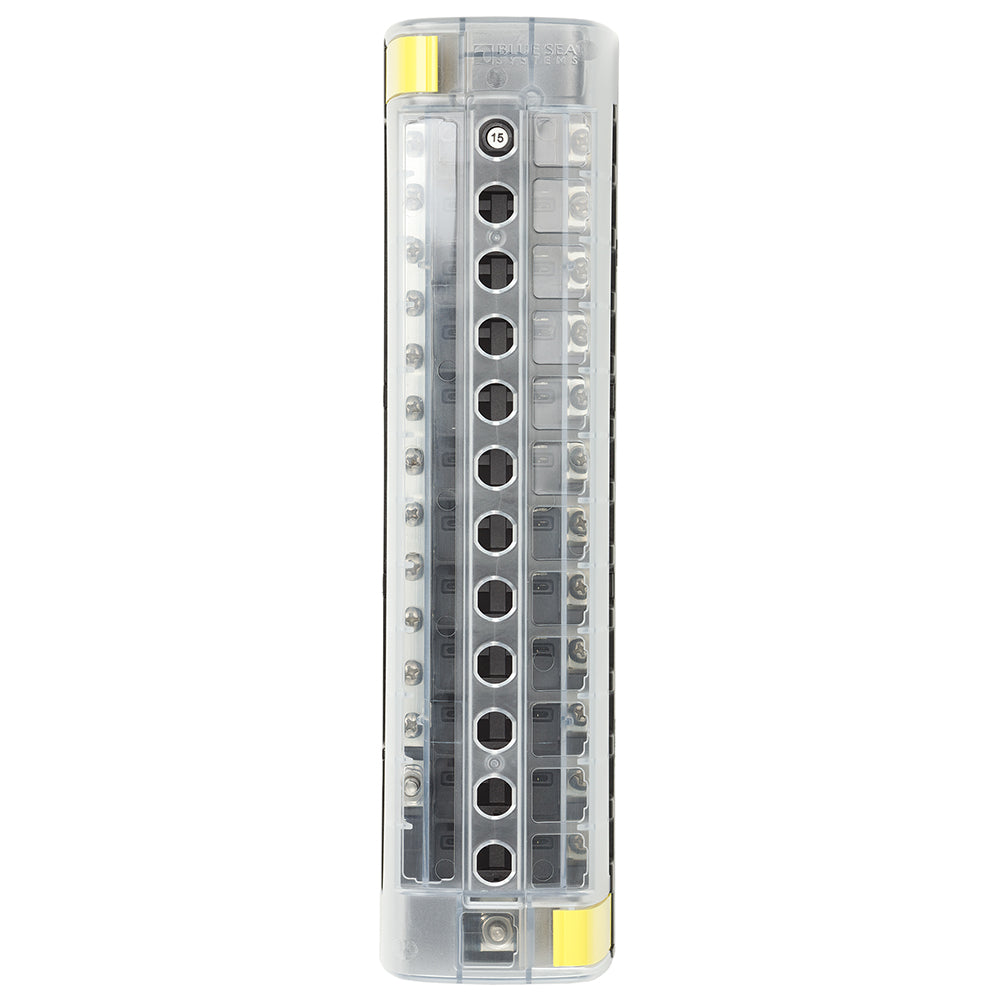

  • Cover: Clear insulating clip-on cover with square label recesses
  • Compliance: Cover satisfies ABYC/USCG insulation requirements
  • Wire access: Breakouts allow entry from two directions
  • Terminal compatibility: Accepts ring terminals
  • Optional accessories: Push button waterproof boots or dress nuts can be installed over the cover
  • Mounting: #8 screw (M4) or #8 nut
  • Mounting centers: 10.13 in. (257.3 mm)
  • Screw terminal type: #8-32 screws with captive star lock washer
  • Operating temperature: -10 C to 60 C
  • Height: 6.69 in. (169.93 mm)
  • Weight: 1.50 lb. (0.68 kg)
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Amperage100/32a
BrandBlue Sea Systems
Manufacturer part #5054
UPC632085050542
Boxed dimensions15 x 5 x 3 in
Shipping weight1.5 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Product brochurePDF ↓
