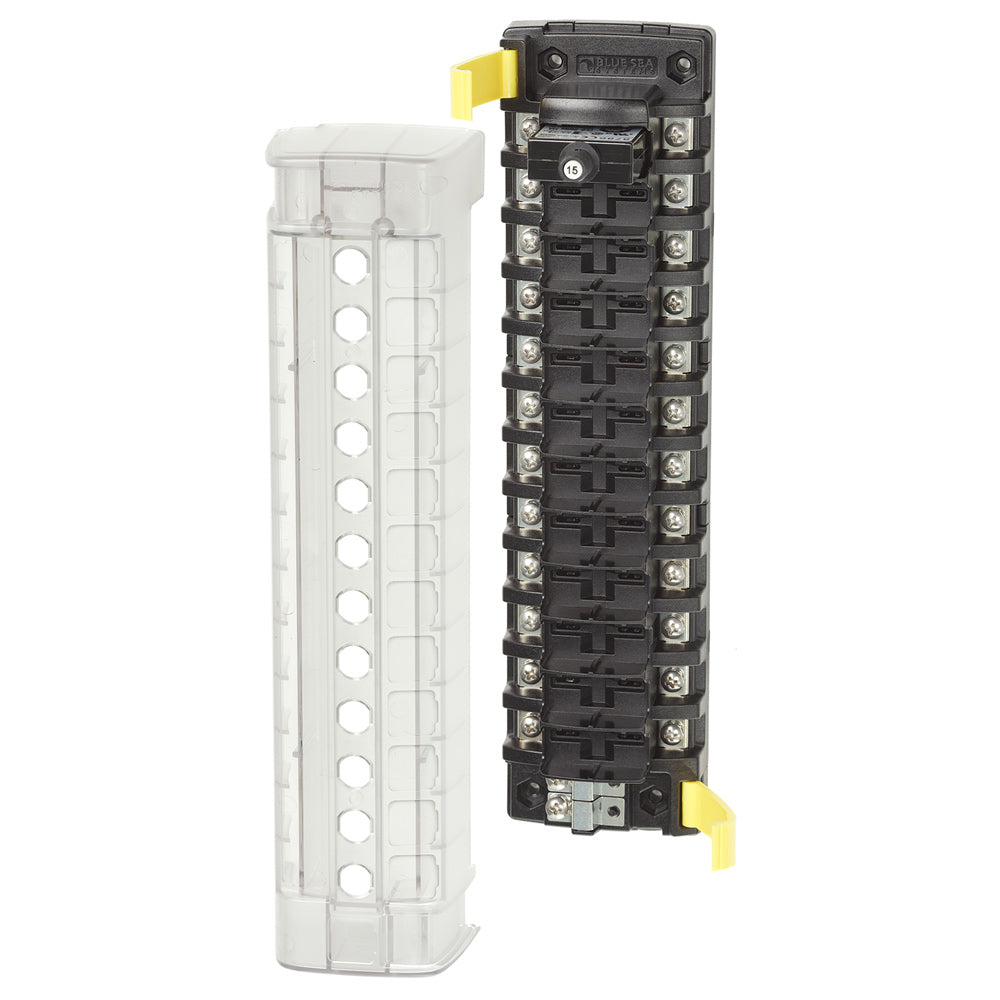

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position

The Blue Sea Systems 5051 ST CLB Circuit Breaker Block organizes up to 12 CLB circuit breaker positions for DC electrical distribution. It uses tin-plated copper busses and screw terminals, with a clear insulating cover that includes label recesses.

• Part number: 5051
• Product type: ST CLB circuit breaker block
• Positions: 12 circuits
• Maximum amperage: 32A per circuit; 40A per jumped circuit group
• Maximum voltage: 32V DC
• Source: independent source
• Bus and terminals: tin-plated copper busses and screw terminals
• Terminals: accepts ring terminals
• Breaker installation: quick connect clips let circuit breakers snap into place

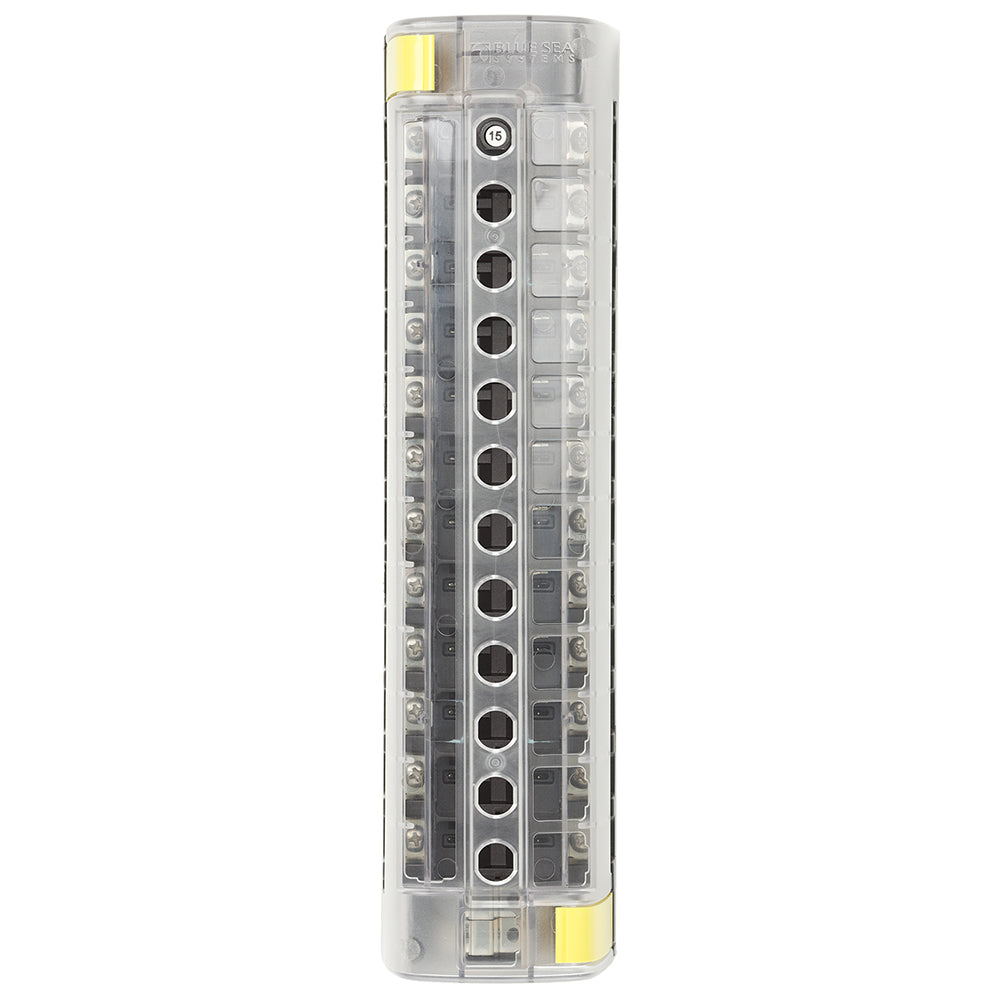

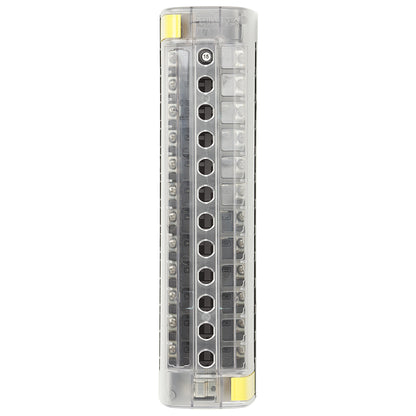

• Cover: clear clip-on insulating cover with square label recesses; satisfies ABYC/USCG insulation requirements
• Wire access: breakouts allow access in two directions
• Accessories: optional push button waterproof boots or dress nuts can be installed over the cover
• Mounting: #8 screw (M4) or #8 nut
• Mounting centers: 10.13 in. / 257.3 mm
• Screw terminal type: #8-32 screws with captive star lock washer
• Operating temperature: -10 C to 60 C
• Height: 6.69 in. / 169.93 mm
• Weight: 1.50 lb. / 0.68 kg
