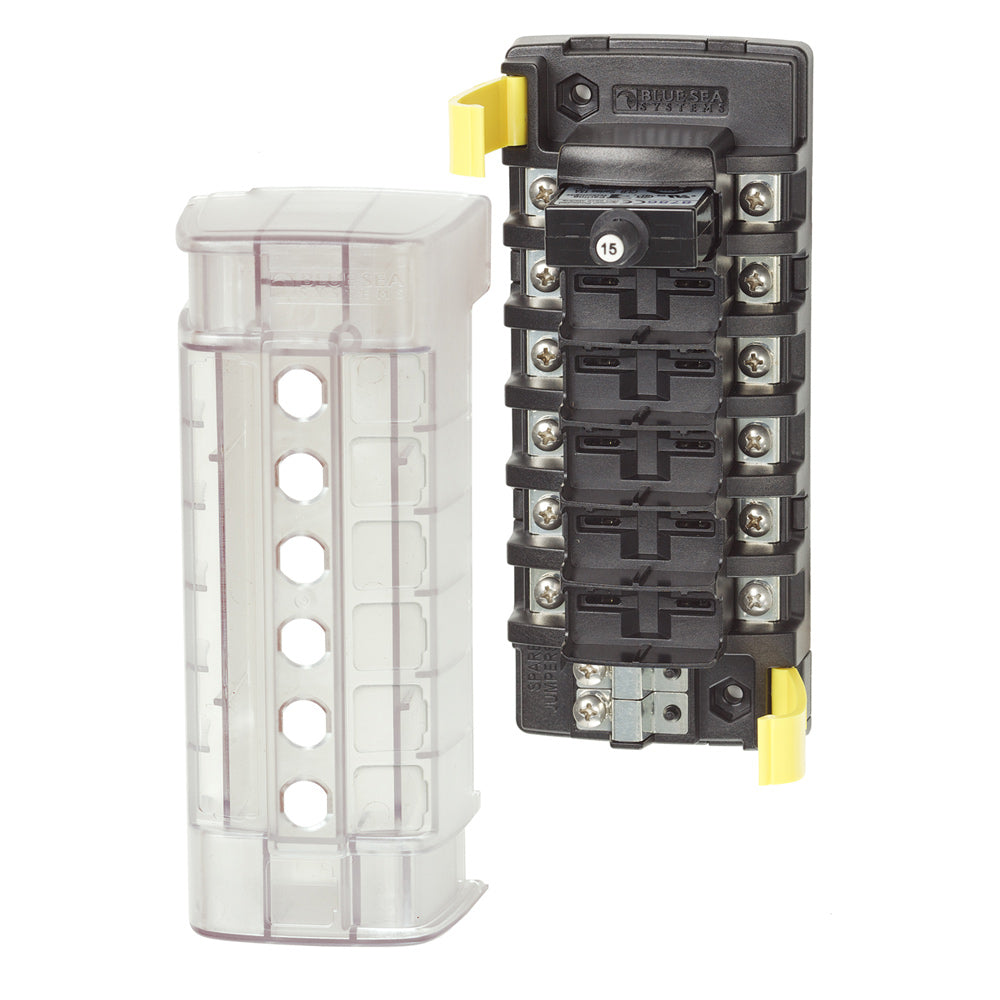

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position

The Blue Sea Systems 5050 ST CLB Circuit Breaker Block organizes up to six DC circuits in a compact marine electrical panel component. It uses tin-plated copper busses and screw terminals, with a clear insulating cover for protected access and labeling.

• Brand: Blue Sea Systems
• Model: 5050 ST CLB Circuit Breaker Block
• Positions: 6
• Circuits: 6
• Maximum amperage: 32A per circuit; 40A per jumped circuit group
• Maximum voltage: 32V DC
• Source: Independent source
• Mounting: #8 screw (M4) or #8 nut
• Mounting centers: 5.63" (143 mm)
• Terminal type: #8-32 screws with captive star lock washer
• Height: 6.69" (169.93 mm)
• Weight: 0.75 lb (0.34 kg)
• Operating temperature: -10°C minimum to 60°C maximum

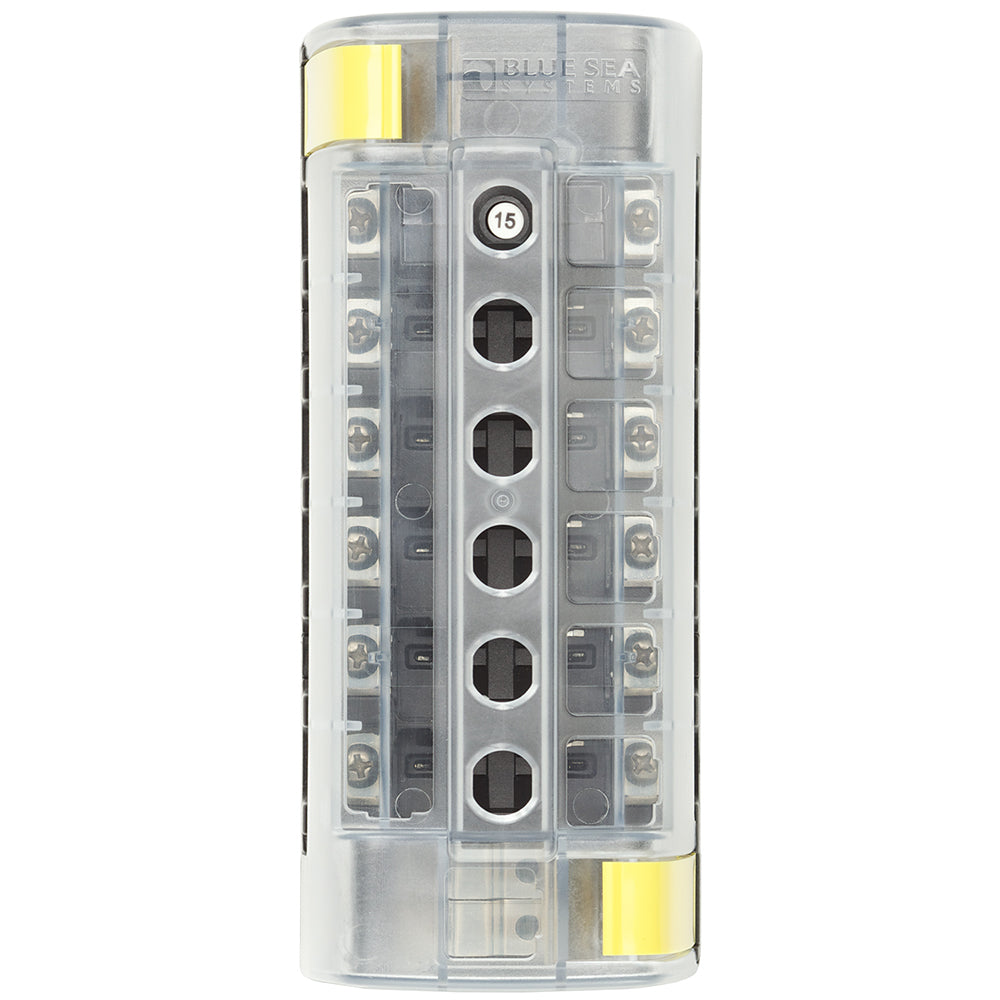

• Cover: Clear insulating clip-on cover with square label recesses
• Compliance: Cover satisfies ABYC/USCG insulation requirements
• Connections: Quick-connect clips for circuit breakers and ring terminal acceptance
• Wire access: Breakouts allow routing from two directions
• Options: Accepts optional push button waterproof boots or dress nuts over the cover
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
