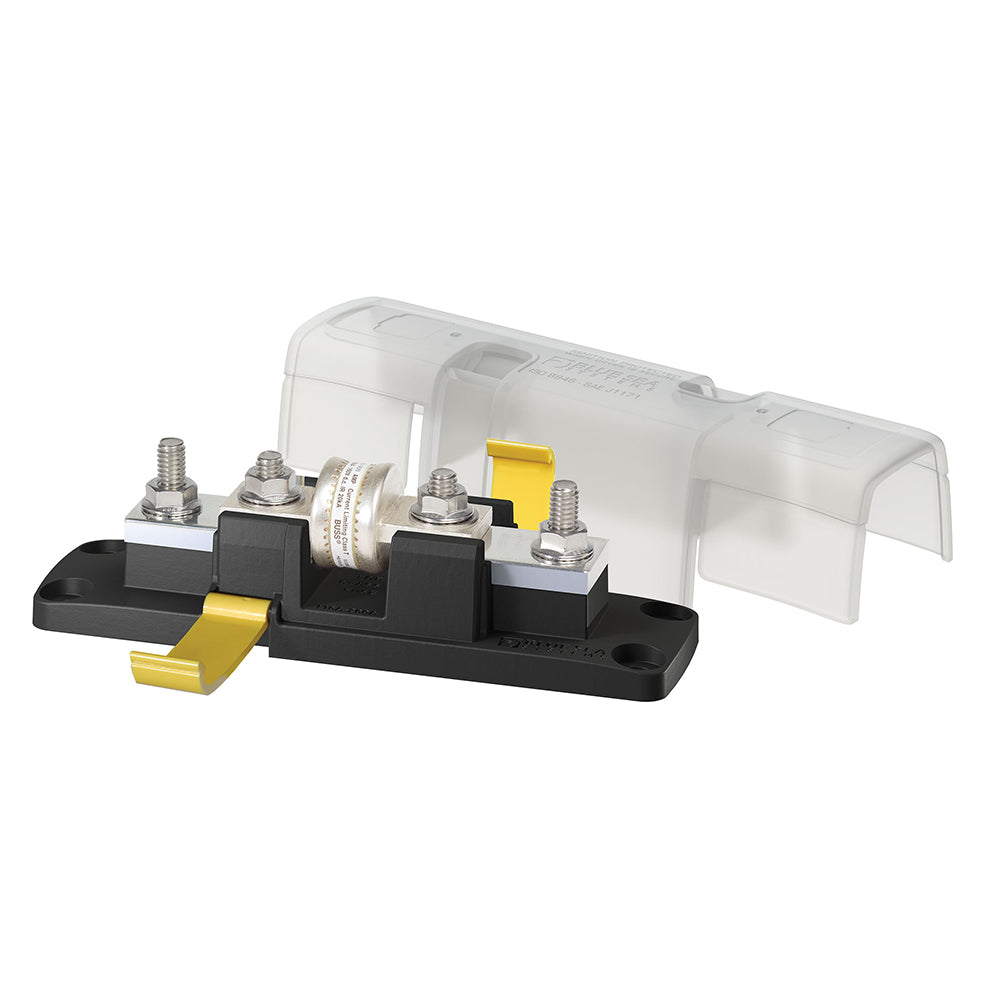

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A

OM-BLUESEA-5007100CLASST-5007100

$75.24
$99.99 $75.24
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Class TFuse Type
Fuse BlocksType

The Blue Sea Systems 5007100 Class T Fuse Block is a covered fuse block for fast acting DC circuit protection with Class T fuses. It is built for inverters and other electronics, with a four-stud layout, insulating cover, and hardware intended for secure high-amperage connections.

  • Part number: 5007100
  • Fuse type: Class T
  • Amperage range: 110 to 200A
  • Maximum amperage: 200A
  • Maximum voltage: 160V DC
  • Cable size: Up to 4/0 AWG
  • Terminal stud size: 5/16"-18 (M8)
  • Fuse mounting block: Tin-plated copper
  • Ignition protected: Yes
  • Cover: Insulating cover with breakouts for wire access in any direction
  • Compliance: Cover satisfies ABYC/USCG insulation requirements
  • Hardware: Stainless steel studs and one-piece stainless flange nuts
  • Base: UL 94-V0 base resists high heat
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Fuse TypeClass T
TypeFuse Blocks
BrandBlue Sea Systems
Manufacturer part #5007100
UPC632085500719
Boxed dimensions9 x 8 x 3 in
Shipping weight1.2 lb
Country of originUNITED STATES
