• Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
  • 51816
1 2

Blue Sea Systems

Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position

Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position

OM-BLUESEA-4309WEATHERDEC-4309

$99.21
$143.99 $99.21
Sale
Shipping calculated at checkout.

Low stock: 2 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

DCAC/DC
8Max Breaker Quantity
WaterproofWaterproof
12/24vVoltage

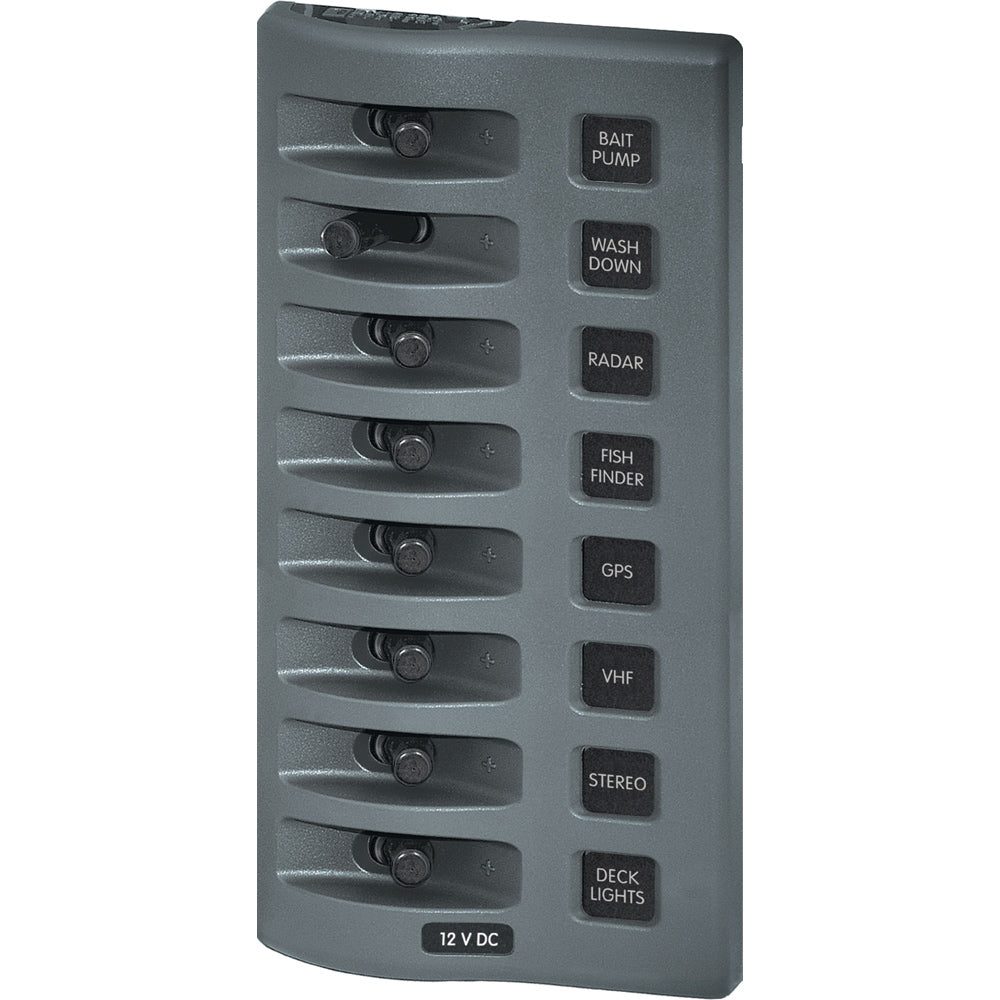

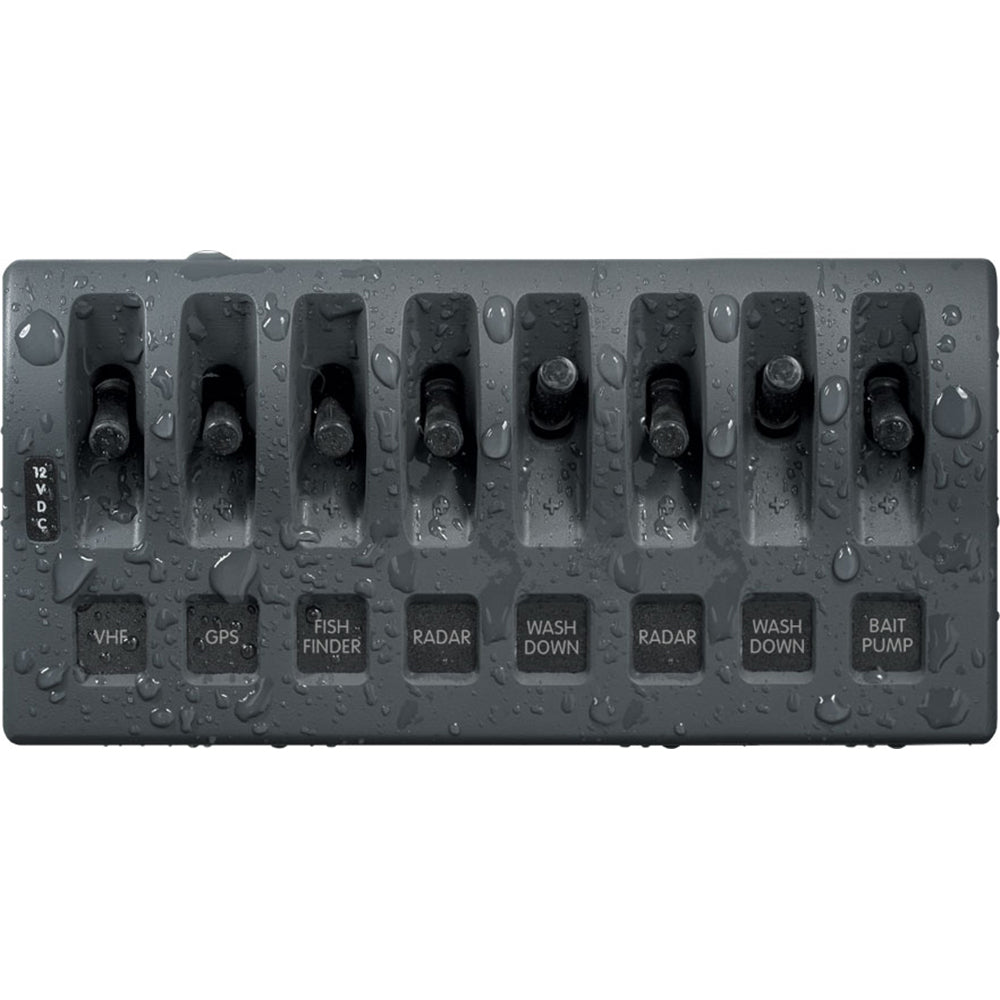

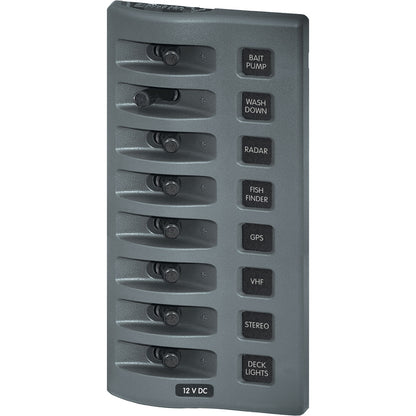

The Blue Sea Systems 4309 WeatherDeck switch panel provides eight waterproof switching positions for 12V DC or 24V DC marine electrical circuits. It is designed for exposed installations where a gasketed, weather-resistant panel face and protected switch layout are needed.

  • Part number: 4309
  • Positions: 8
  • Nominal voltage: 12V DC/24V DC
  • Circuit protection: None
  • Maximum amperage: 15A @ 12V DC per circuit
  • Panel cumulative rating: 45A
  • Weatherproof rating: Waterproof
  • Panel front rating: IP67 when properly mounted with watertight mounting gasket
  • Material: Reinforced polycarbonate
  • Faceplate: UV stabilized, weather-resistant, removable faceplate conceals mounting screws and allows component access
  • Mounting: Can be installed in four orientations
  • Switch guards: Integrated guards reduce accidental switching
  • Dimensions: 7.70 in H x 3.88 in W x 2.50 in D (195.58 mm x 98.55 mm x 63.5 mm)
  • Weight: 1.55 lb (0.7 kg)
  • California Prop 65: Can expose users to di(2-ethylhexyl)phthalate (DEHP)

Specifications

AC/DCDC
Max Breaker Quantity8
WaterproofWaterproof
Voltage12/24v
BrandBlue Sea Systems
Manufacturer part #4309
UPC632085043094
Boxed dimensions10 x 6 x 4 in
Shipping weight1.2 lb
Country of originUNITED STATES
