• Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel - 8 Position - Grey
1 1

Blue Sea Systems

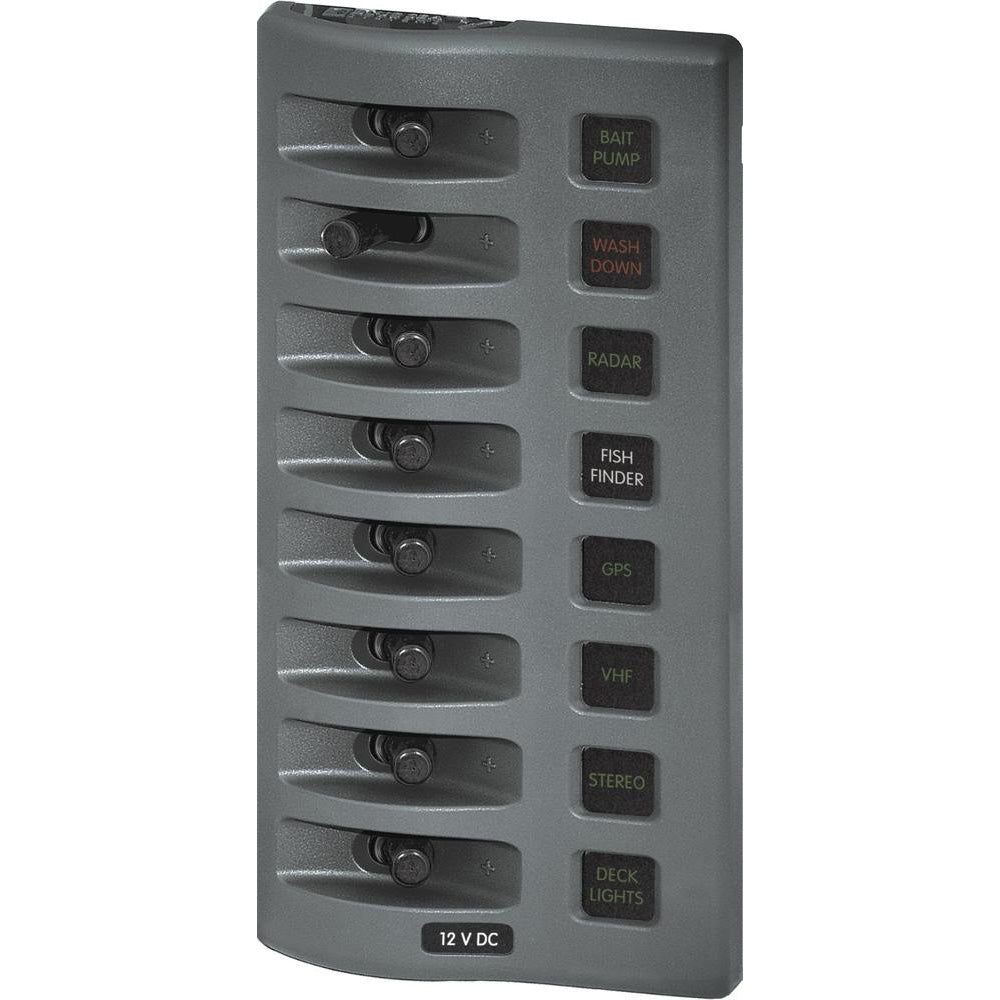

Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel - 8 Position - Grey

Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel - 8 Position - Grey

OM-BLUESEA-4308WEATHERDEC-4308

$157.14
$235.99 $157.14
Sale
Shipping calculated at checkout.

Low stock: 2 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

WaterproofWaterproof
DCAC/DC
8Max Breaker Quantity
12vVoltage

The Blue Sea Systems 4308 WeatherDeck fuse panel is an 8-position, water resistant DC panel for exposed marine locations such as flybridges and open cockpits. It combines ATO/ATC fuse protection, toggle switches, and bicolored label lighting in a gray panel.

  • Brand: Blue Sea Systems
  • Part number: 4308
  • Color: Gray
  • Positions: 8
  • Nominal voltage: 12v DC
  • Circuit protection: ATO/ATC fuse based
  • Maximum amperage: 15A @ 12v DC per circuit
  • Panel cumulative rating: 100A
  • Weather rating: Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 detail: Protected against immersion up to 1 meter for 30 minutes
  • Backlighting: Bicolored LED label backlighting, 10mA per illuminated circuit, 12v DC
  • Indicator colors: Red for OFF, green for ON, and no color for blown circuits
  • Mounting: Panel can be installed in four orientations
  • Dimensions: 7.7 inches high x 3.88 inches wide x 2.5 inches deep
  • Included: Eight 4138 black toggle switch boots, eight 4150 SPST ON-OFF toggle switches, one 4215 waterproof DC label kit with 30 black square labels V1, and eight 5242 15 amp ATO/ATC fuses

Specifications

WaterproofWaterproof
AC/DCDC
Max Breaker Quantity8
Voltage12v
BrandBlue Sea Systems
Manufacturer part #4308
UPC632085043087
Boxed dimensions10 x 6 x 5 in
Shipping weight1.5 lb
Country of originUNITED STATES
