• Blue Sea 4307 WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position
1 1

Blue Sea Systems

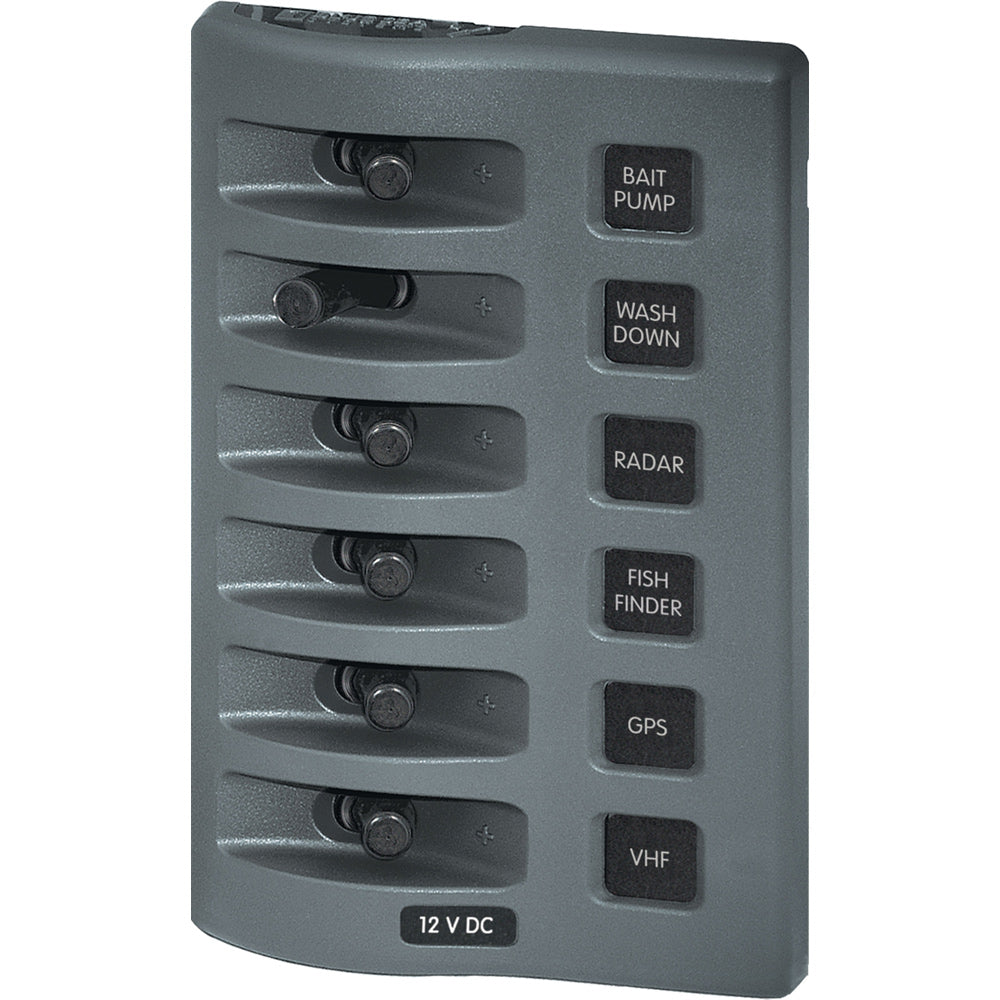

Blue Sea 4307 WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position

Blue Sea 4307 WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position

OM-BLUESEA-4307WEATHERDEC-4307

$68.39
$94.99 $68.39
Sale
Shipping calculated at checkout.

Low stock: 2 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12/24vVoltage
DCAC/DC
6Max Breaker Quantity
WaterproofWaterproof

The Blue Sea Systems 4307 WeatherDeck panel is a waterproof 6-position switch panel for 12V or 24V DC boat circuits. It has an IP67-rated front when properly mounted with the watertight gasket, plus switch guards and a removable faceplate for service access.

  • Part number: 4307
  • Product: WeatherDeck waterproof switch panel
  • Positions: 6
  • Nominal voltage: 12V DC and 24V DC
  • Circuit protection: None
  • Maximum amperage: 15A at 12V DC per circuit
  • Panel cumulative rating: 45A
  • Material: Reinforced polycarbonate
  • Waterproof rating: Panel front rated IP67 when properly mounted with watertight mounting gasket
  • Faceplate: UV stabilized, weather-resistant and removable
  • Mounting: Can be mounted in four orientations
  • Dimensions: 6.00 inches high x 3.88 inches wide x 2.50 inches deep
  • Metric dimensions: 152.4 mm high x 98.55 mm wide x 63.5 mm deep
  • Weight: 1.15 lb or 0.52 kg
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate DEHP, known to the State of California to cause cancer, birth defects or other reproductive harm

Specifications

Voltage12/24v
AC/DCDC
Max Breaker Quantity6
WaterproofWaterproof
BrandBlue Sea Systems
Manufacturer part #4307
UPC632085043070
Boxed dimensions9 x 6 x 4 in
Shipping weight0.9 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Owner's manualPDF ↓
